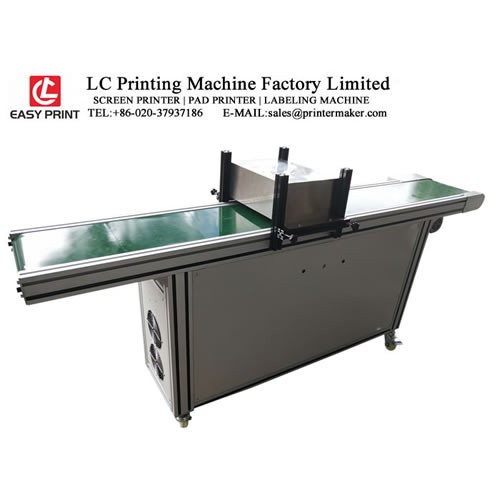

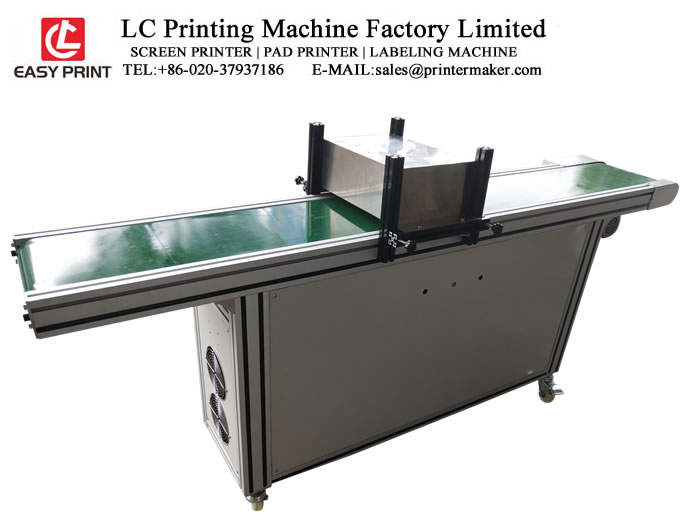

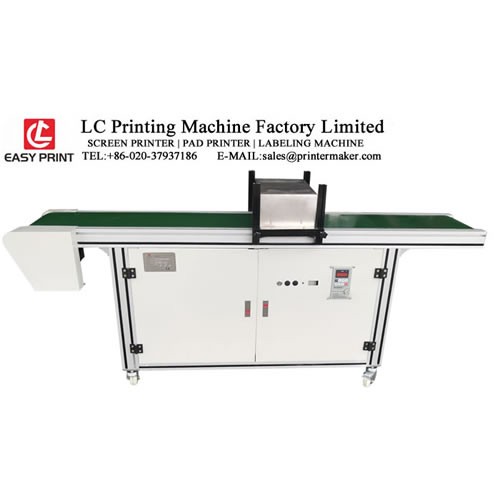

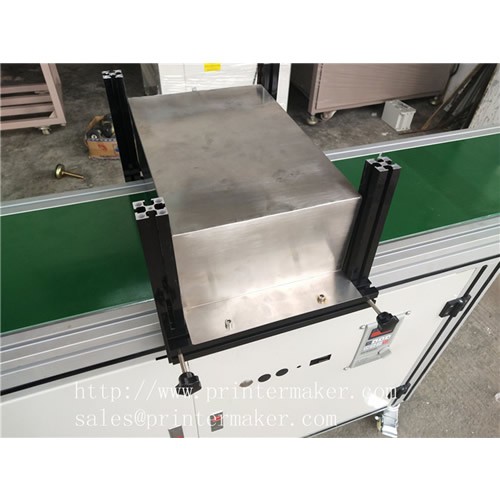

LED UV Curing Machine

Product name:LED UV Curing Machine

Model Number: UV-LED

LED UV Curing Machine ,LED UV Curing System, Flat LED UV Curing Equipment
Newest Technology Low Power Save 95% Electricity 395nm led uv curing system
Application
this is a new products,new  Technology, main for LED UV ink curing, low power,save 95%  Electricity than normal type UV curing machine(12KW), led uv curing machine power just have 400W per 10cm curing width !!! for example, 1meter curing width, total power is 4Kw.
At the same time, this UV LED have a very long using life time,more than 25000 hour.
Tip: We can manufacture according to customer’s requirement.we can do any curing width, pls advise the max curing width you need !
Specification
Maximum Curing Width: 100mm / 200mm / 300mm / 400mm － 2000mm (opitional)
Power: 400W / 10CM / group
Wavelength: 395nm
Irradiation height: 2-10mm
Irradiation power: 400-2500mw / cm2
LED life: 25000-30000Hour  more

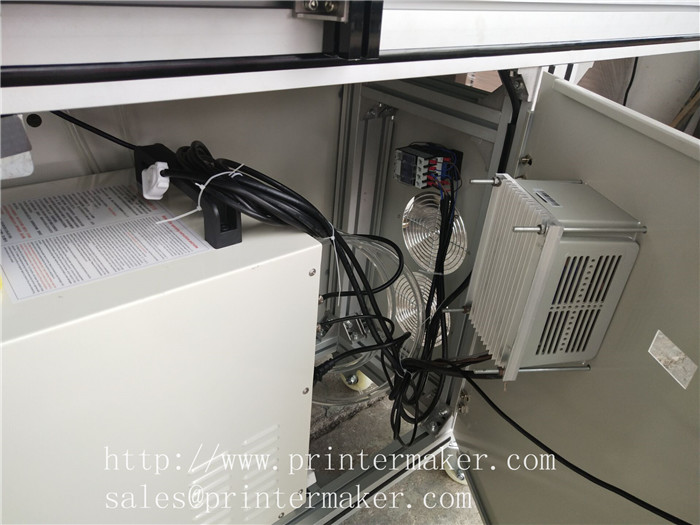

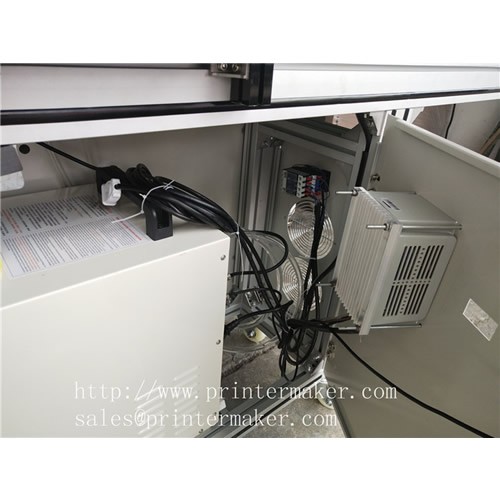

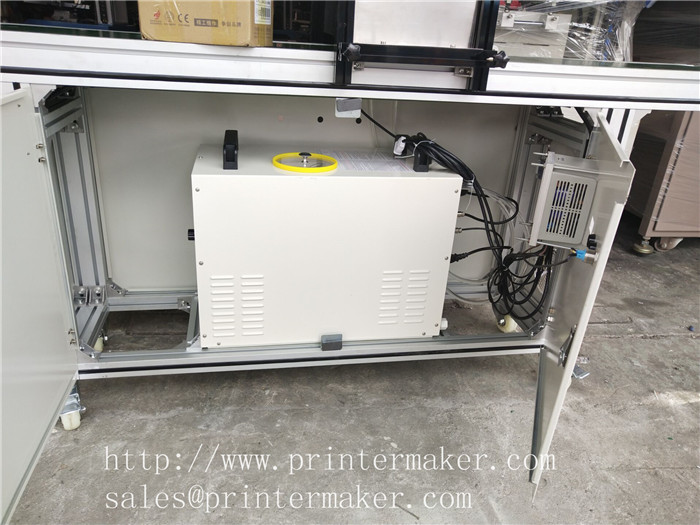

Cooling: water-cooled
Power: 110 / 220V    50/60Hz

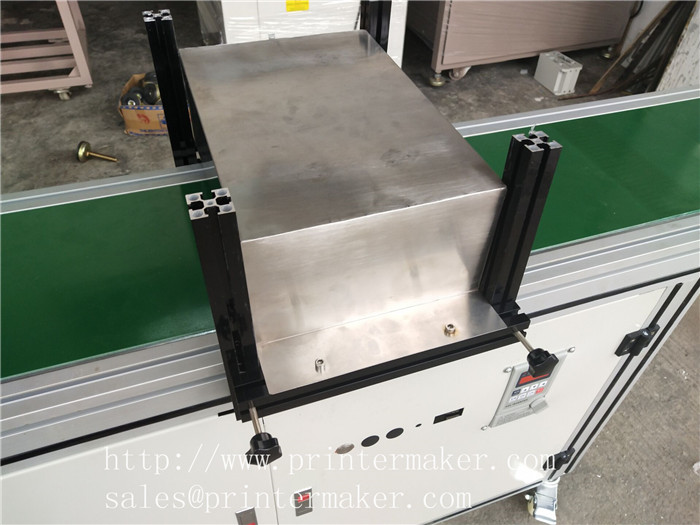

Irradiated area: 100 * 28mm / group
Curing area:  100mm －2000mm (opitional)  x  28mm   when conveyer belt stop
Size L * W * H: customized
Size irradiated area can be customized.
Size, irradiated area can be customized.

We Can manufacture allording to customer requirements

 Advantages of LED Curing:

1: Drying is perfect cleaner,
2: Much longer lamp lifespan for at least 2 years.
3: No require additional connections for ozone evacuation.
