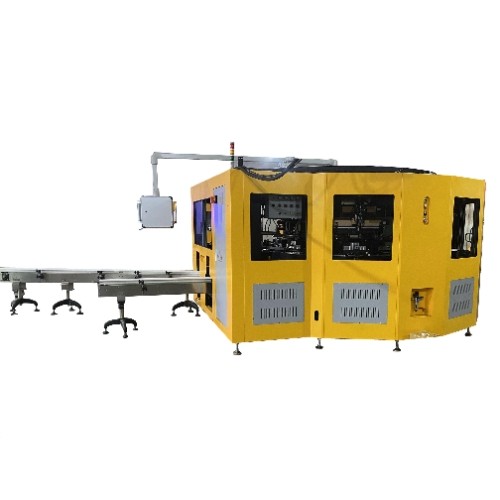

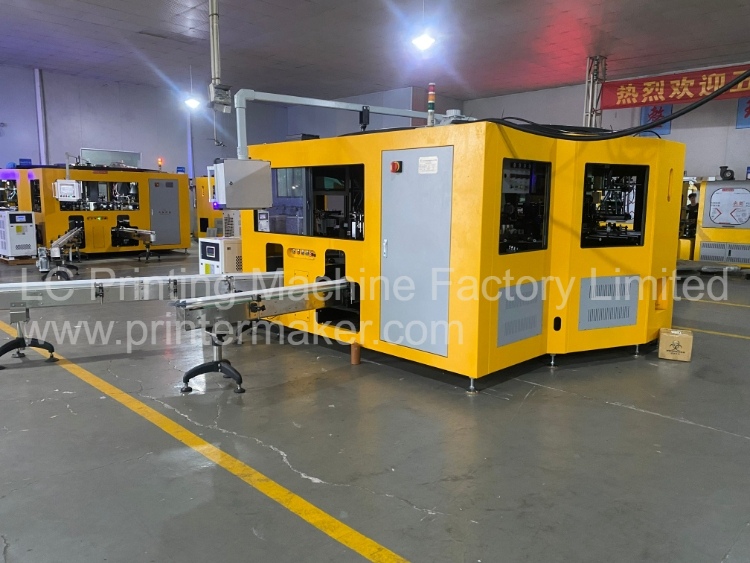

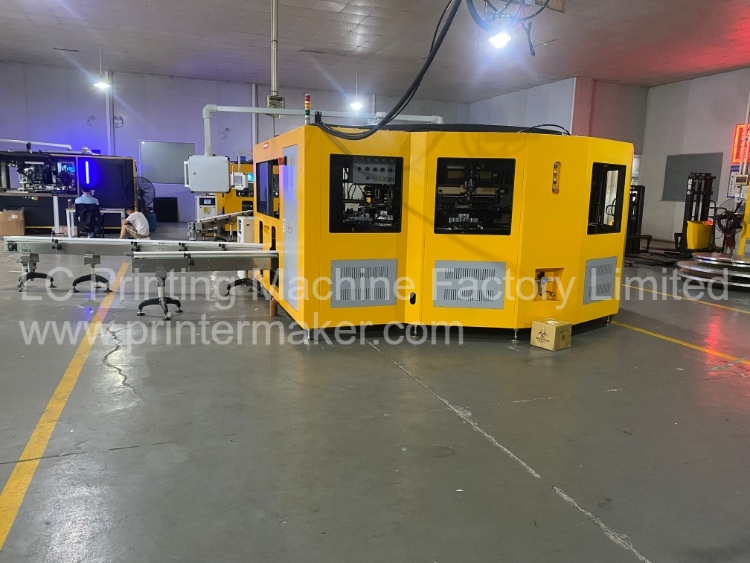

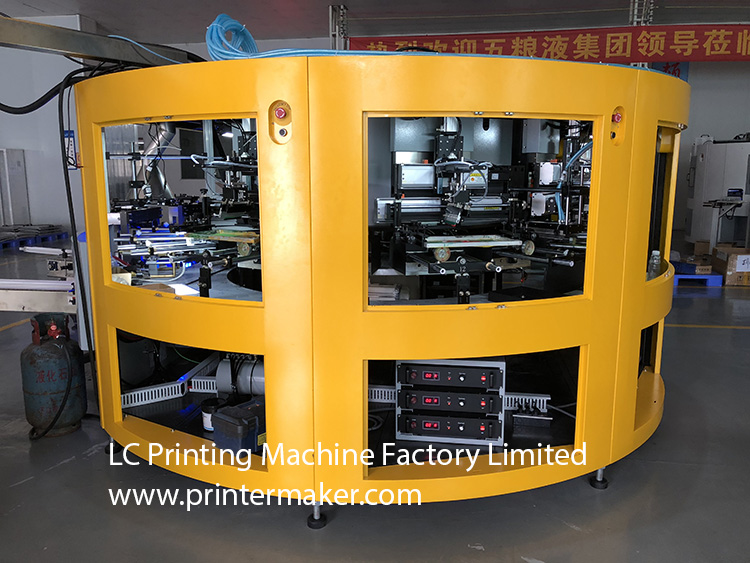

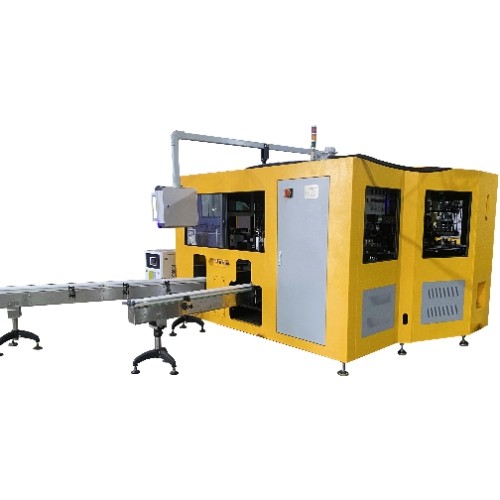

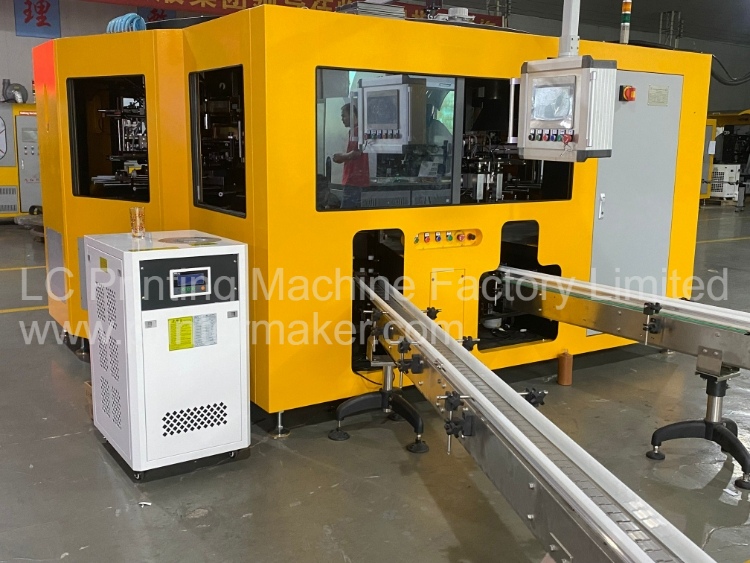

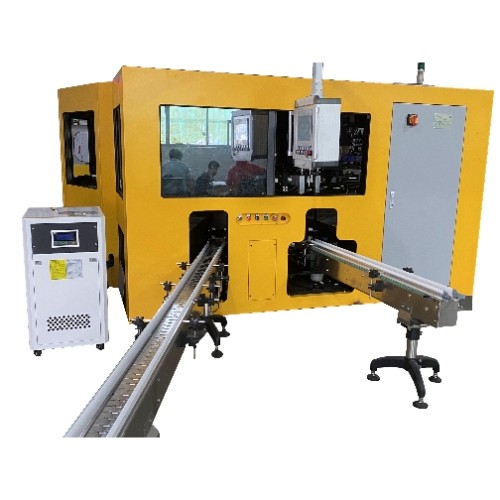

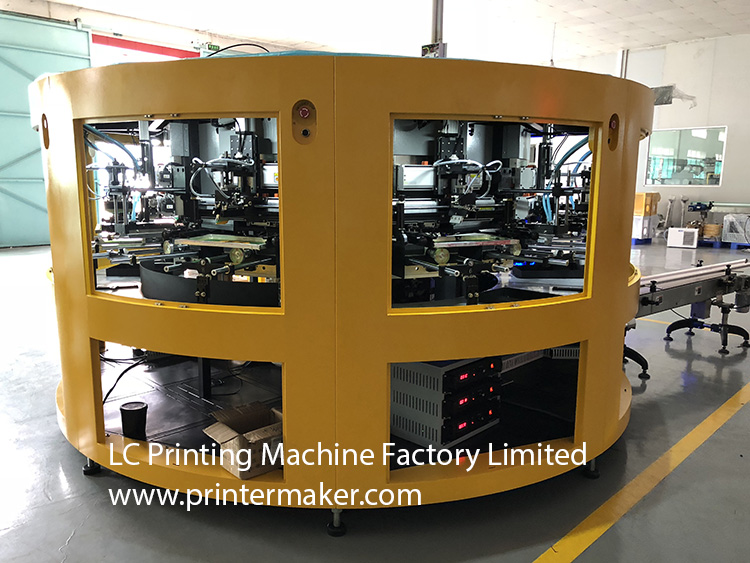

6 Color Automatic UV Glass Bottle Screen Printing Machine

Product name:6 Color Automatic UV Glass Bottle Screen Printing Machine

Model Number: SGL-106

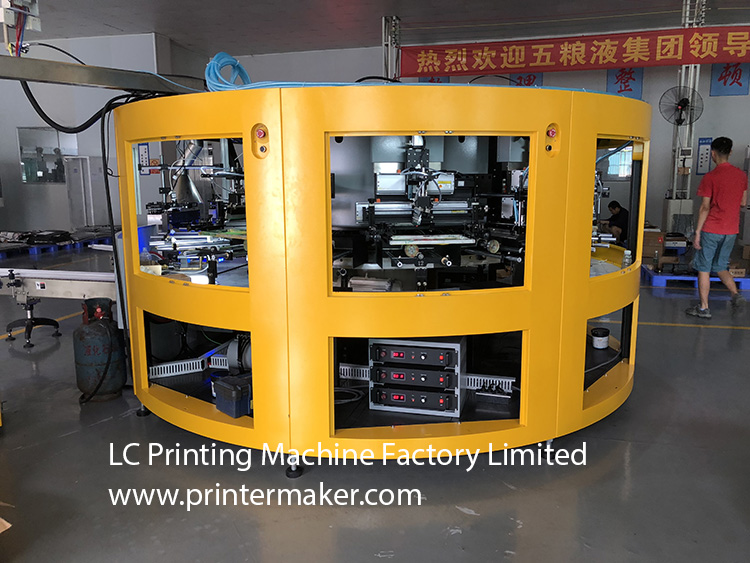

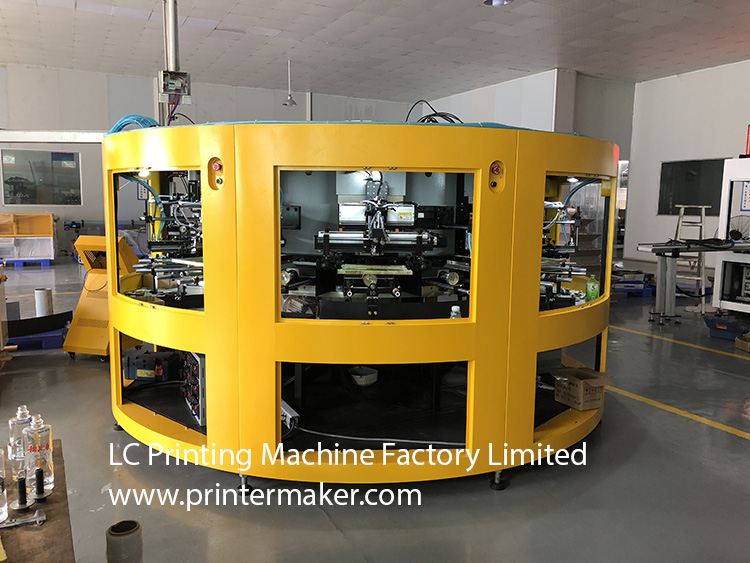

6 Color Automatic UV Glass Bottle Screen Printing Machine
Product Name: 6 Color Automatic UV Glass Bottle Screen Printing Machine
Model: SGL-106

Glass Bottle Sccreen Printing Machine

Applications:

6 Color Automatic UV Glass Bottle Screen Printing Machine can print all shapes of glass containers.
It can decorate container with or without ramp which is for Color registration. It is suitable for glass bottle ,
glass cups, glass containers,glass jars etc printing with thermoplastic ink,UV ink or LED ink.
The CNC screen printer is controlled by high accurateindexer,fully servo driven system.Vision system and
mechanical registration optional.
Mostly used for wine bottles printing. It can print any shape of containers,jars, cups  all around at one time printing.

Glass Bottle Sccreen Printing Machine

Features:

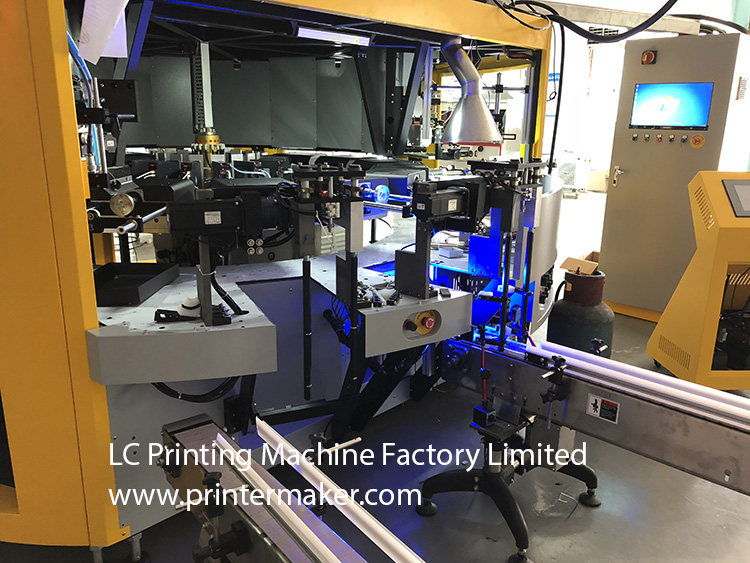

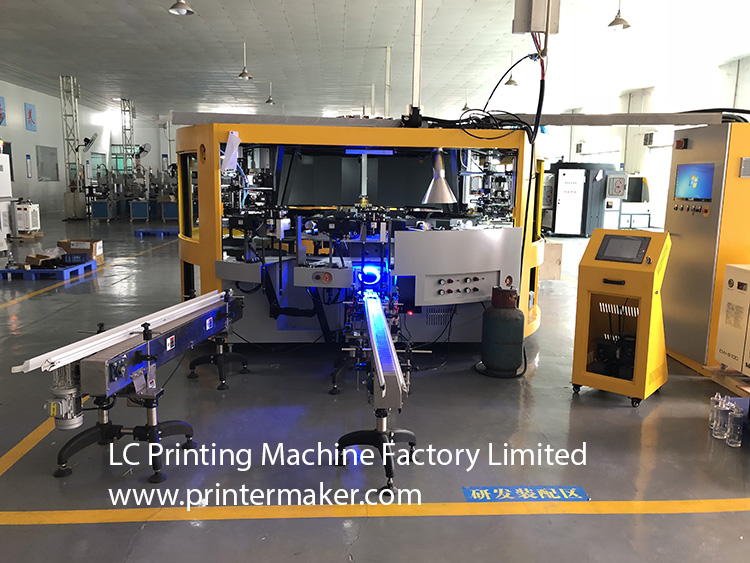

1.Automatic loading and unloading system

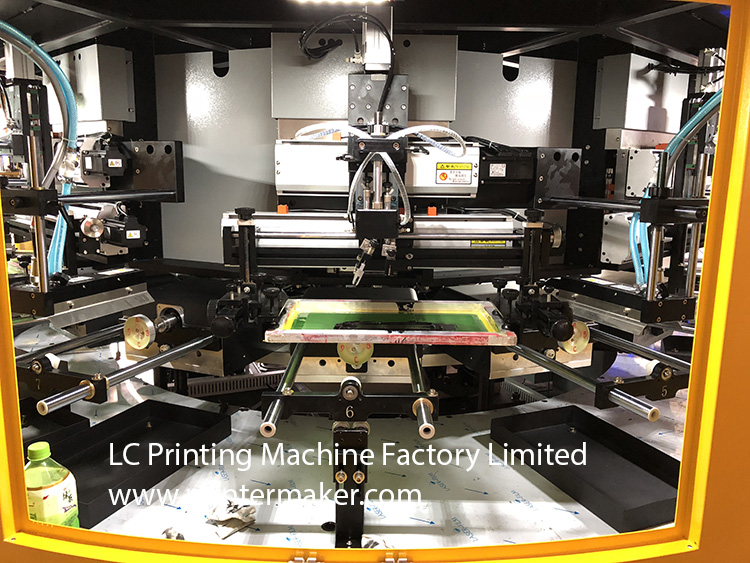

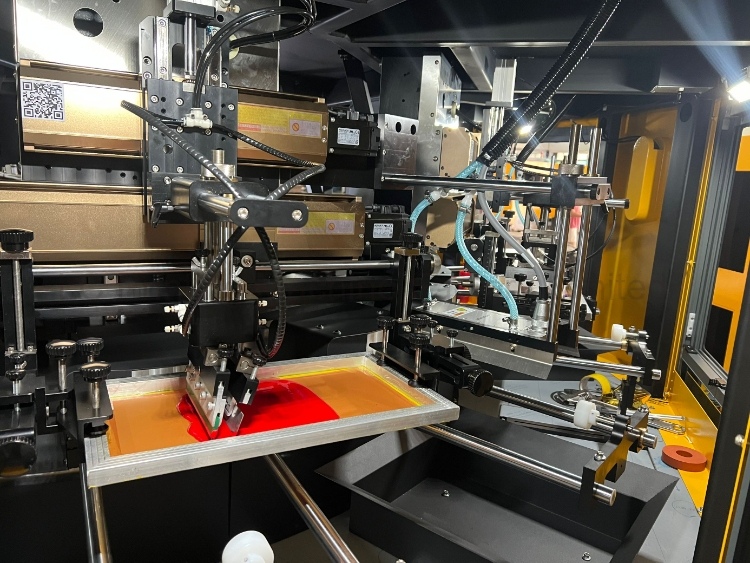

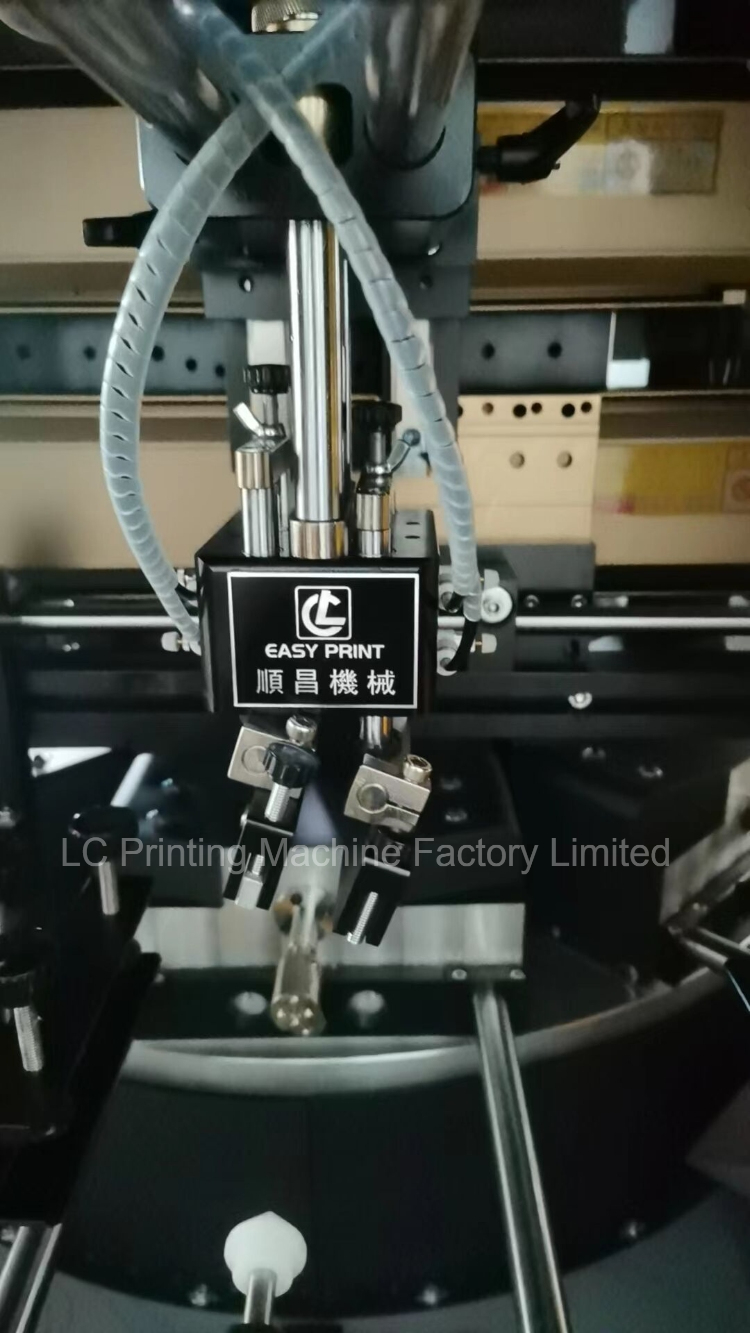

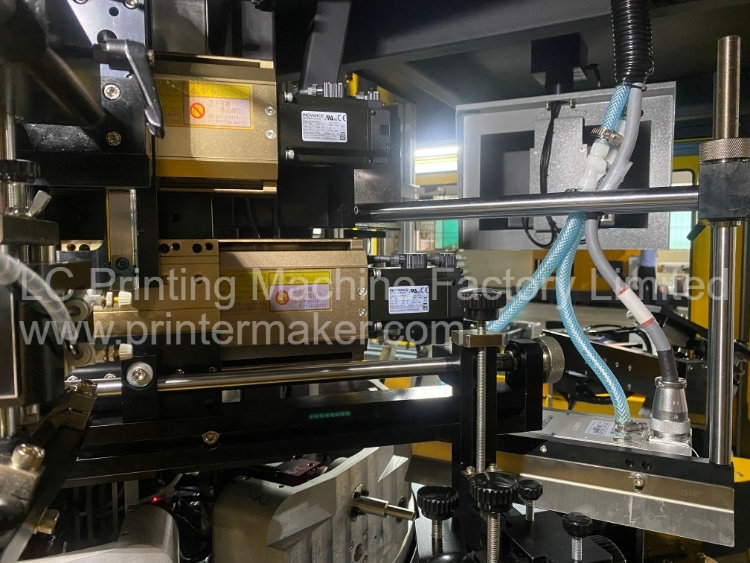

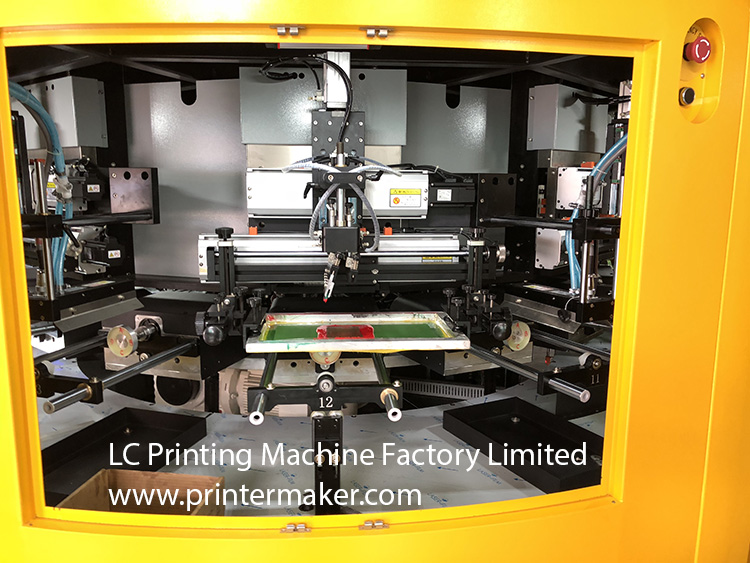

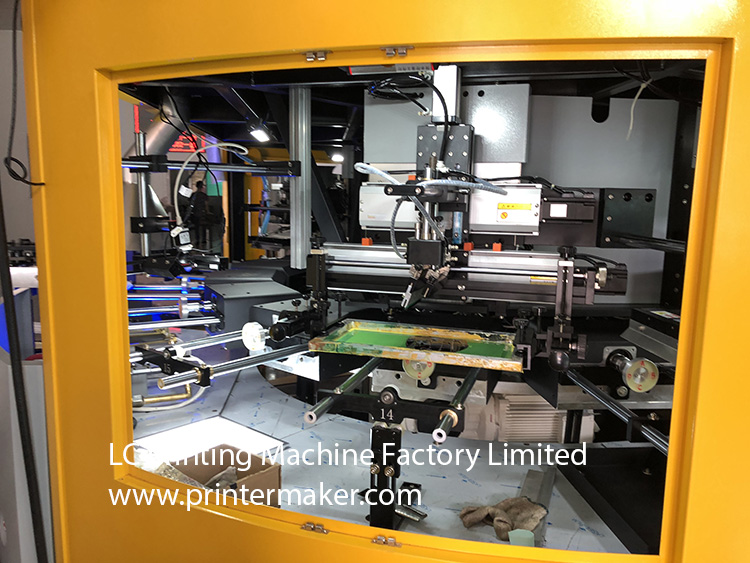

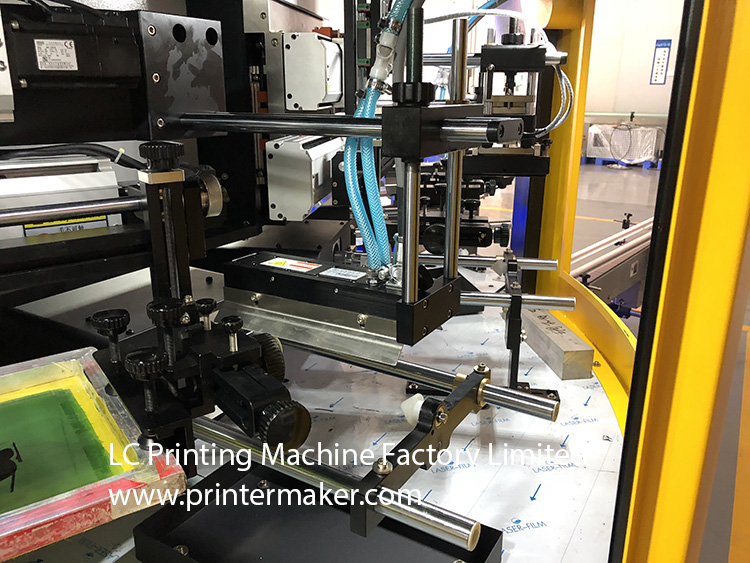

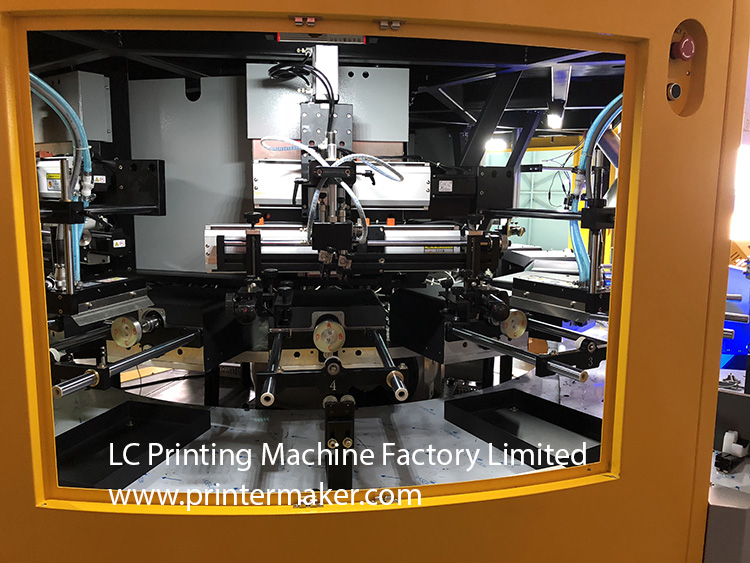

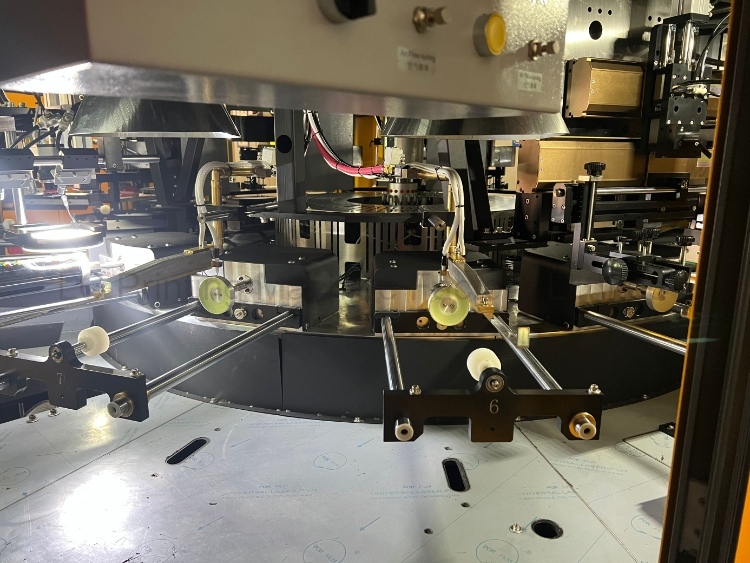

2.Automatic printing system with all servo driven: printing head,mesh frame,rotation,container up/down
all driven by servo motors.

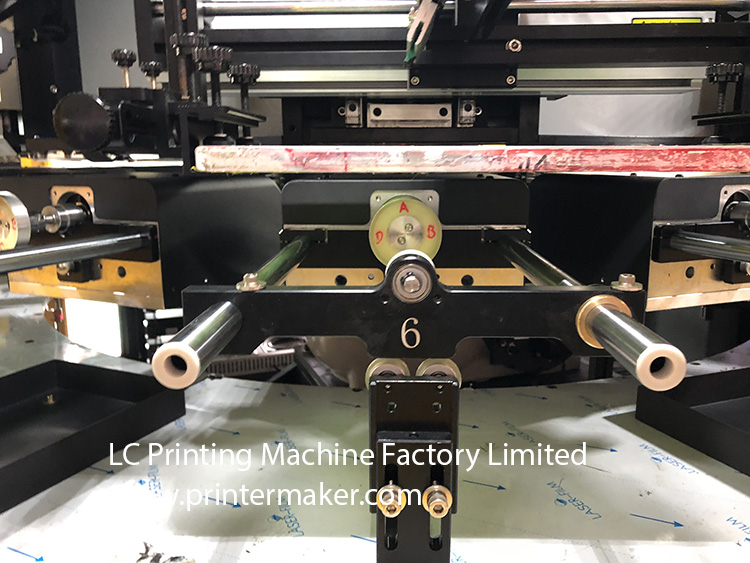

3.All tooling with individual servo motor driven for rotation

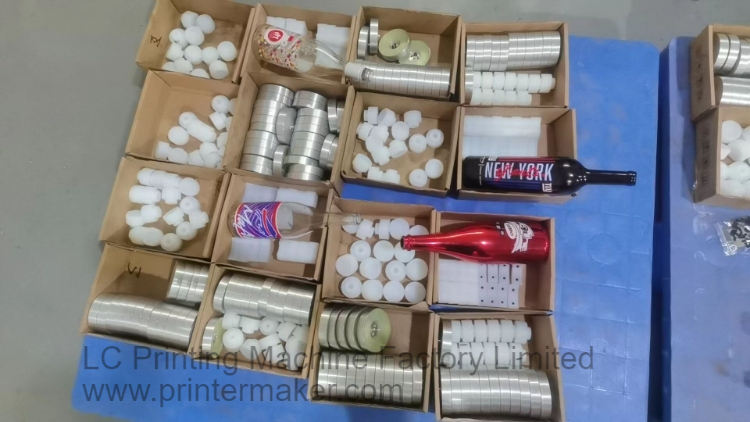

4.Fast tooling changeover time, All parameters automatic setting by touch screen. .

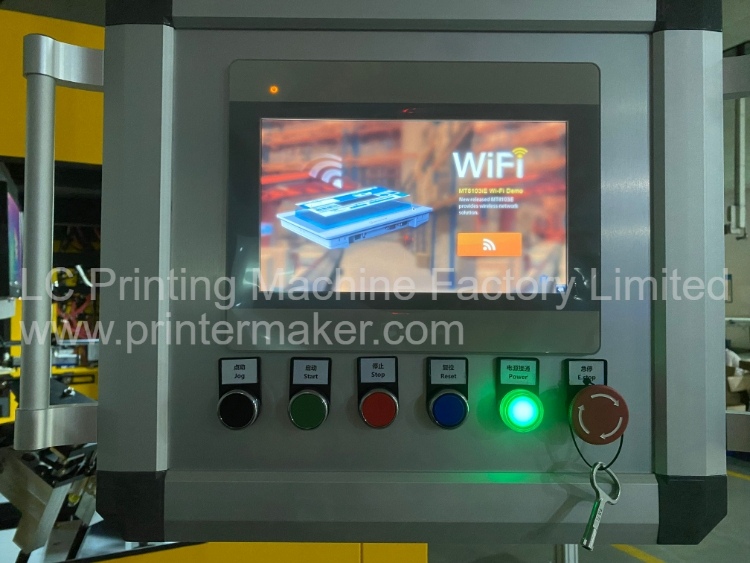

5.PLC control & touch screen operation system, it is available for future
maintenance and   program upgrading by romote controlling.
6.Safety operation with CE
Glass Bottle Sccreen Printing Machine Options:

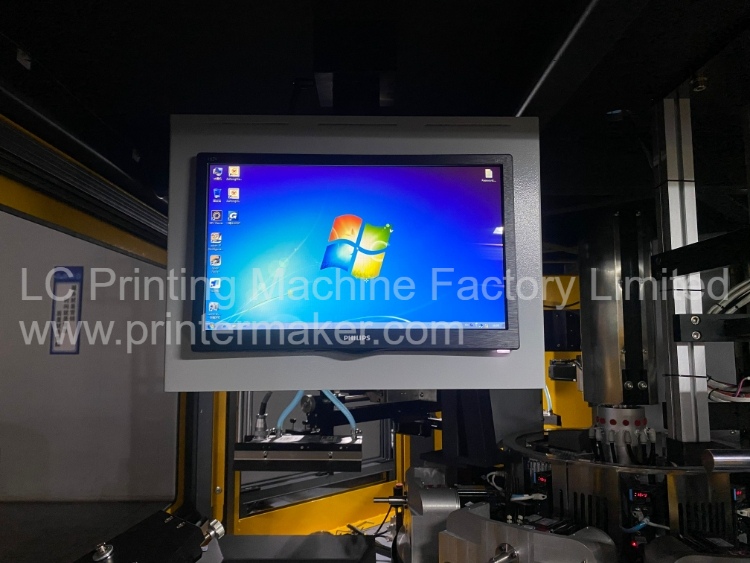

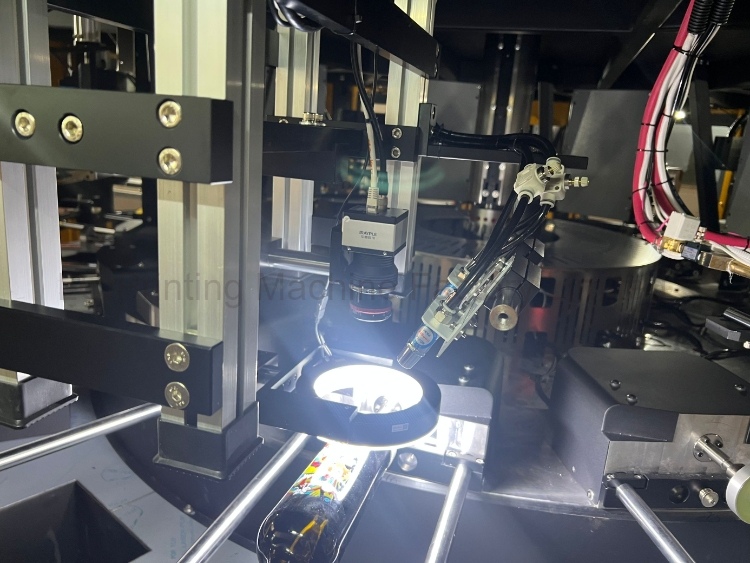

1.Camera vision system to check the mold line for cylindrical bottles, to avoid printing on the line
2.Flame treatment system for best adhesion on glass for UV ink printing

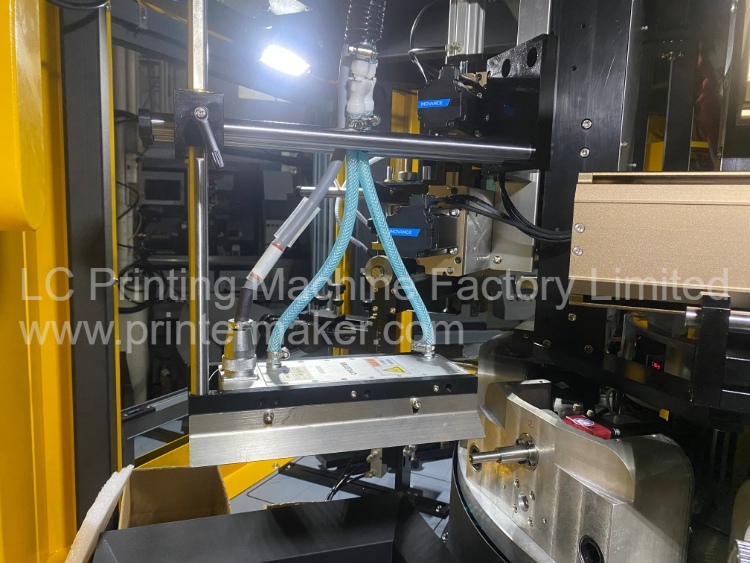

3.Electrode UV system from Europe for SGL-03 to SGL-05 colors machine. SGL-06-08 can only be
equipped with heating system for thermo plastic ink due to the packing size.
Glass Bottle Sccreen Printing Machine Parameters:
1:Max.Printing size: Round bottle: φ30mm--φ100mm 
Square bottle width:25-100mm
Bottle height: 25-330mm
2:Printing Speed: 1800-3000pcs/Hour
3.Air Pressure: 0.6-0.7 Mpa
4.Net Weight: 6000Kg
5.Power: 380V 50Hz 30Kw
6.Machine Size: φ4000mm*2200mm(height)

|
