Large Power Portable UV Curing Equipment

Product name:Large Power Portable UV Curing Equipment

Model Number: Mini-UV-3000W

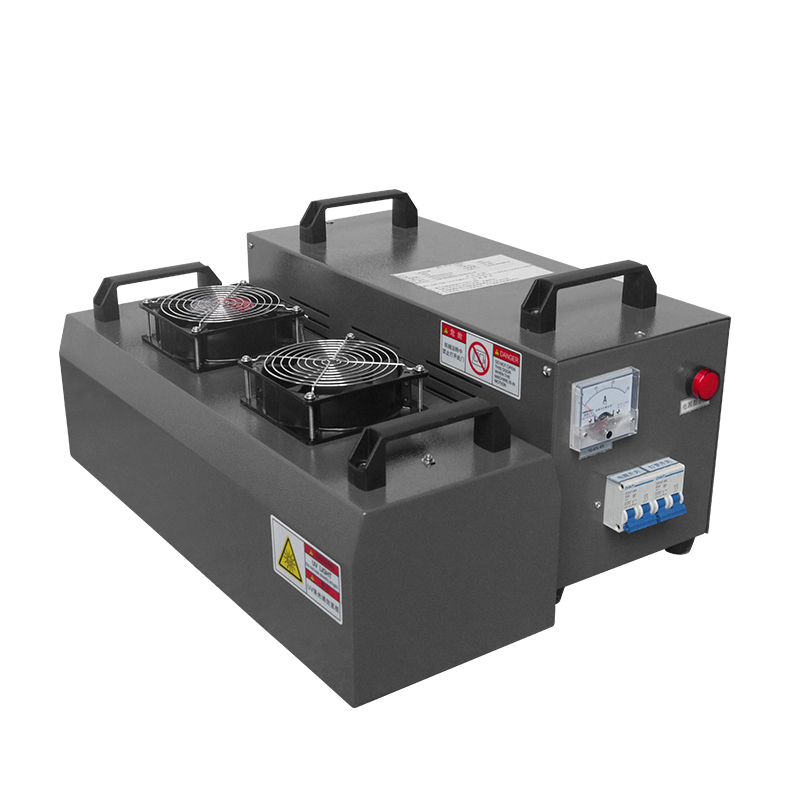

Large Power Portable UV Curing Equipment
It can widely use to screen printing flame making , large size product UV printing curing . etc.
Specification
Power: 380V/3PH  Or 220V/1PH  50/60Hz
UV lamp power: 3000W
UV lamp length: 500mm
UV acting range: 400mm
Wave length :365nm
UV lamp work life: 3000hr

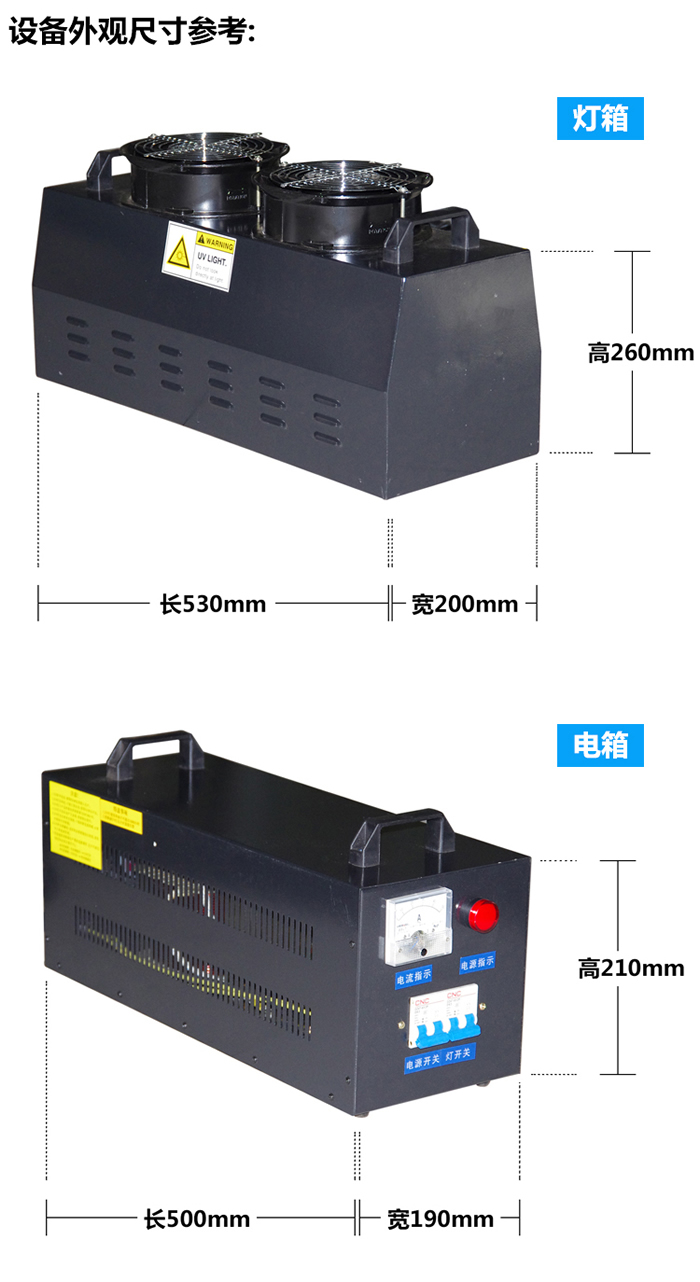

Dimension
UV lamp box : 560L*170W*310H
Power control box: 560L*170W*250H
Net weightL 45KG
Advantage:

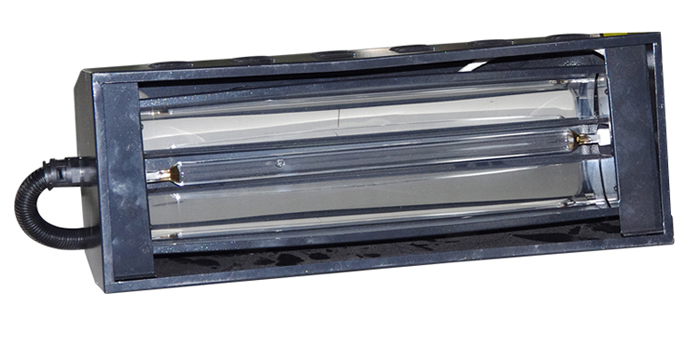

High Quality Quartz Lamp
High-quality light given pure quartz glass,Ultraviolet UV curing lamps, UV enables a high degree of penetration and a lot of curing effect is more pronounced
Power Fans
On the basis of large fans on the importance of functional design, enhanced heat exhaust fan fan efforts to increase the cooling fan to achieve the best cooling effect.
UV Meter

UV meter can better understand the lamp current during use, to make the operation easier and faster, better operational control and machine
