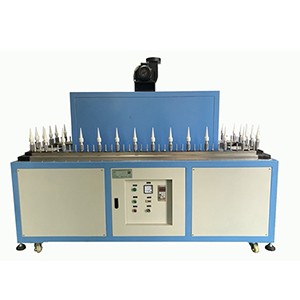

Automatic Round Bottle UV Curing Machine

Model Number: UV-300R
Product price: US$:negotiated
Category: UV Curing Machine
Views: 3158

Product Description：Automatic Round Bottle UV Curing Machine

PRODUCT DETAIL

Product name:Automatic Round Bottle UV Curing Machine

Model Number: UV-300R

Feature
1 .UV drying for round bottle and plane products.
2. Cylinder products increased the effect of light .
3. UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate
Parameter
1.Max UV curing round bottle high :320mm
2.Max UV curing Products width : 400mm
3. UV Curing bottle diameter : 12-60mm
4. curing size of workpiece: Cylinder products :320X400mm
5.Conveyor speed:0~10m/min ;
6.. (United Kingdom)UV lamp power:4KW
7. UV Drying products speed：1800~3000PCS/HR
8.Total power:5KW
