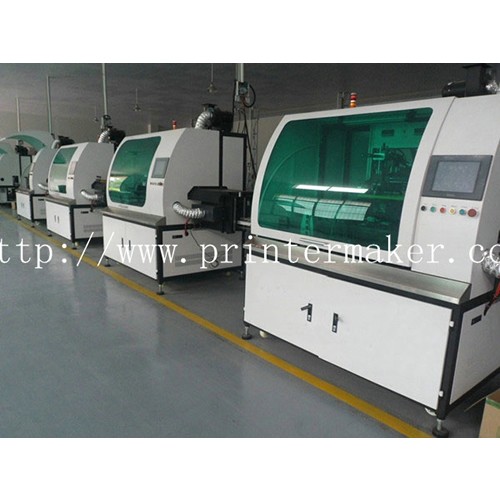

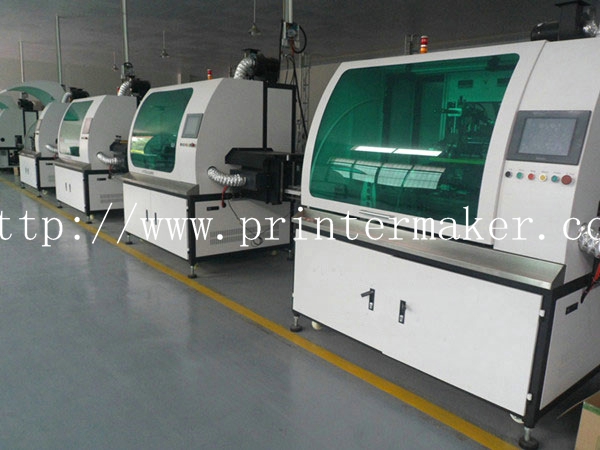

Automatic Glass Perfume Bottle Screen Printing Machine

Product name:Automatic Glass Perfume Bottle Screen Printing Machine

Model Number: SGL-PT04-3D

Automatic Glass Perfume Bottle Screen Printer
Product Name: Automatic Glass Perfume Bottle Screen Printer 3D04
Model: SGL-PT04-3D
Applications:

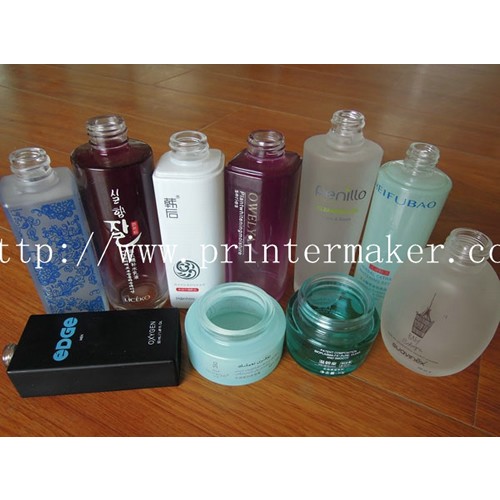

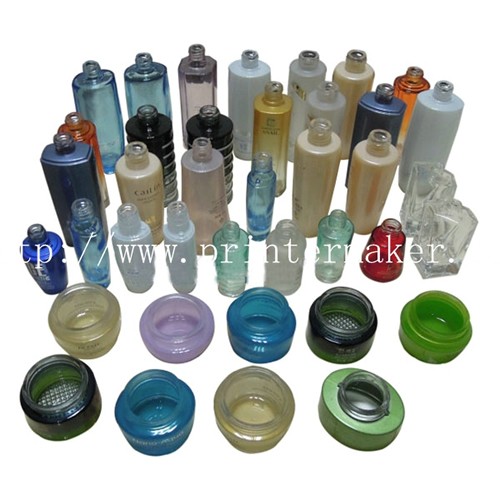

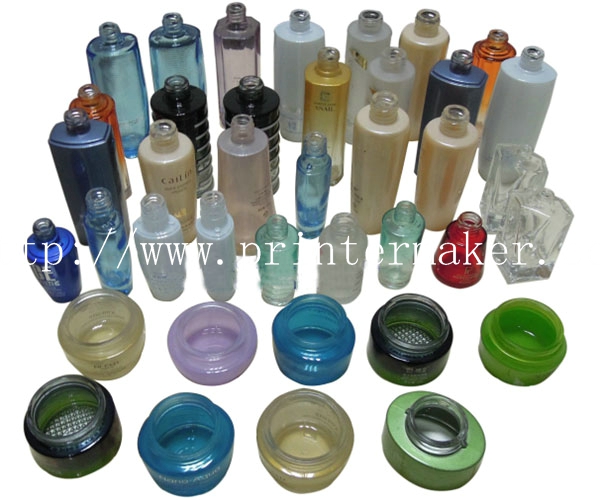

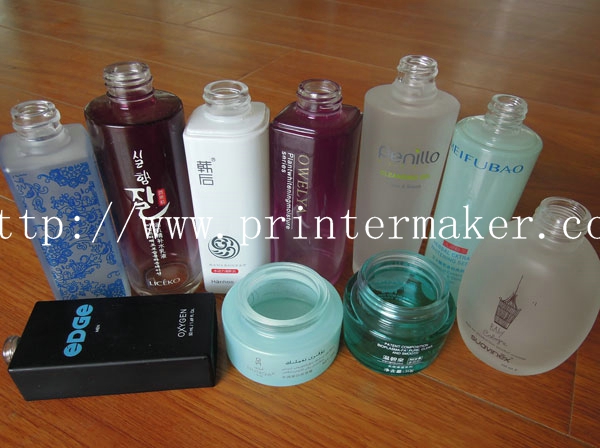

This Multi-function Automatic Glass Bottle Screen Printer(CNC Printing Machine) is fit for multi colors
decoration of all shapes of glass bottles, cups, mugs at high production speeds. It can print any shape of
containers all around in once time printing.
It is suitable for glass containers printing with UV ink or thermoplastic ink. All servo driven and fast speed
make the CNC screen printer  ideal for precise printing on glass and plastic containers.
Parameters:
1:Printing size: Round bottle: φ20-φ80mm length:25-170mm
Oval bottle:width:25-120mm, length:25-170mm
2:Speed: Round bottle:2400pcs/h.
Square bottle(one side):3000pcs/h.
Square bottle(multi sides):1500-2500pcs/h.
Oval bottle:2600pcs/min
Oval bottle(Two or full round):1500-2000pcs/h
3.Air Pressure: 0.6Mpa
4.Power: 380V 3phase 50Hz 30Kw
5.Machine Size:2400*1500*1700mm
Features:
Full Servo system.
1.Automatic loading and unloading system with multi axis servo robot
2.Automatic UV curing with high efficiency electrode UV system from Europe
3.Automatic printing system with all servo driven: printing head, mesh frame, rotation, container
up/down all driven by servo motors.
5.Fast tooling changeover time, it's about 20 minutes for each color. All parameters automatic setting by touch screen.
6.All Ethercat servo motors with industrial PLC control & touch screen operation system, internet cable connection available,
easy for future maintenance and upgrading
8.Safety operation with CE
9.Can use normal ink or high temperature ink or UV ink.
10.The CNC screen printer can equip with visual registration as per customer requirement.
Options:
1.Flame treatment system
2.Additional module up to 10 units for multi color printing
Remarks:
Automatic Glass Bottle Screen Printer(CNC Printing Machine)  equipped with camera vision system,

for cylindrical products without registration point
