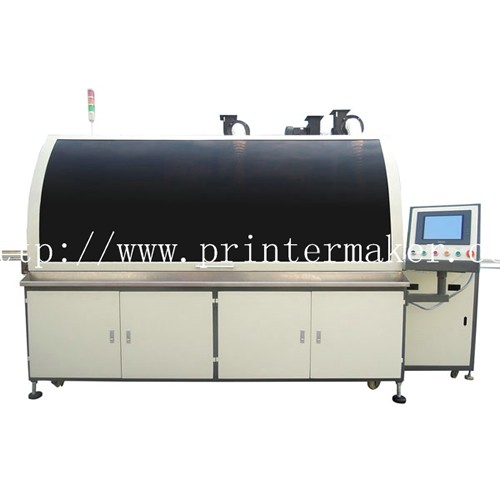

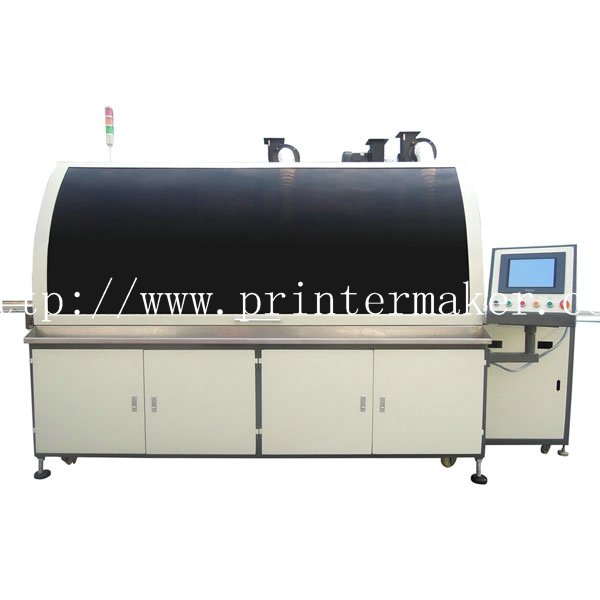

Automatic Glass Bottle Screen Printing Machine For Cosmetic Industry

Product name:Automatic Glass Bottle Screen Printing Machine For Cosmetic Industry

Model Number: SGL-PT04

Automatic Glass Bottle Screen Printer For Cosmetic Industry
Product Name: Automatic Glass Bottle Screen Printer For Cosmetic Industry
Model: SGL-PT04
Applications:

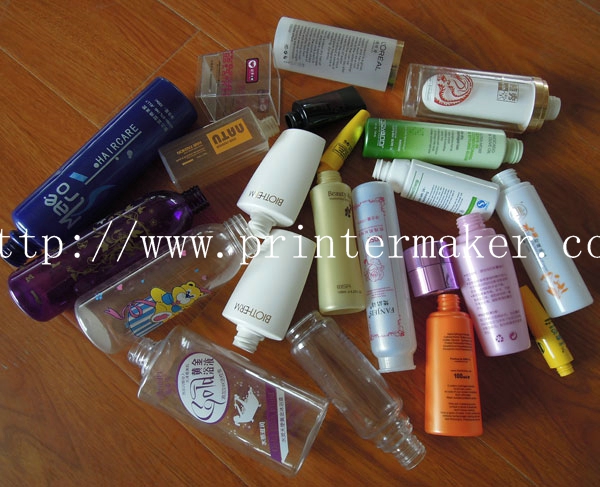

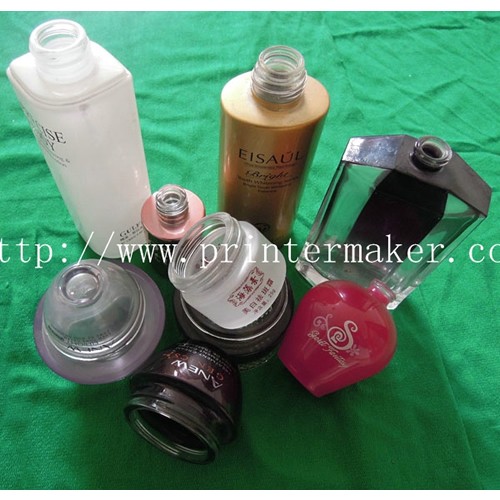

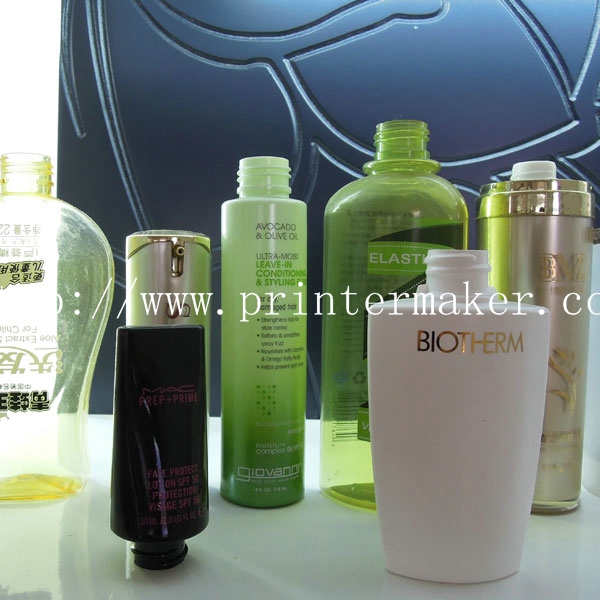

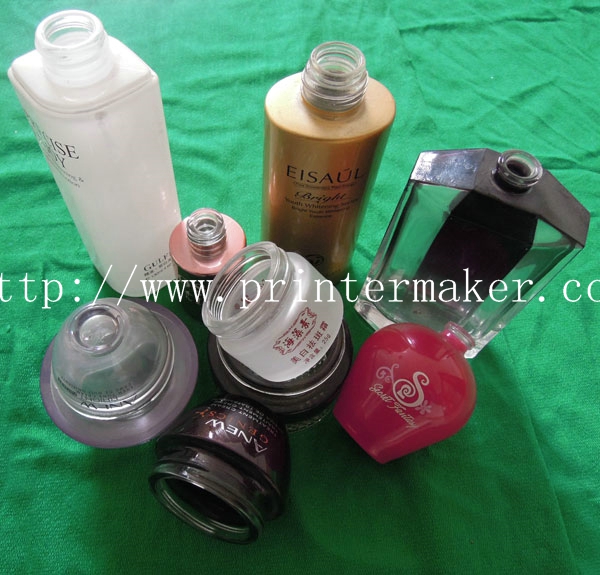

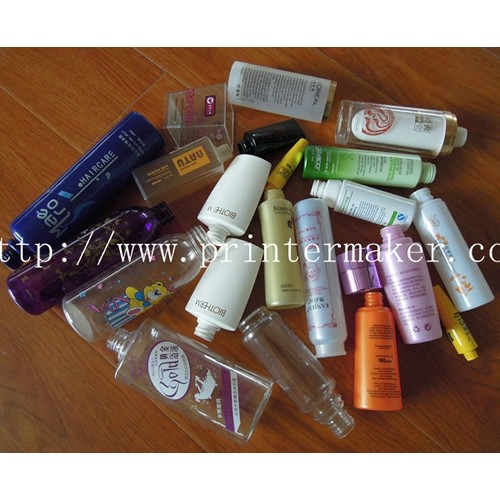

This Multi-function Automatic Glass Bottle Screen Printer which fits for conical glass bottle,
square glass bottle, oval glass bottle and cylindrical glass bottle screen printing. It is very popular
in cosmetic industry and widely used by small and middle enterprises
Parameters:
1.Printing size: Round bottle: φ20-φ80mm length:25-150mm
Oval bottle:width:25-120mm, length:25-150mm
2.Speed: Round bottle:2400pcs/h.
Square bottle(one sides):3000pcs/h.
Square bottle(multi sides):1500-2500pcs/h.
Oval bottle:2600pcs/min
Oval bottle(full round):1500-2000pcs/h
3.Air Pressure: 0.6Mpa
4.Power: 380V 3phase 50Hz 30Kw
5.Machine Size:1300*1500*1700mm
Features:
Robot loading and robot unloading, PLC and HMI design, fast tooling change over time.
Running stable.
Easy to change tooling for different shape of glass bottle.

Using normal ink.
