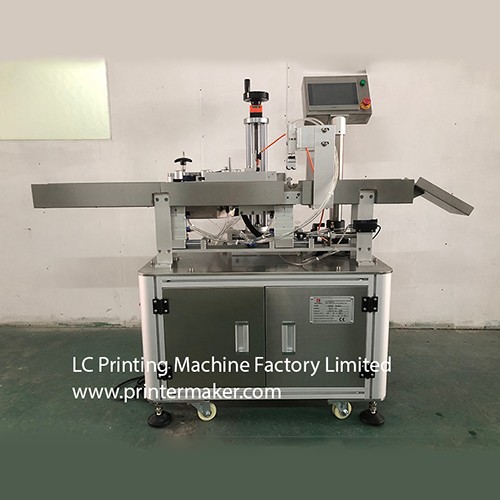

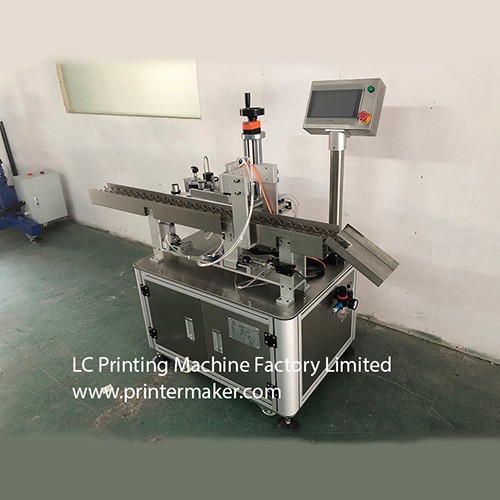

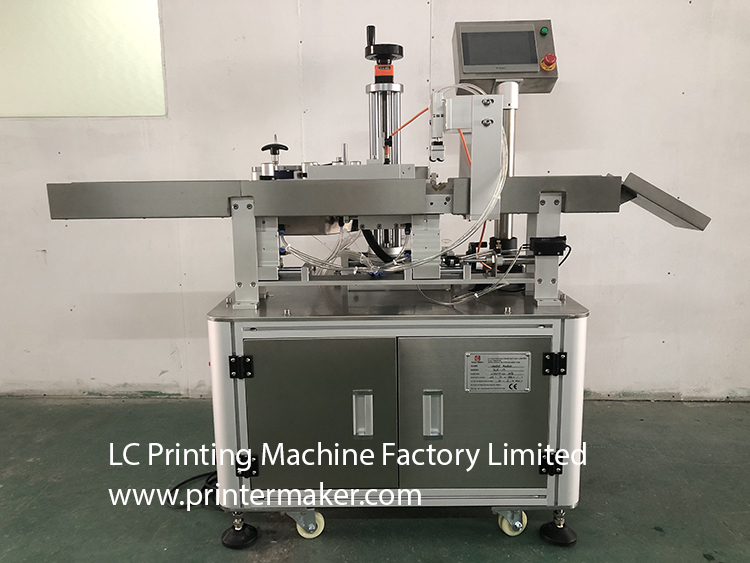

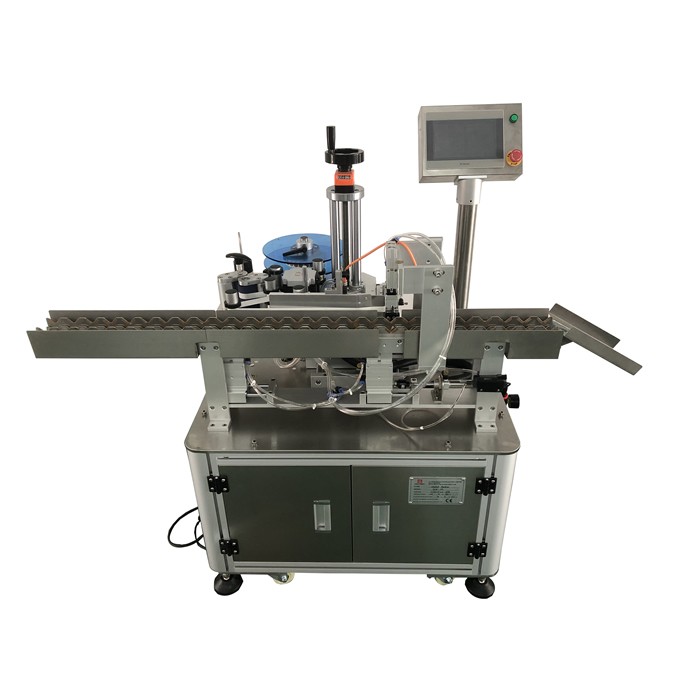

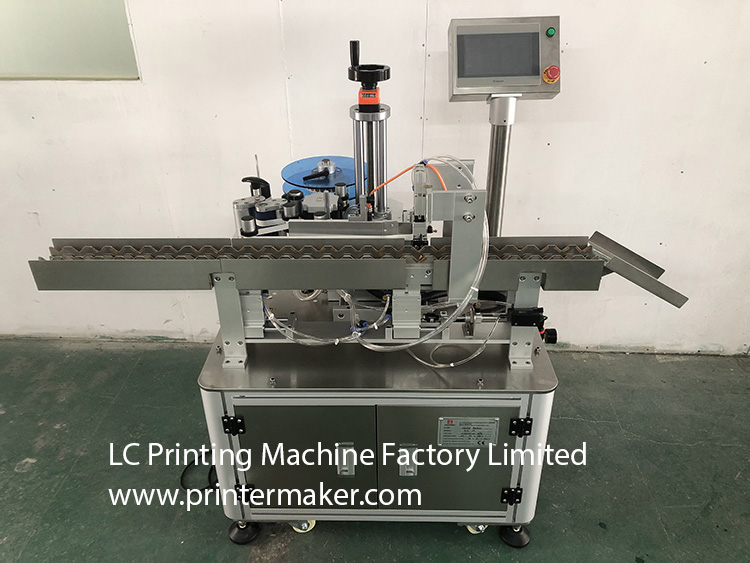

Lipstick Bottom Automatic Labeling Machine

Product name:Lipstick Bottom Automatic Labeling Machine

Model Number: ALM-311

Lipstick Bottom Automatic Labeling Machine

Specification:

Labeling Speed:30-50pcs/min
Accuracy：±0.5mm
Diameter：φ12mm-φ25mm, height 70mm-130mm
Applicable label diameter：10 mm to 15mm
Working voltage：220V Single Phase
Dimensions L*W*H: 1400*750*1250mm

Function:
It is suitable for the bottom labeling of cylindrical, square or oval products with  unstable standing, adopting horizontal transmission and horizontal labeling to increase  stability, improve labeling efficiency and accuracy. Optional coding machine or jet  printer to label head, can realize the production date, batch number and jet printing bar  code information on the label. It can print the date of production, batch number, bar  code and other information on the product before or after labeling.

Product features:
1. High speed, using intermittent transmission mechanism, to achieve high speed delivery  of products;
2. Good labeling quality, the use of label tape bypass correction technology, label head  and tail of the paste high degree of overlap, improve packaging quality;
3. High stability, advanced electronic control system composed of PLC+ touch screen + optical fiber object sensor + label sensor, support equipment 7×24 hours high speed  operation;
4. Intelligent control, automatic photoelectric tracking, with no label, no label  automatic correction and automatic label detection function, to prevent missing and label  waste;
