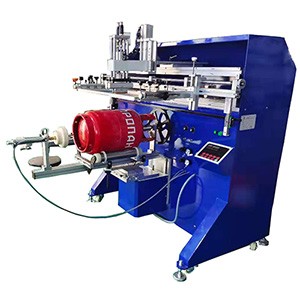

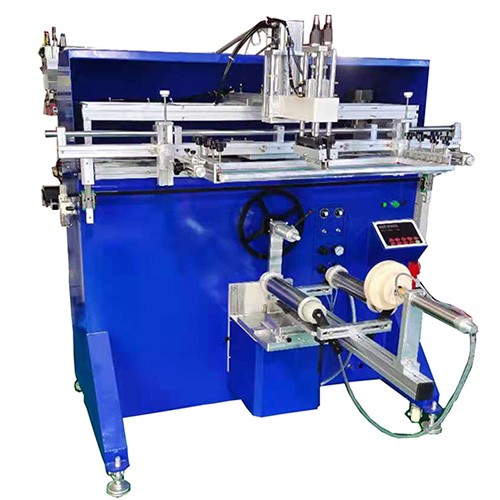

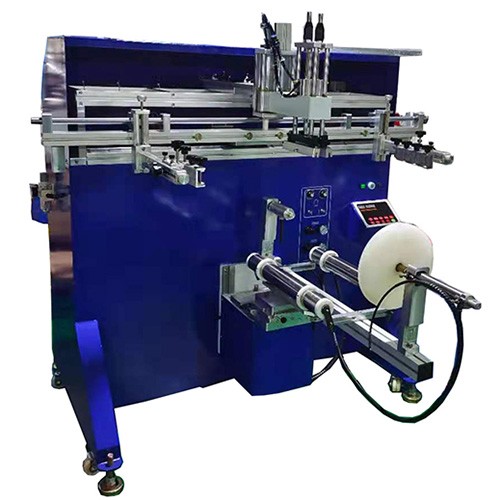

Cylinder Tank Screen Printing Machine

Product name:Cylinder Tank Screen Printing Machine

Model Number: 1200

Gas tank silkscreen printing machines, metal drum silkscreen printing machine, bucket pail screen printing machine, beer drum silkscreen printing machine, 5 gallon plastic pails silkscreen printing machine, Bucket pail Screen Printing Machine, gas cylinder screen printing machine,
Specifications:
 1:Max.printing size:φ370x350mm
 2:Max.Frame Size:1300*400mm
 3:Machine size(LxWxH):1830x1250x1730mm
 4:Net Weight:390kg; Gross weight: 450kg
 5:Air Pressure(bar):5-7
6:Power: 220V/50Hz
7.Max product arc length:1170mm
8.Max printing speed:800Pcs/Hr
9.Packing size: 127*172*190CM (LxWxH)
10.Gross/Net weight:700kg/600kg


Advantages:
1.Microprocessor controls each function with high automation and easy operation;
2.5 digit auto counter built in;
3.It has function of cylindrical printing and conical printing;
4.Auto ink scraping and flooding and worktable elevating make operation easy and ensure stable printing quality;
5.printing stroke and speed are adjustable to meet different printing requirements;
6.Auto balanced squeegee ensures equalized printing pressure;
7.Worktable can be adjustable up/down, left/right and rotated slightly. Screen frame can be finely adjusted forward/backward, left/right and up/down. Printing precision is high and adjustment easy;
8.Squeegee can be finely adjusted left/right, Substrate alignment is quick and precise;
9.Safety hood is equipped to meet European safety standard and ensure safety.
10. Pneumatic part of the installation of the German "FESTO" Parts, Separate adjustment speed.

11. The special strengthen working table design for heavy bucket like ice beer drum, gas tank, gas cylinder bottles etc.

Machine Fittings:
1. One frame,
2. One tool box,
3. 1 inch squeegee.
4. One fixture.

Application Scope:

1200 Screen Printing Machine, which is attached with strengthen working table for holding the heavy bucket. It is fitting for printing on the big diameter round products such as metal drum, gas tank bottles, LPG gas cylinder, 5 gallon plastic pails etc.
