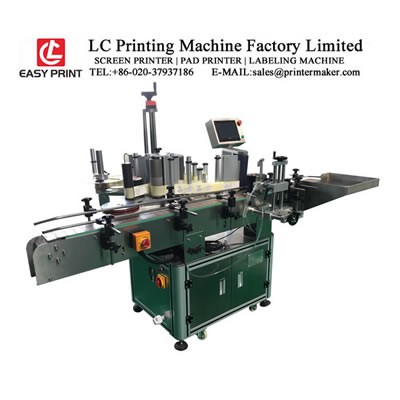

Bottles Automatic Labeling Machine with Barcode Printer

Product name:Bottles Automatic Labeling Machine with Barcode Printer

Model Number: ALM-21200BP

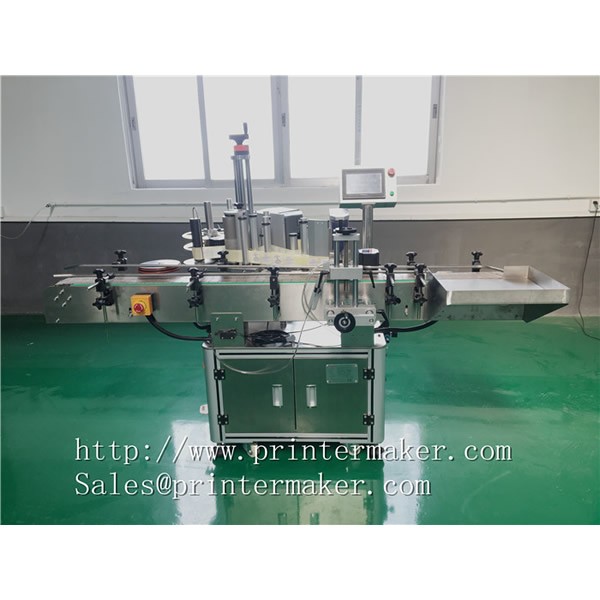

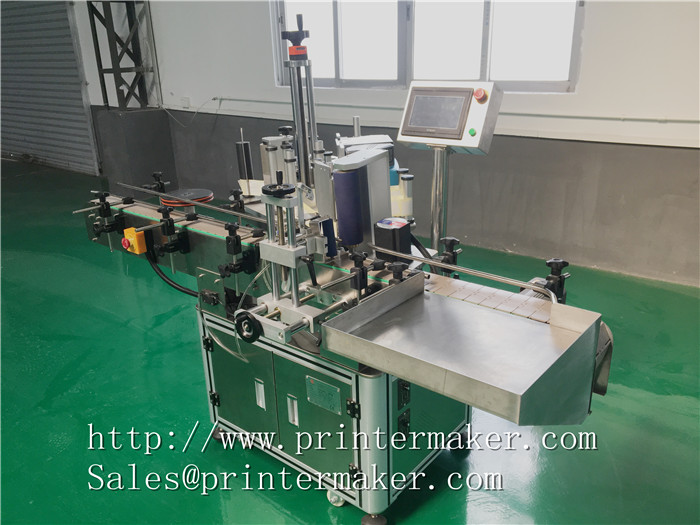

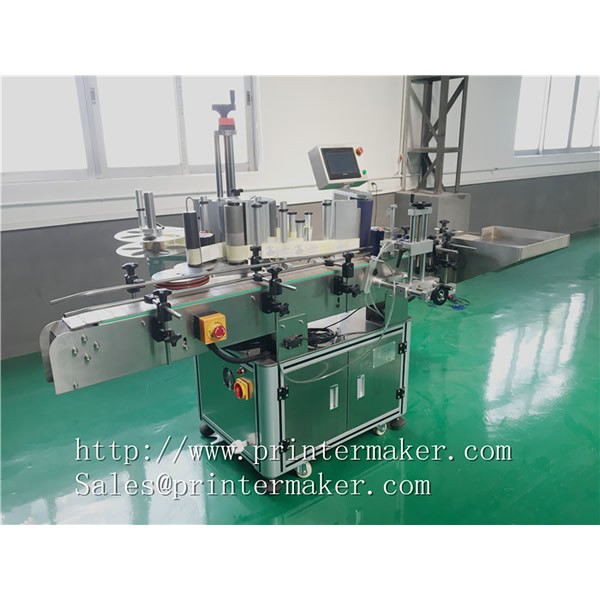

Bottles Automatic Labeling Machine with Barcode Printer

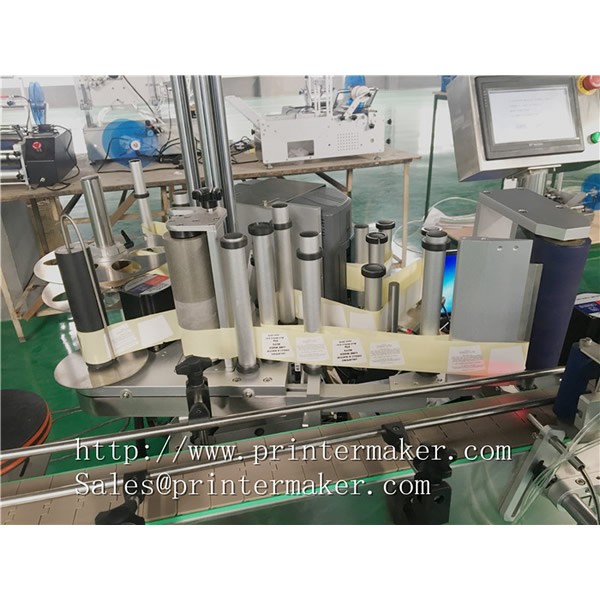

This machine is applied to label the self-adhesive label on various round bottles or containers.
It has accurate positioning function , high-speed labeling front and back at the same time .
This machine is widely used in pharmaceutical, foodstuff, beverage, cosmetic, chemical and etc. industries.

Feature
1. adopt mature PLC control system technology, make the whole machine stable and high-speed

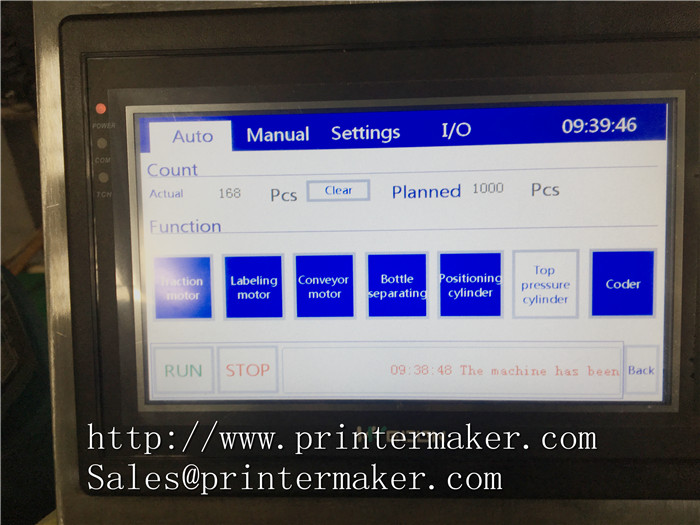

2. use touch screen control system, make operation simple, practical and efficient
3. upgraded butterfly labeling station design, can be applied for conical bottle labeling
4. screw adjust the suppression mechanism, high accuracy
5. synchronization chain mechanism, to ensure smooth and precise calibration
6. transparent sticker labeling without foam,adhesive sticker labeling without wrinkle
7. widely used and mutil-function with high flexibility
8.Spurts the code system or bar code printer is for optional .

Specification
1.Label width: 20-290mm
2.Label length:20-160mm
3.Products size:
Diameter: φ25mm-φ100mm
Height:25-300mm
4.Max Outside diameter of label roll: φ280mm
5.Inside diameter of label roll: φ76mm
6.Max Labeling speed: 60pcs /min
7.Accuracy of labeling:±1mm
8.Power: 220V/110V 50/60Hz 900W
9.Machine Net Weihgt : 190KG  Gross Weight:310KG
10.Machine Dimension: 1950mm x 1200mm x 1550 mm

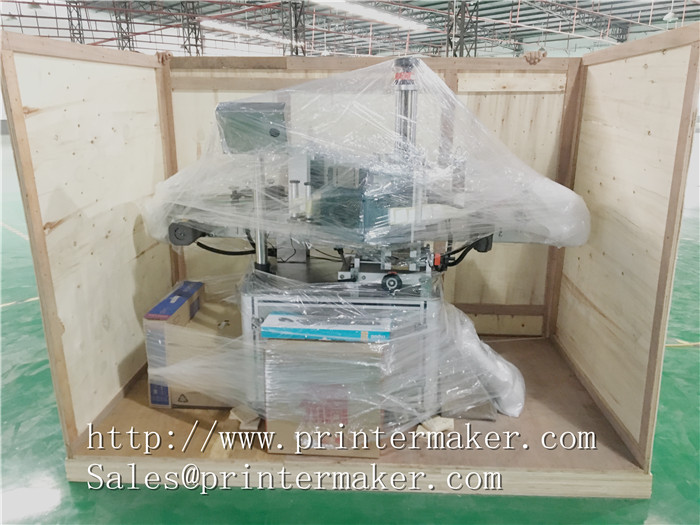

11.Packing Size:215*115*155CM

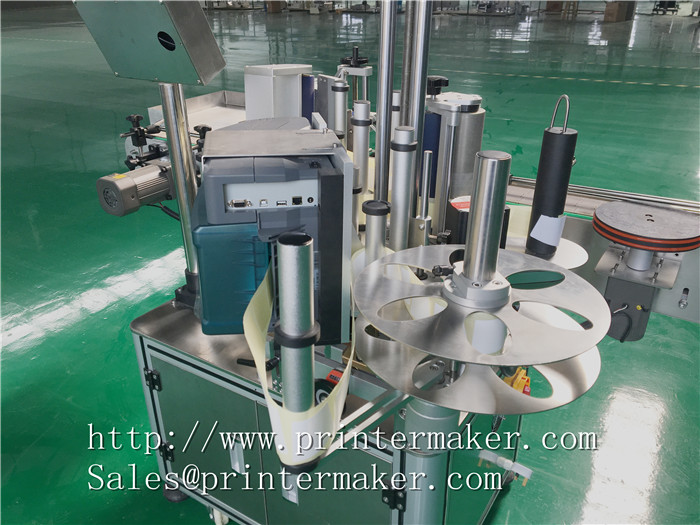

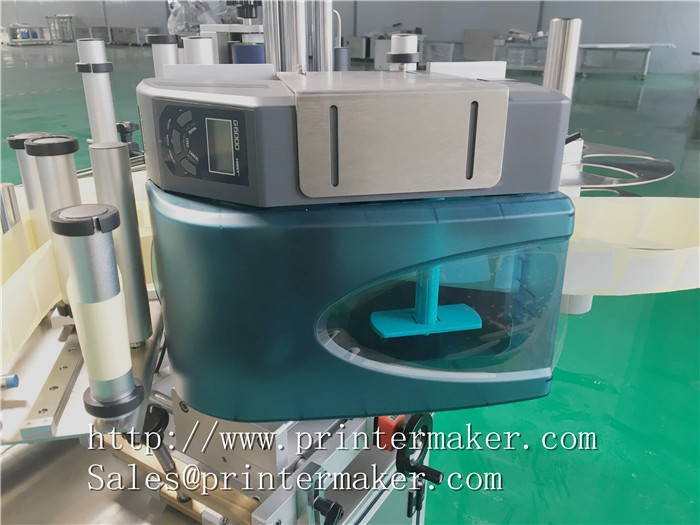

BarCode Printer
Specification
1. Printer Model: G3000
2. Resolution: 300 dpi
3. Max printing speed : 6ips (153mm/s)
4. Max printing width : 4.17″（106mm）
5. Max printing length: 157″（4000mm）
6.Label roller size
Width: 4.49″ (114 mm) max., 0.98″ (25 mm) min.
Supply roll: OD 6″ (152 mm) max., ID 1″ (25.4 mm) min.
Thickness: 0.003″ - 0.008″(0.08 - 0.20 mm), including back paper

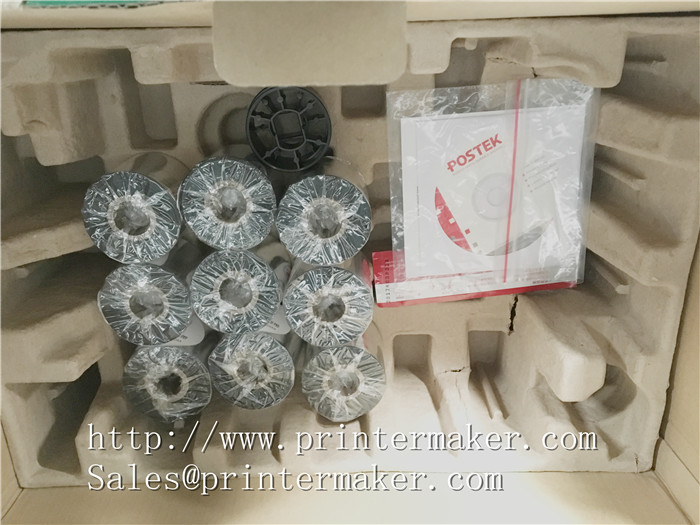

7. Ribbon roll:
OD 2.75″ (70 mm) max., ID 1″ (25.4 mm) core
Max width: 110 mm; Max length: 300 M
8.Memory:8 MB FLASH ROM, 16 MB SDRAM
9.Media Sensor Reflective (Adjustable) / Transmissive
10.Fonts Five built-in ASCII fonts, Downloadable TrueType fonts
11. Barcode Types 1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2
and 5 add-on, EAN-13/8/128, UCC-128;
2D Barcode: MaxiCode, PDF417, Datamatrix, QR Code.

12.Interfaces RS-232 Serial, 10/100 M-bit Ethernet, USB DEVICE 2.0, USB Host, Centronics Parallel(Optional)
