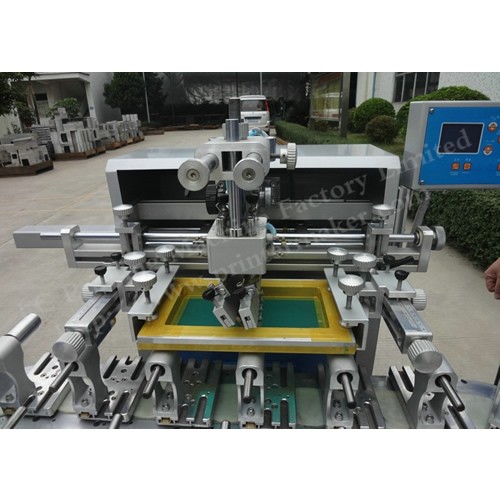

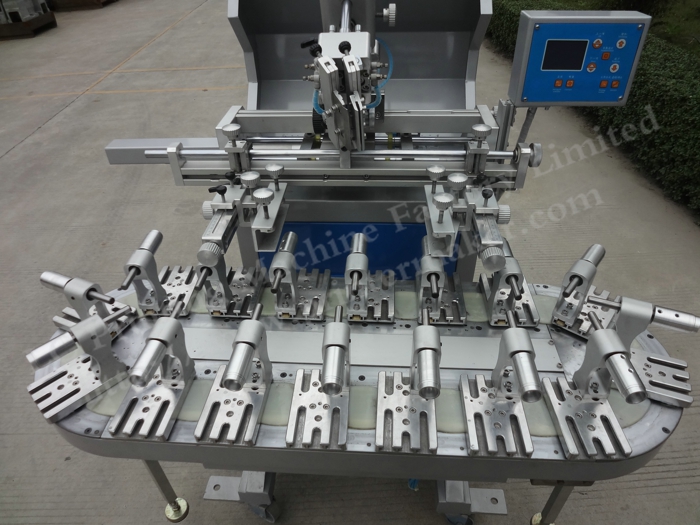

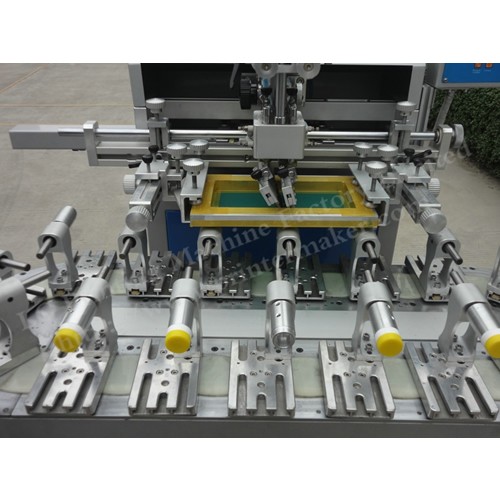

Flat And Round Conveyor Belt Screen Printing Machine with 16 Stations

Product name:Flat And Round Conveyor Belt Screen Printing Machine with 16 Stations

Model Number: 250AC

Flat And Round Conveyor Belt Screen Printing Machine with 16 Stations
This is our new product: Flat And Round Conveyor Belt Screen Printing Machine with 16 Stations. It is designed for enhancing the efficiency of printing capacity on those small round diameter and flat objects such as bottle caps' sidewall and cap's top with single color printing, it is also fitting for those glass cups, tubes, small diameter bottles,covers, stainless steel cups printing etc.
Advantages :
1. Fully automatic control by microcomputer & easy handling
2. Four figures automatic counter
3. Automaticoil scraping, oil return and lifting table
4.16 Products installed to improve production printing speed
5. With super long slide stroke to print large size workpiece.
6. Pneumatic part of the installation of the German FESTO tubes and Air valve, Ormon Sensor, SMC Cylinder.
Specification:
1. Max printing thickness: 200 MM
2. Air consumption: 75 Lit/Min
3. Outline size: 120X80X115cm
4. The max printing area: φ35X80 80X120mm
5. Dimension of working table: 90mm× 125mm
6. Max printing speed: 2400Pc/hr
7. Max frame dimension: 410× 350mm
8. Stroke of Squeegee: 250mm
9. Stroke of Table cylinder: 60mm
10. Number of working table: 10 stations

11.Packing Size:123*87*141CM
