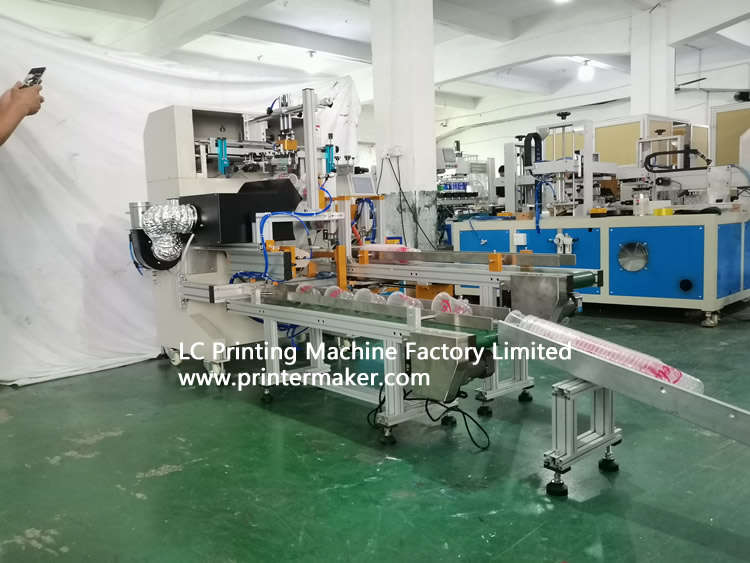

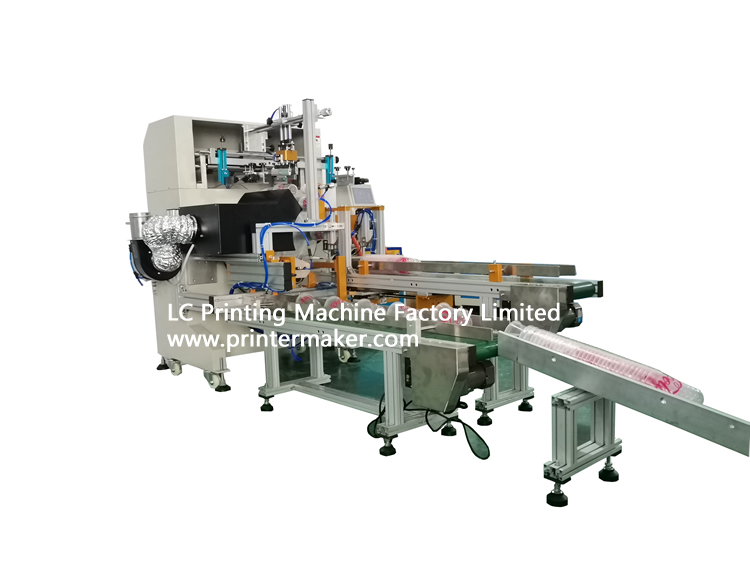

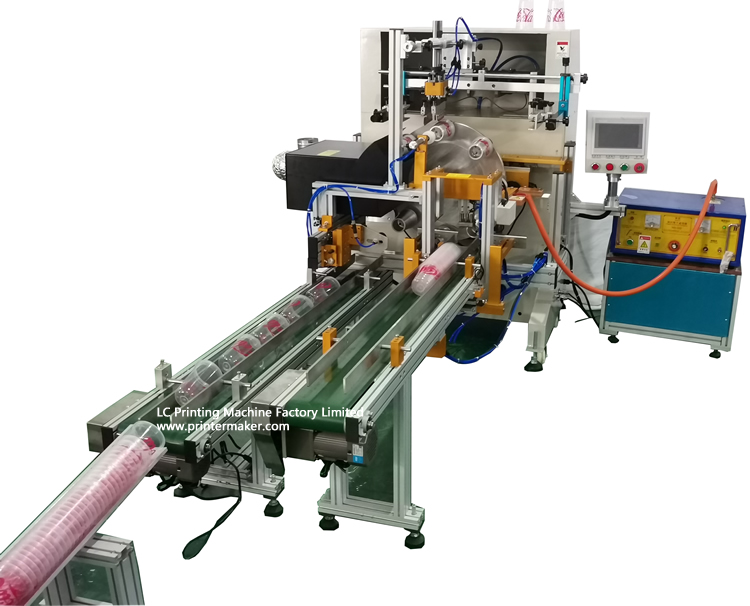

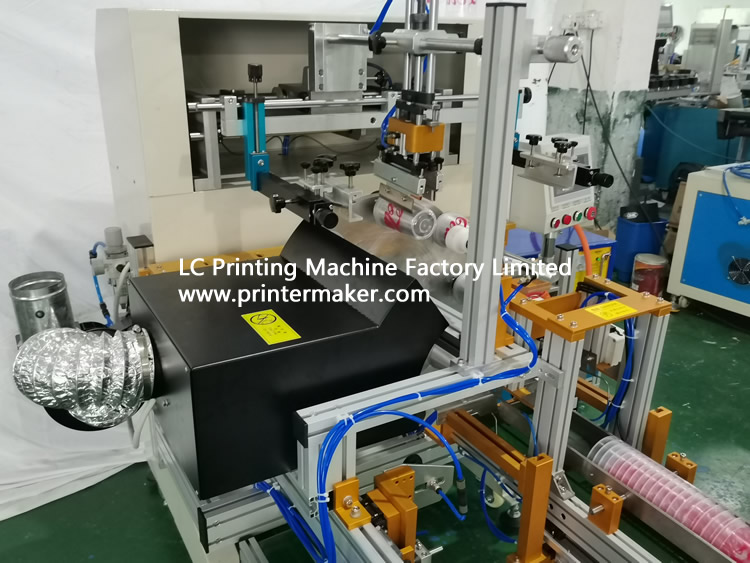

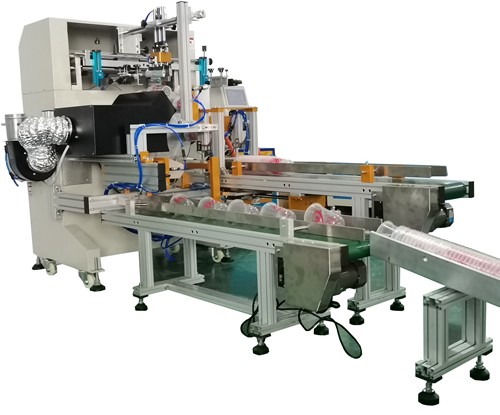

Disposable Cups Automatic UV Screen Printer

Product name:Disposable Cups Automatic UV Screen Printer

Model Number: MSP-400XA

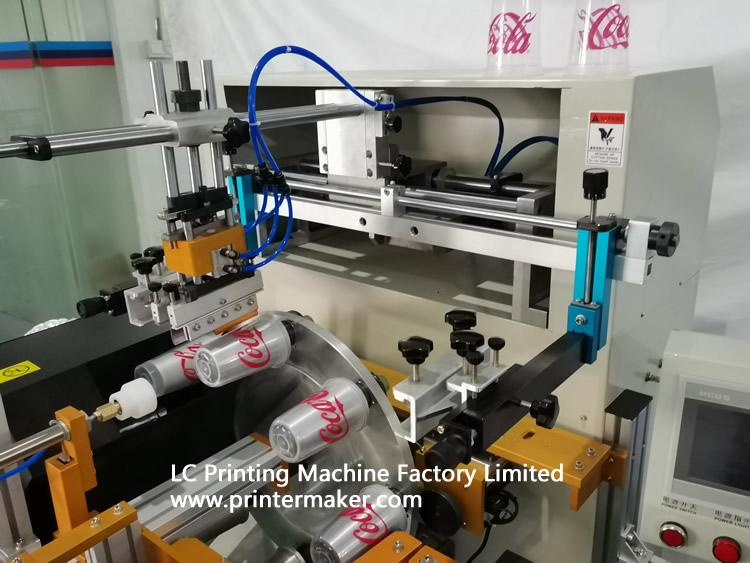

Disposable Cups Automatic UV Screen Printer
 Machine's Parameters:
1: Model number：MSP-400XA
2: (Round)Max Printing diameter：100mm Dia*200MM height
3: (Round)Max Frame size：350×550 mm
4: Max. Printing Size: 314mm*200mm (Length*height)
5: Air pressure：6bar
6: Power Rate：3KW
7: Power Supply：AC110V/220V,50/60HZ, 1 Phrases
8: Printing speed：1800-2200P/H
9: Machine Dimension（mm）：1580×2500×1580
10: Machine weight：650KG
11: Packing Size: 1700*2650*1700mm
 Features:
1:Fully automatic feeding system

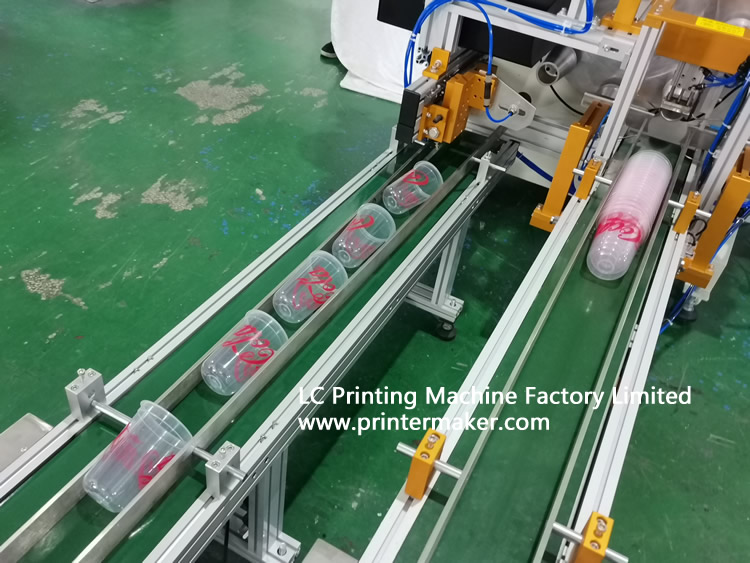

2: Fully automatic unloading system
3: Fully automatic collecting system for
4:corona treatment for thin plastic cups
5: Japan SMC brand pneumatic parts
6: High Precision Splitter

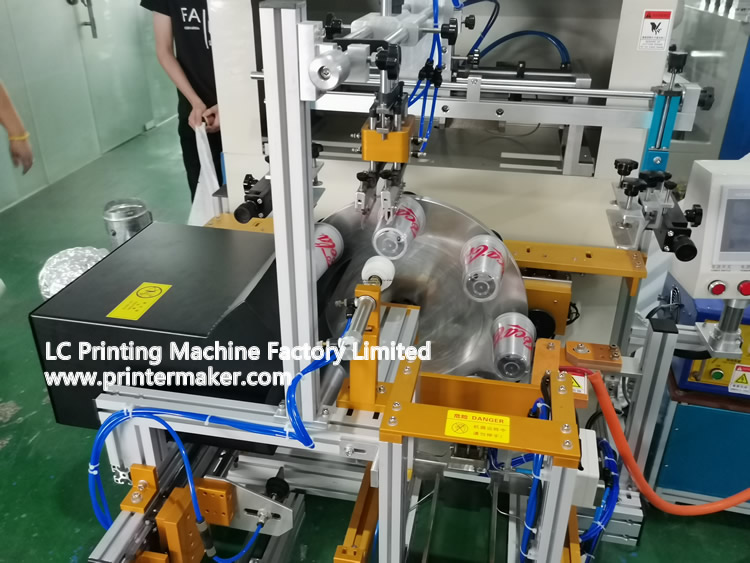

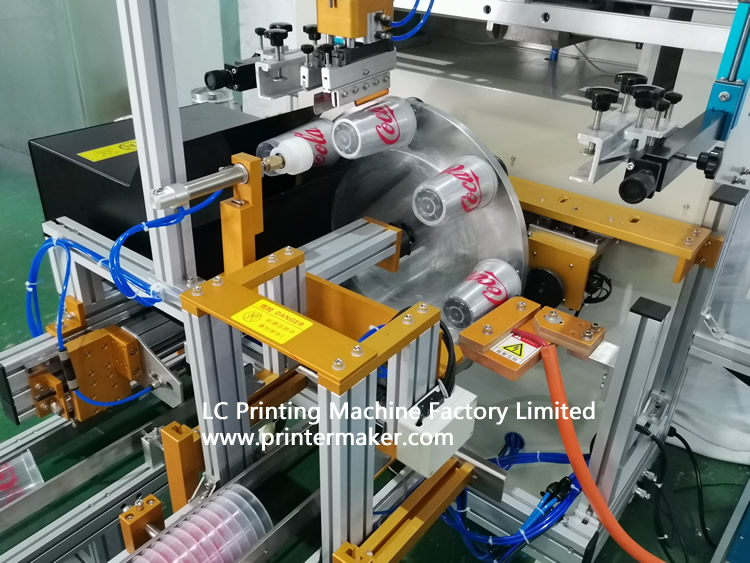

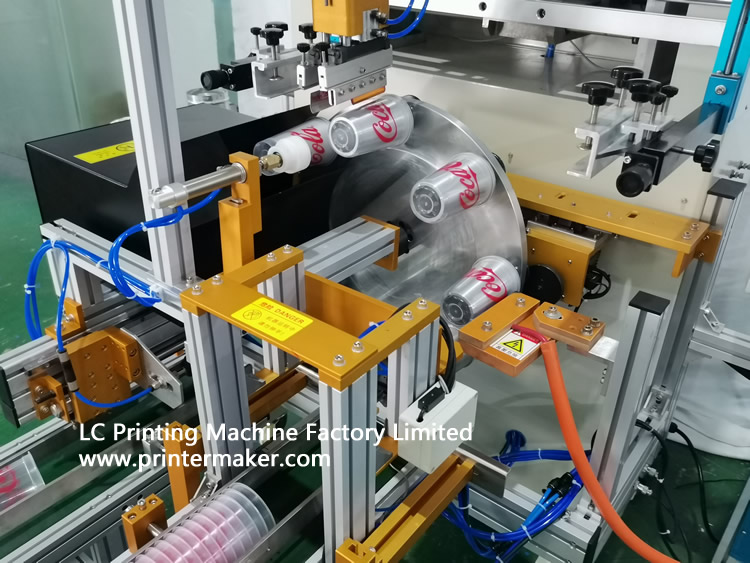

7: Rotary system to get high working capacity
8: PLC Touch Screen Control
9: CNC servo system with optical sensor for second running with more than 2 colors printing (optional)
