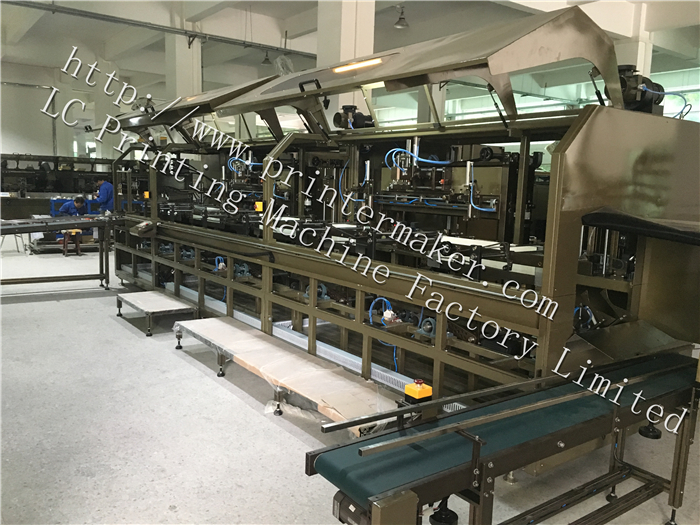

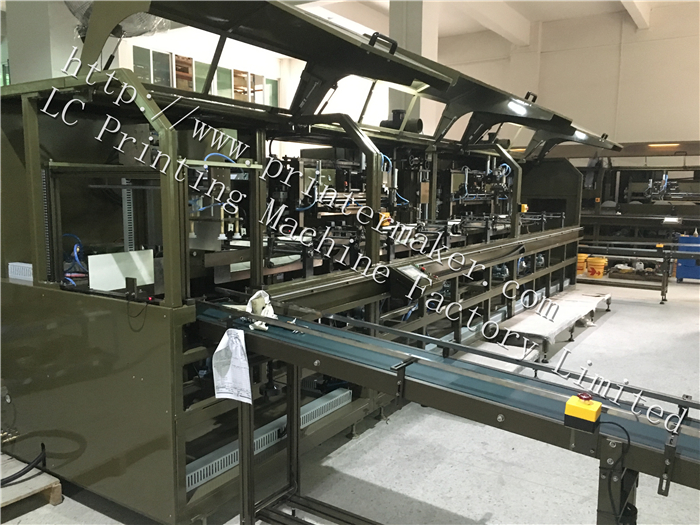

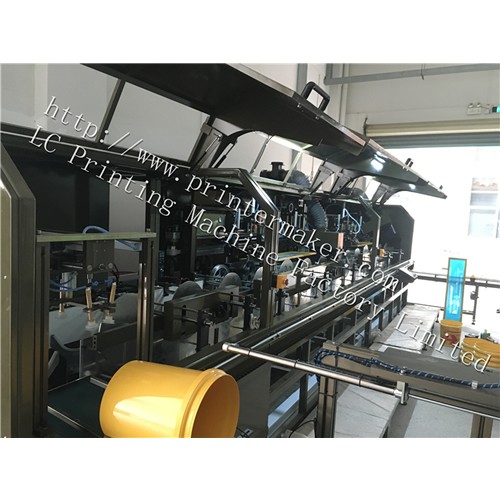

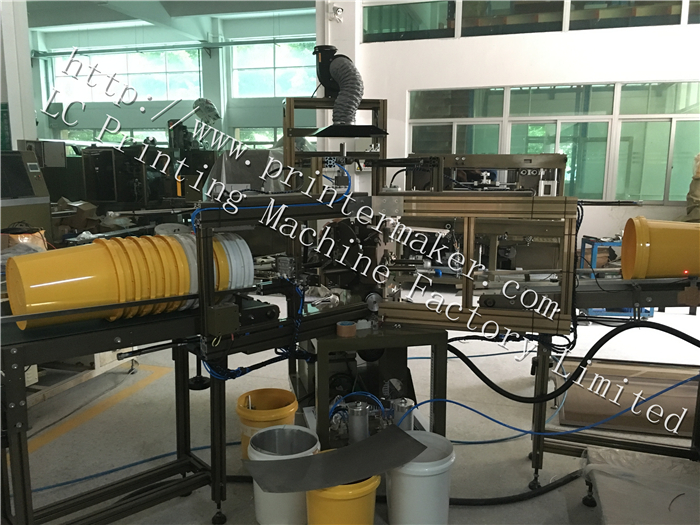

Automatic Silk Screen Printing Machine For Bucket

  • Automatic Silk Screen Printing Machine For Bucket
  • Automatic Silk Screen Printing Machine For Bucket
  • Automatic Silk Screen Printing Machine For Bucket
  • Automatic Silk Screen Printing Machine For Bucket
  • Model Number: S-350
  • Product price: US$:negotiated
  • Category: Automatic Screen Printing Machine
  • Views: 4380
  • Product Description:Automatic Silk Screen Printing Machine For Bucket
  • PRODUCT DETAIL

Product name:Automatic Silk Screen Printing Machine For Bucket

Model Number: S-350

Description:

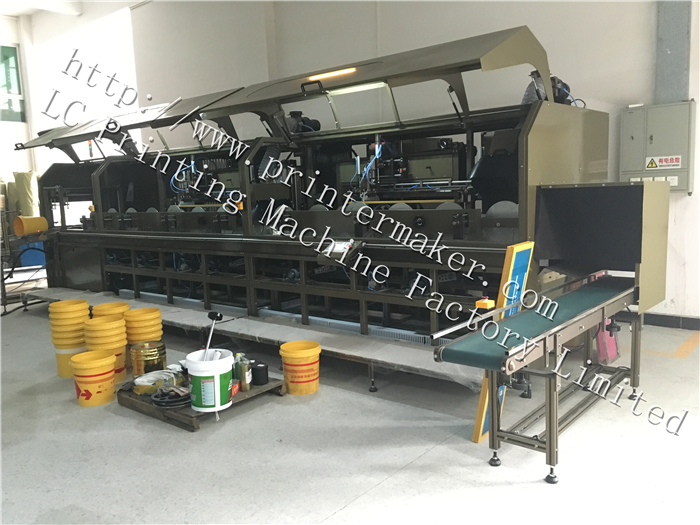

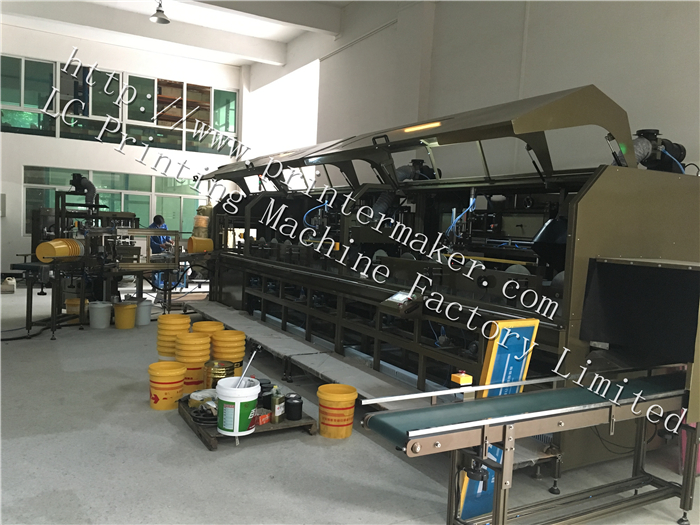

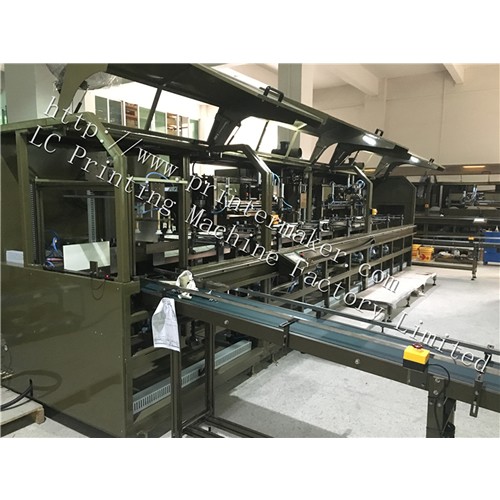

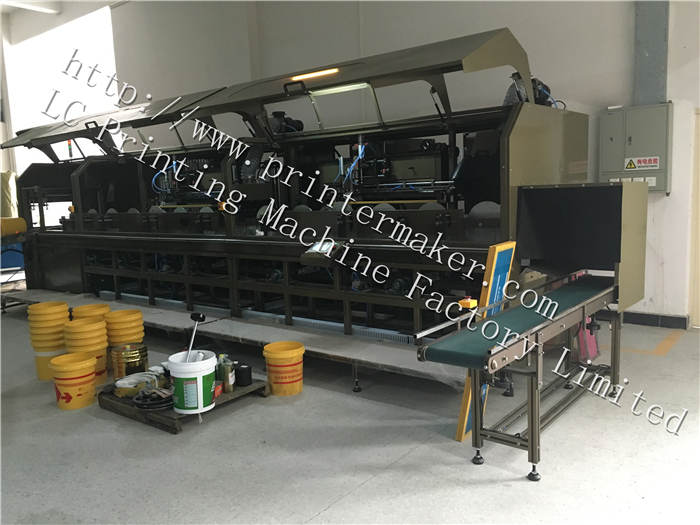

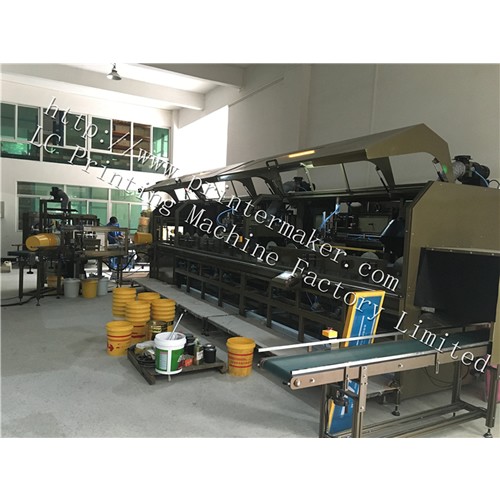

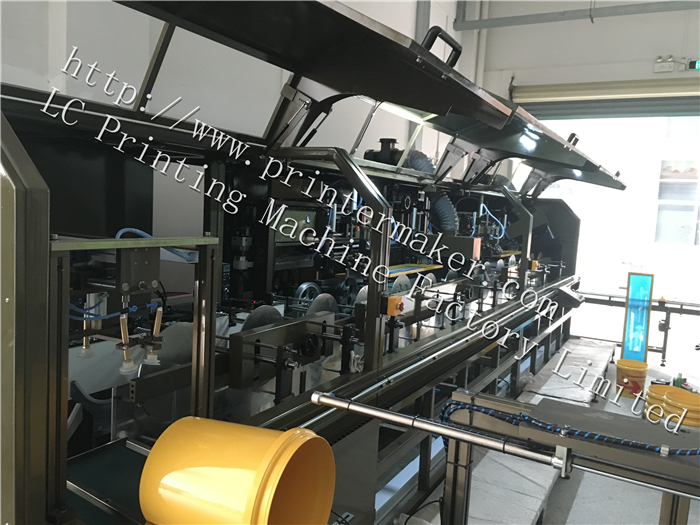

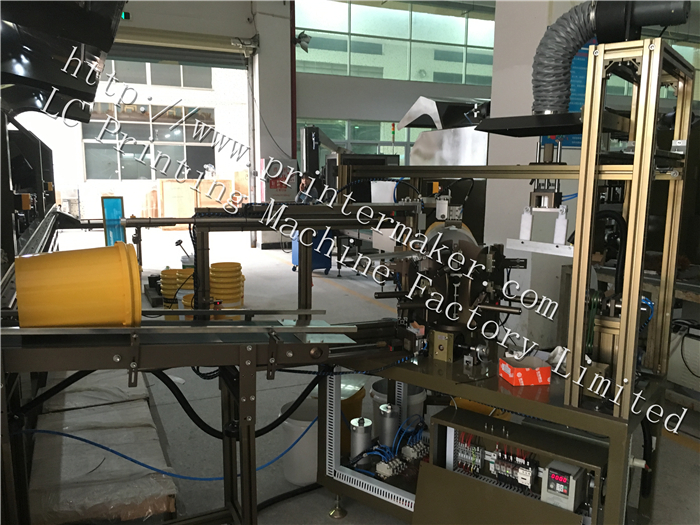

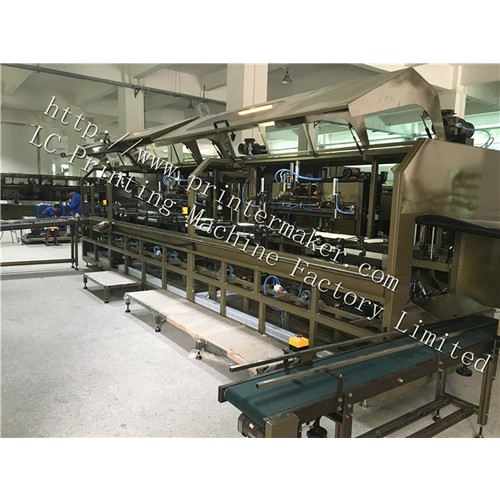

Automatic Silk Screen Printing Machine For Bucket
Technical specifications:
1:Maximum Printing Area 900mm×250mm
2:Maximum Screen Frame Size 1200mm×400mm
3:Min. and max. diameters of cylindrical container Ø150mm~Ø350mm
4:Min. and max. length of container 200mm~400mm
5:Max. production speed 1000pcs/hr
6:Power Requirement 380V 3phase 50Hz 20KW
7:Compressed Air Pressure Requirement 5~8bar
8:Machine Weight :6000KG
9:Machine Dimension(L×W×H) 12000mm×2500mm×1800mm
Features:
1: This machine is specially designed for large diameter plastic containers in cylindrical and conical shape, it is applicant primarily for buckets, barrels, pails, chemical drums' surface printing.
2: It is integrated with varies functions such as automatic loading and unloading system, 4 sets of flaming treatment, auto orientation, automatic multi color overprint toolings, UV curing system etc.
3: Independent control printing for each color station, mechanical synchronous drive, micro computer control, accurate overprint to ensure machine's working stability and reliability.
4: PLC Control Panel and screen touching combined with brand-name mechnical transferring, driving, combined with kinds of monitor system to ensure the machine running stability at high speed.
5: Machine could be combined with from 1 to 8 colors.
6: We can customize machine according to the special size of your items.

Prinitng Samples:

Automatic Silk Screen Printing Machine For BucketAutomatic Silk Screen Printing Machine For BucketAutomatic Silk Screen Printing Machine For Bucket
