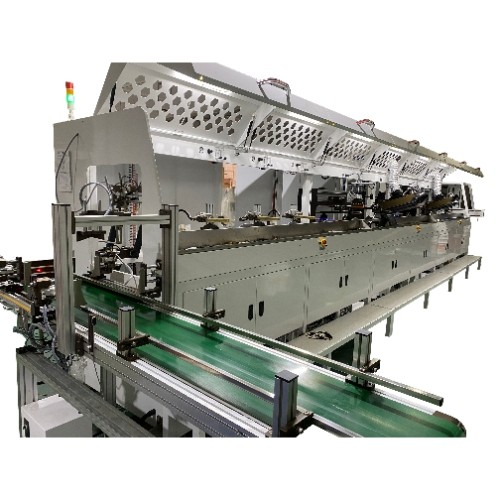

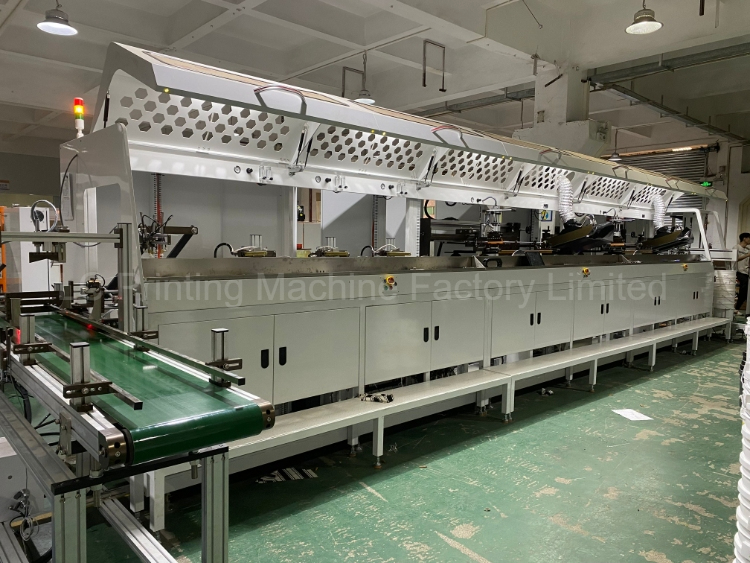

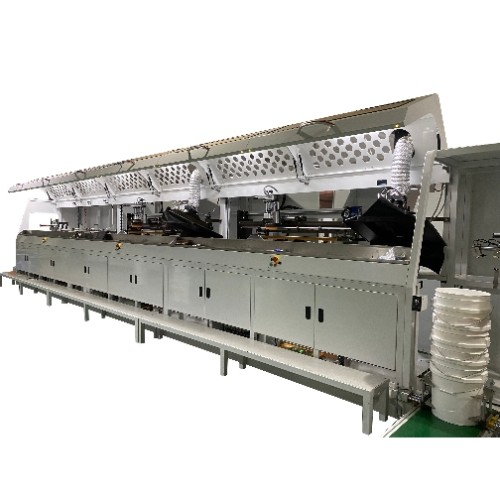

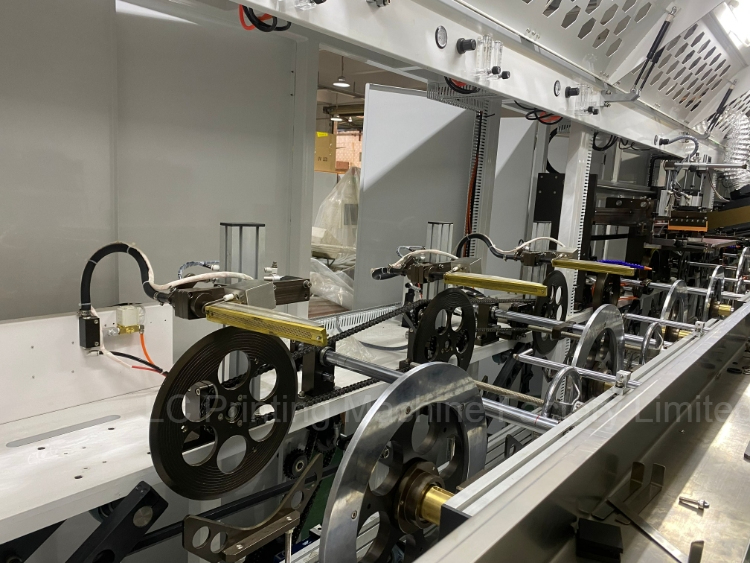

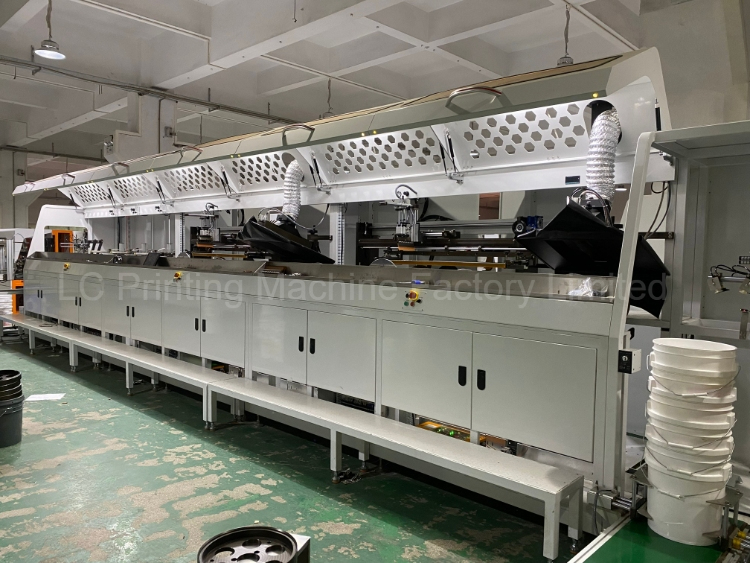

Automatic Silk Screen Printing Machine For Bucket (Main Machine)

Product name:Automatic Silk Screen Printing Machine For Bucket (Main Machine)

Model Number: S-350

Automatic Silk Screen Printing Machine For Bucket (Main Machine)
Parameters:
Automatic Silk Screen Printing Machine For Bucket
Model: S-350
Technical specifications:
1:Maximum Printing Area 900mm×250mm
2:Maximum Screen Frame Size 1200mm×400mm（L*W）
3:Min. and max. diameters of cylindrical container Ø150mm~Ø350mm
4:Min. and max. length of container 200mm~400mm
5:Max. production speed 1000pcs/hr
6:Power Requirement 380V 3phase 50Hz 12KW
7:Compressed Air Pressure Requirement 5~8bar
8:Gross Weight 3500KG Net weight: 3000KG
9:  Uploading&unloading conveyor Belt: 500mm*2000*1000mm (2pcs)（W×L×H）
Flame treatment device size( 3 flaming gun): 1500*3000*2400mm
（W×L×H）
Machine Dimension（W×L×H） 1500mm×3000mm×2400mm
Unloading robot size: 1500*1000*2400(W*L*H)
Total floor space dimension of the single color bucket machine is at 2500*7000*2400MM (included the unloading stacking device and loading belt)

Automatic Silk Screen Printing Machine For Bucket (Sub Machine)
Parameters:
Automatic Silk Screen Printing Machine For Bucket
Technical specifications:
1:Maximum Printing Area 900mm×250mm
2:Maximum Screen Frame Size 1200mm×400mm
3:Min. and max. diameters of cylindrical container Ø150mm~Ø350mm
4:Min. and max. length of container 200mm~400mm
5:Max. production speed 1000pcs/hr
6:Power Requirement 380V 3phase 50Hz 20KW
7:Compressed Air Pressure Requirement 5~8bar
8:Gross Weight 2000KG Net weight: 1700KG
9: Sub Machine Dimension(W*L*H): 1500mm×3000mm×2400mm

UV silk screen printing machine is with advantages as below:
1: Much Higher Working Capacity
2: Lower noise and perfect working stability because of the mechanical driven
3: High précised and perfect registering multi-color printing
4: Easy setting up for tooling change between oval, round and flat shape bottles and containers
5: equipped with electronic control UV curing system to adjust the UV density ranges from 0-100%

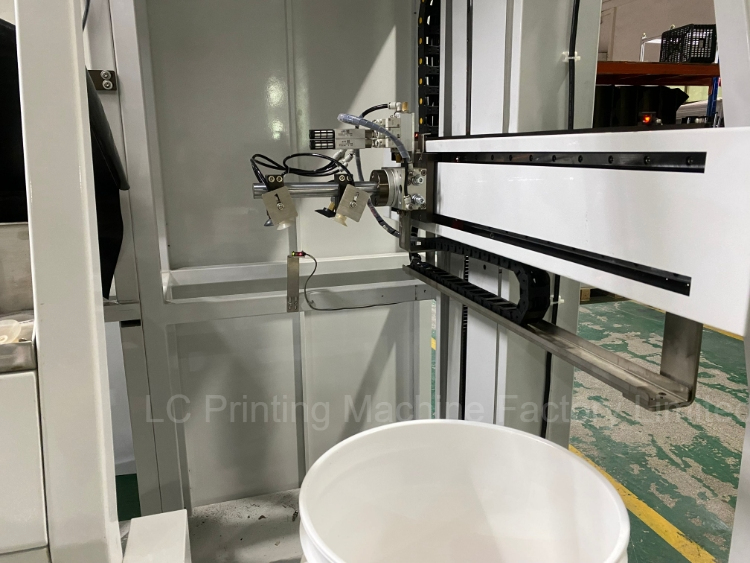

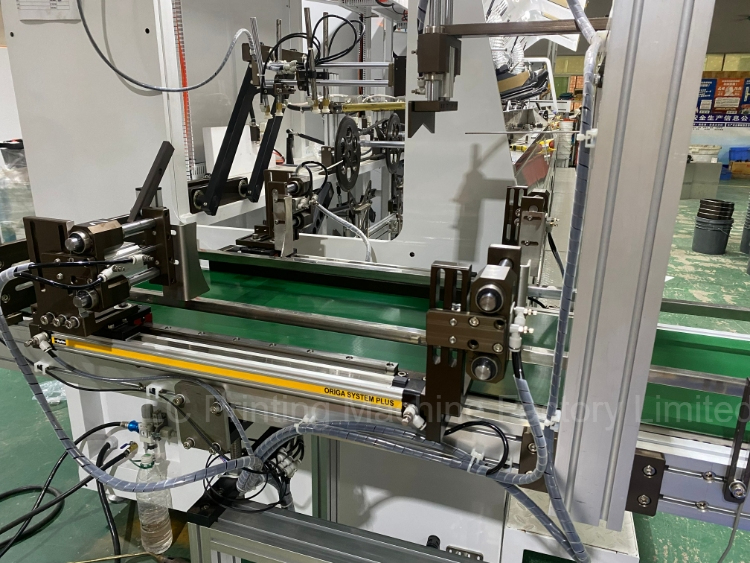

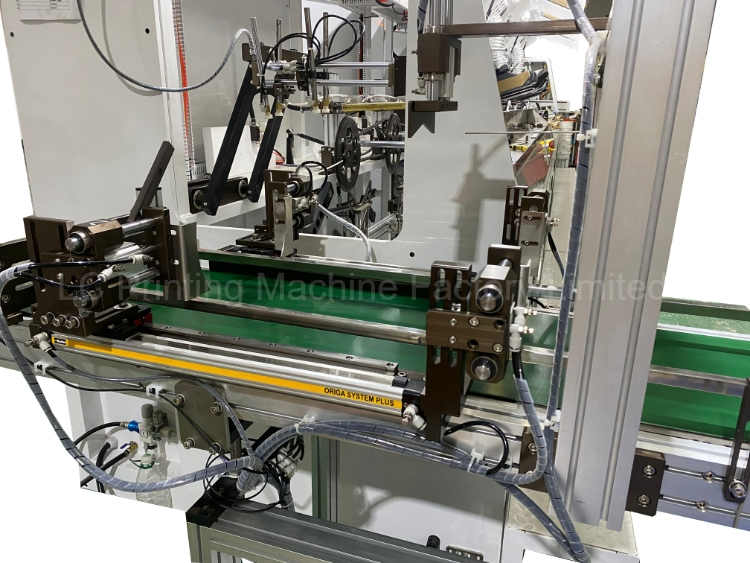

6: Automatic unloading stacking robot on the offloading conveyor belt

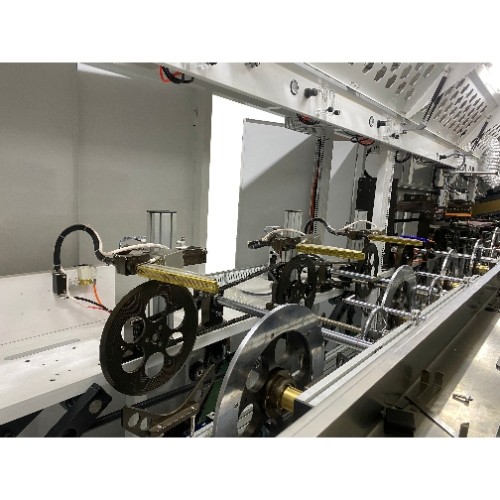

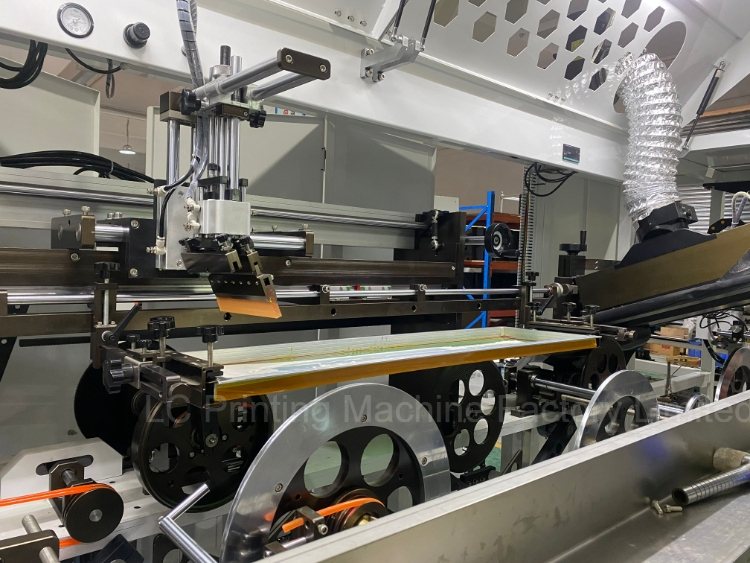

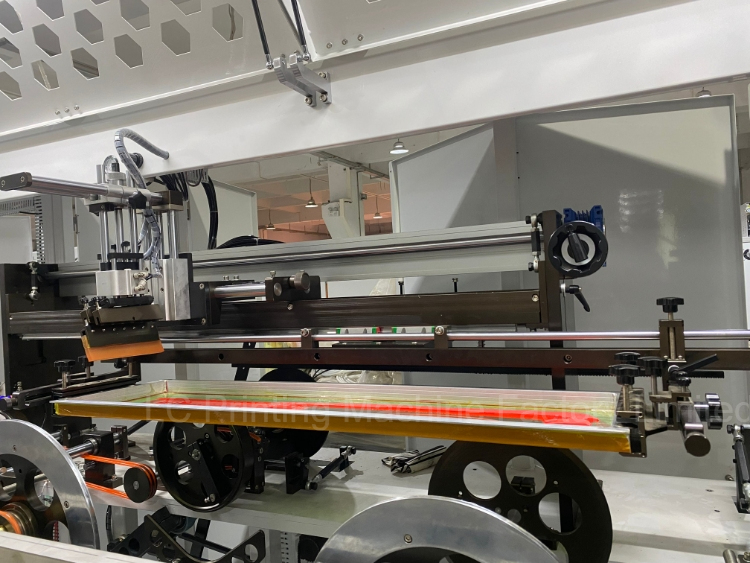

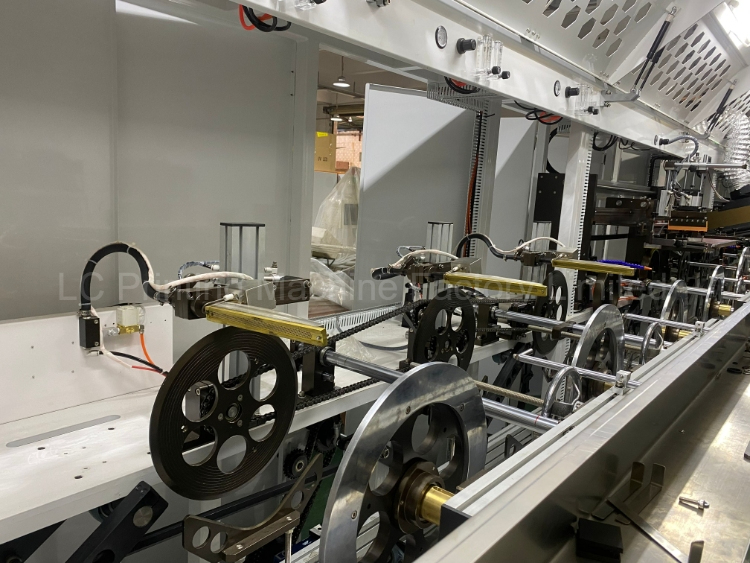

7: Silk screen frame and gear by servo motor for multi colors printing; If bucket is with ear handle needs flamer and UV by servo motor control; For single color it is no need servo control system.

Features:
1:Cam-linkage mechanisms driving mode combined with PLC control system for effectively guarantee working stability,
reliability, and most efficiency.
2:Reliability: Main components from Rexroth, Schneider, SMC, Mitsubishi international brand. The machines hardware
parts are made by CNC directly from CAD.
3: Machine Frame & structures made by high-intensity aluminum alloy and stainless steel.
4: With PLC control system, touch screen interface. Fast setup & quick tooling change over for customer's easy operation
and adjustment
5:  Adopted with No-product- no print system, auto counter,  safety alarm device.
6: Optional: Made based on the customer's special requirements. The round & oval bottles commonly used devices,
antistatic dust removing device, extra set flame treatment, UV/IR system, auto scrambler system, offloading conveyor,
offloading robot arm to have bottles stand up on the off conveyor belt and any other customizations due to order.
7: Italy Style Electronic UV Curing System for mostly power rate saving, assuring the UV lamp’s longest life span,
adjustable UV identity from 20%-100%

Uage:
This machine is desiged for the painting bucket, lubrication bucket , plastic bucket, paint barrels silkscreen printing.

For the printing colors which is request of single color, two colors and no more than 3 colors buckets, we suggest of taking this automatic bucket silkscreen printing machines. The advantage of silkscreen printing color is more durable and long life span compare with the bucket heat transfer printing quality.
