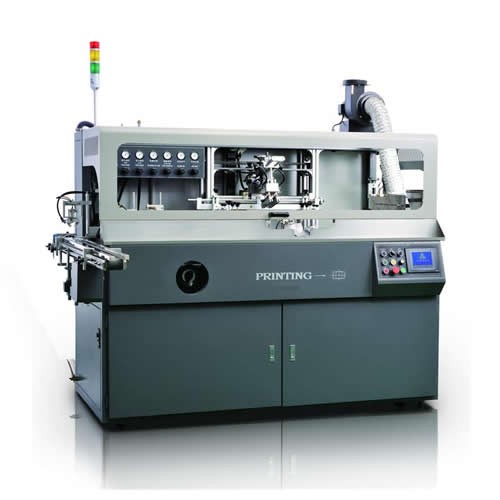

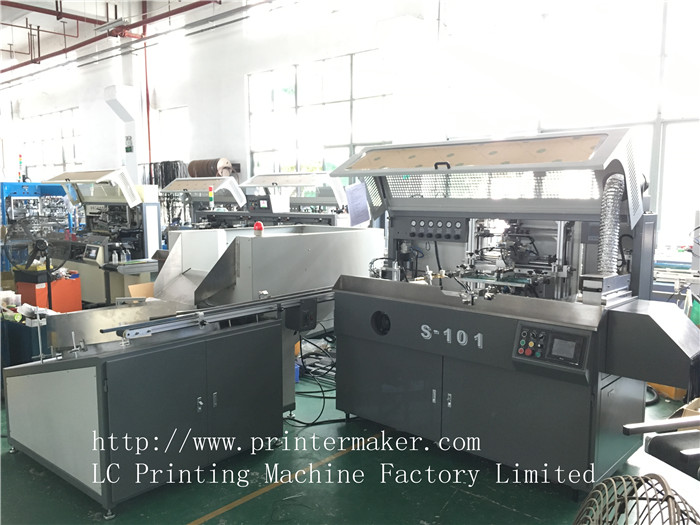

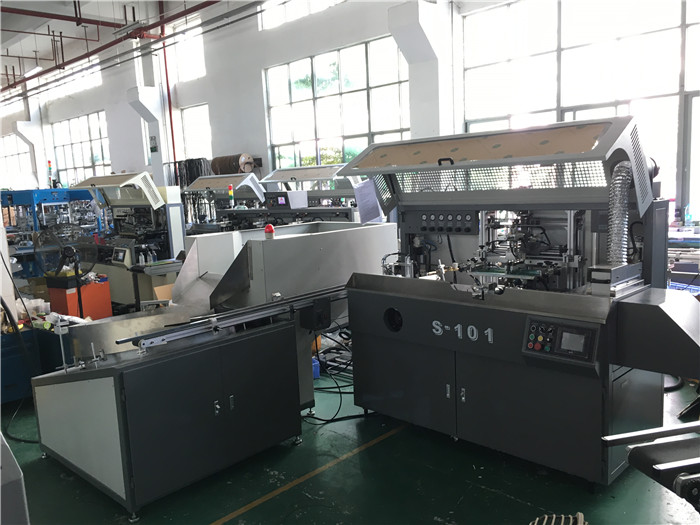

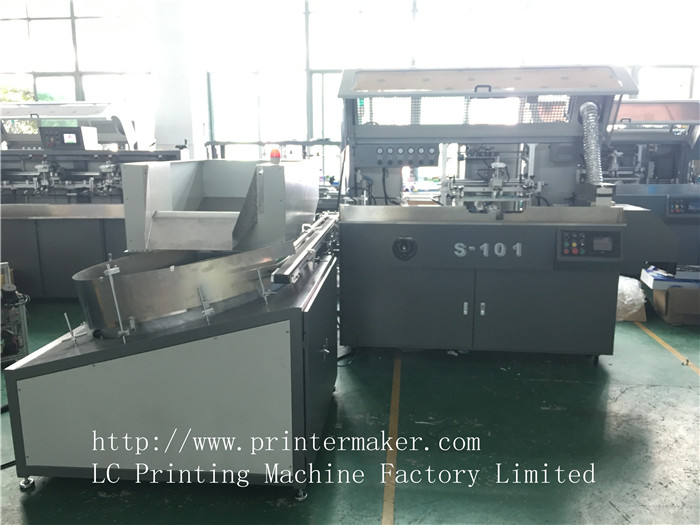

Universal Mutil-Colors Automatic Screen Printing Machine

Product name:Universal Mutil-Colors Automatic Screen Printing Machine

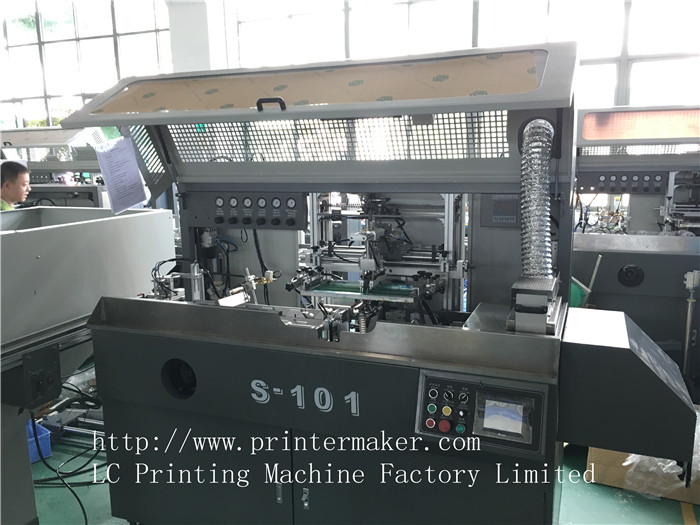

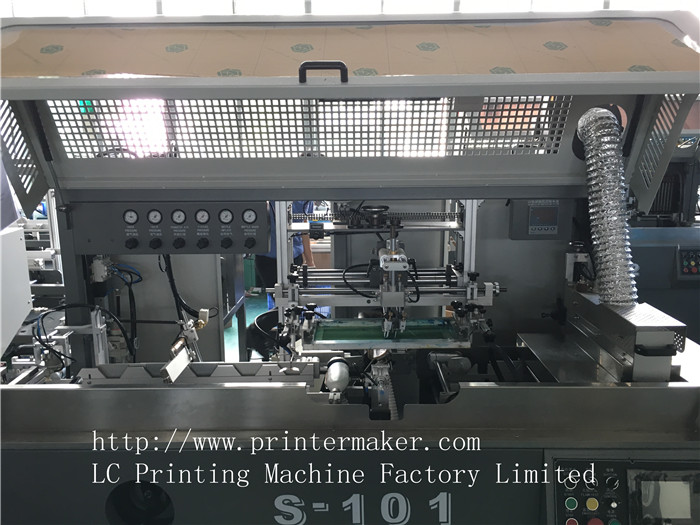

Model Number: S-101

Description:
Universal Mutil-Colors Automatic Screen printing Machine
Application:

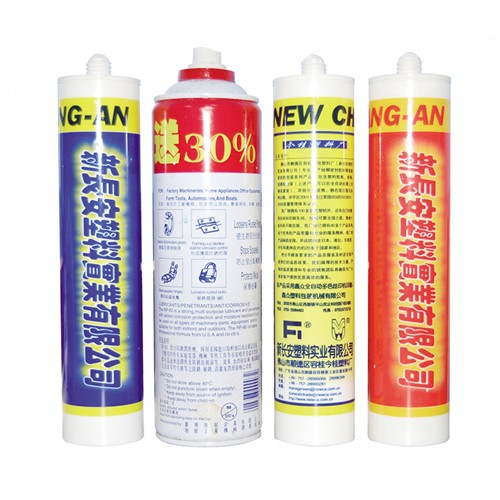

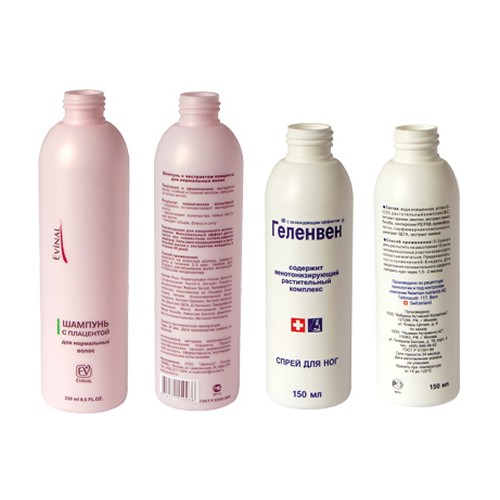

The S-101 is designed for multi-colour decoration of cylindrical/oval/square plastic/glass bottles, hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.

Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.

General Description:

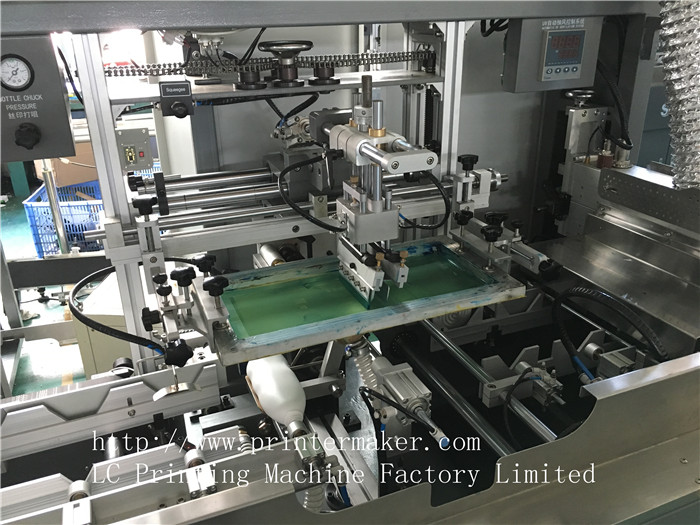

1.Automatic 1~8 color screen printing line, each unit can be separated or connected.

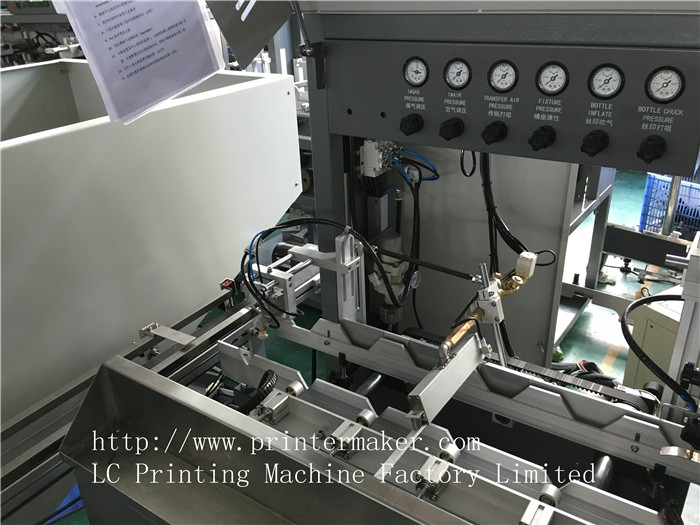

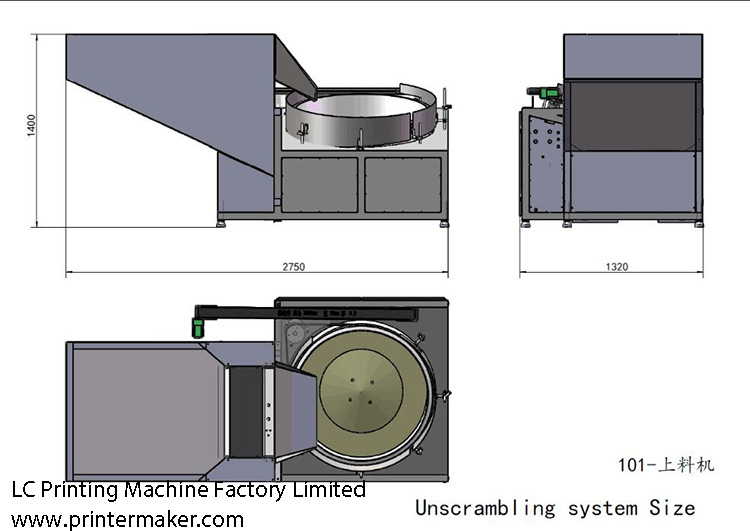

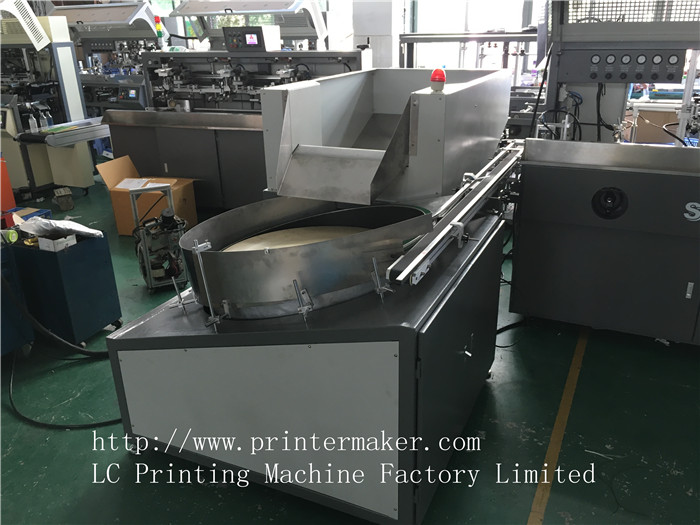

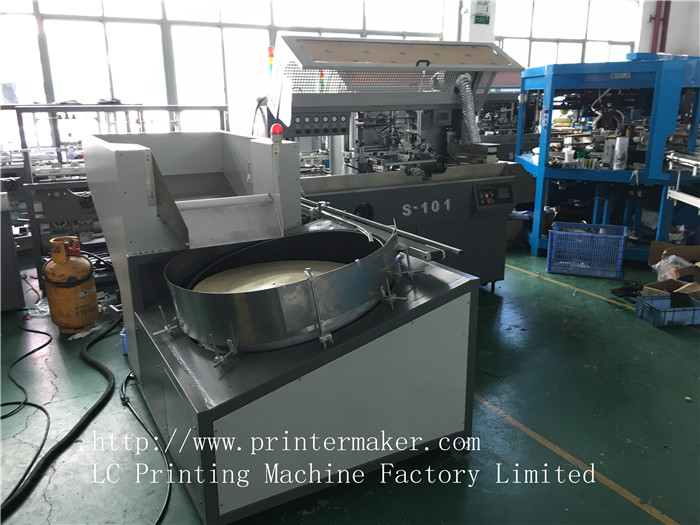

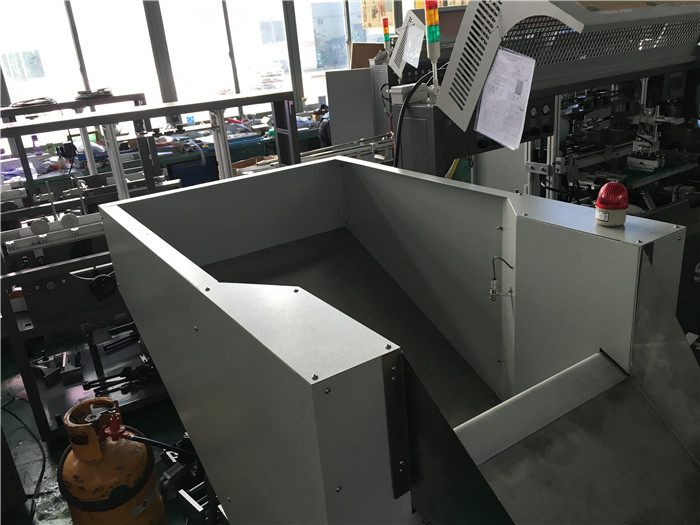

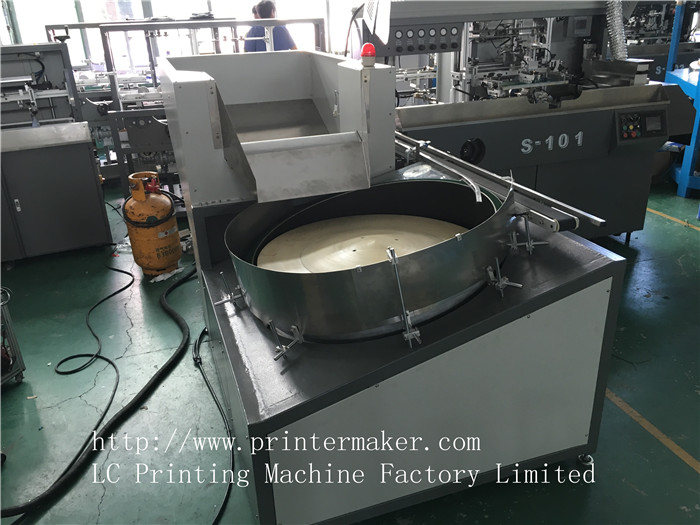

2.Automatic loading system with belt and vacuum robot (bowl feeder and hopper optional)
3.Auto flame treatment

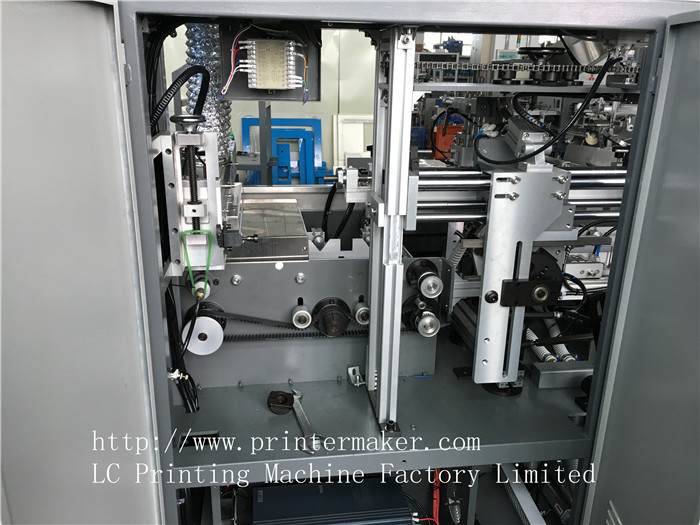

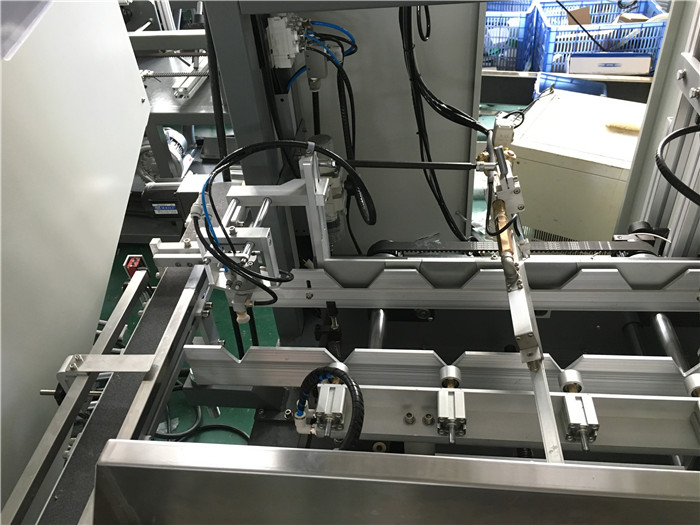

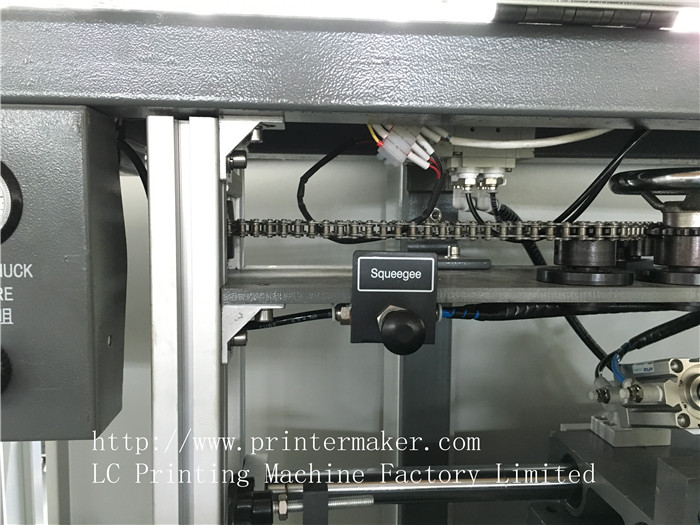

4.Perfect transmission system. It passes over the bottles fast and smooth.
5.Automatic 180 degree rotation for oval and square bottles
6.Quick and easy change over from one product to another.

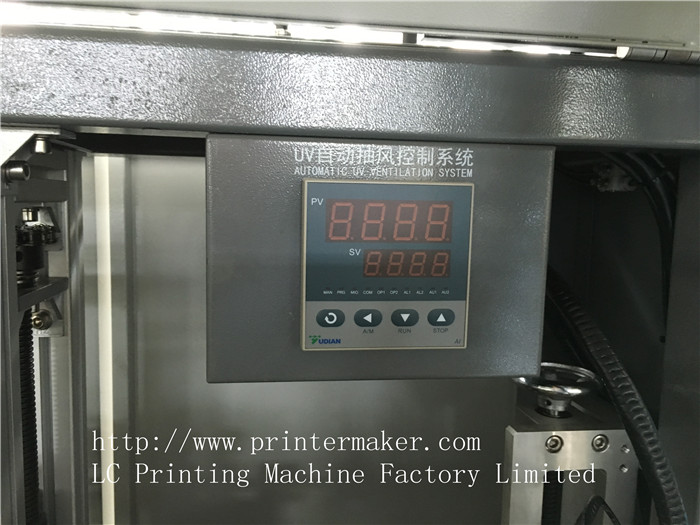

7.LED UV curing system with longer life time and energy saving, electric UV system optional.

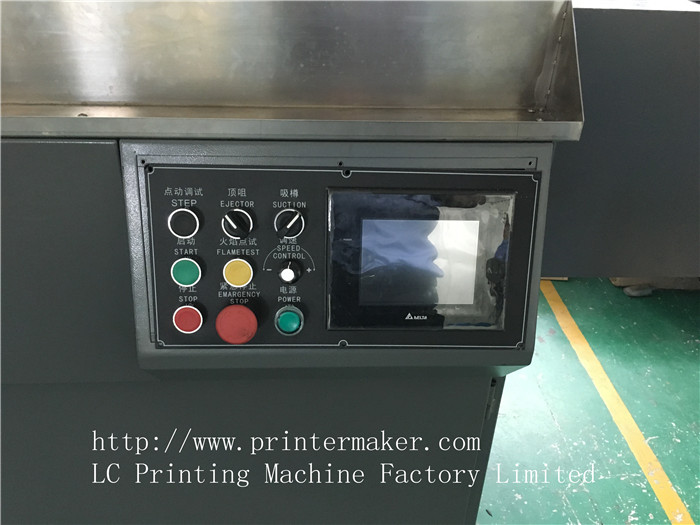

8.Reliable PLC control with touch screen display
9.Promise of quality with SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional.
10.Automatic unloading

Procedure:
Auto loading onto belt—flame treatment—printing—UV drying —next color printing and drying—auto unloading

Tech-data:
Parameter Item

S-101 1-8 color automatic screen printer

Machine Dimension (each color):

1908*1000*1500mm
Power:380V 3 phases 50/60Hz
Air consumption:5-7 bars
Round container
Printing  Diameter:20-100mm
Printing Length:25-300mm

Max printing speed:4000pcs/hr

Oval container:

Printing Width:25-120mm
Printing Length:25-300mm
Max printing speed:5000pcs/hr
Square container:
Printing length:100-200mm
Printing width:40-100mm

Max printing speed:4000pcs/hr
