Six Colors Pad Printing Machine with Conveyor

  • Model Number: EP6C-150T
  • Product price: US$:negotiated
  • Category: Economic Ink Cup Pad Printer
  • Views: 4238
  • Product Description:Six Colors Pad Printing Machine with Conveyor
  • PRODUCT DETAIL
  • Video
  • Packing Photo

Product name:Six Colors Pad Printing Machine with Conveyor

Model Number: EP6C-150T

Description:

Price:6500USD

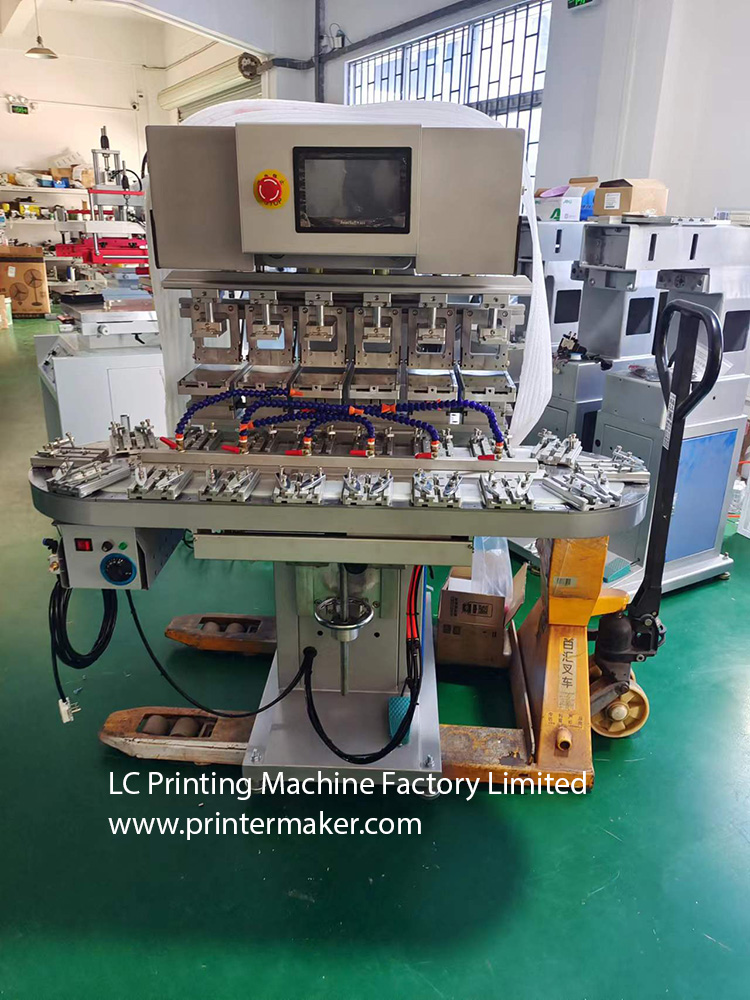

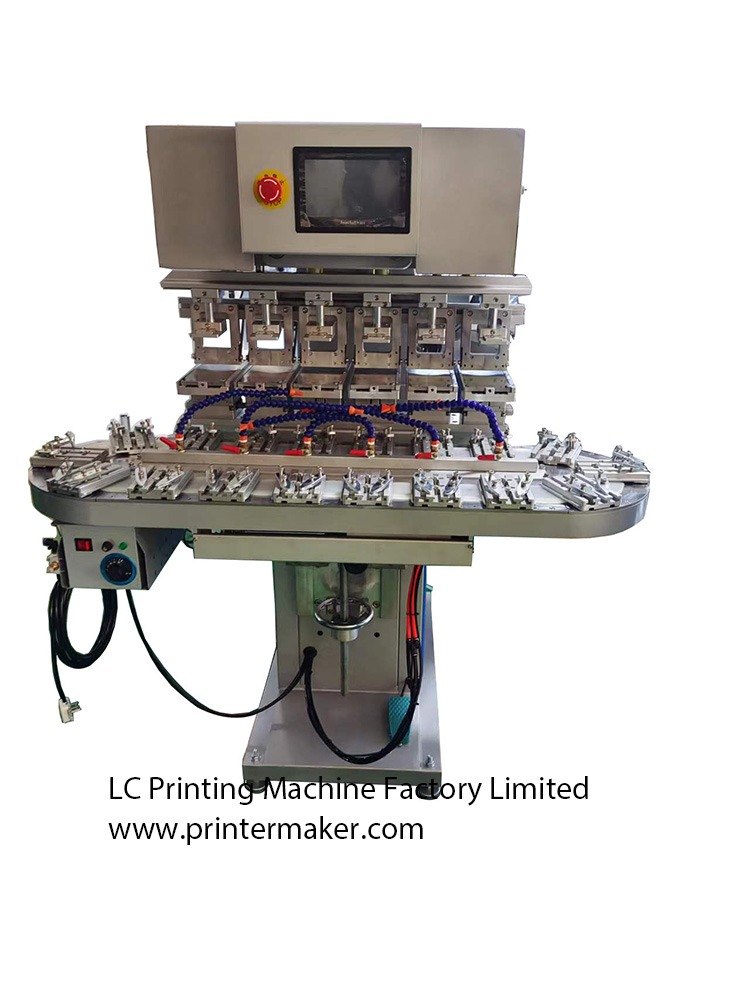

Six Colors Pad Print Machine with Conveyor
Technical Parameters
Item  No.:                   EP6C-150T
Max.Printing Size:       80x80mm
Steel Plate Size:          100x250mm
Power:                       110/220V 50-60HZ 30w
Transverse Stroke:     200mm
Vertical Stroke:          75mm
Printing Workstation:  18pc
Air Consumption:       5-7bar
Printing Speed:          1500pcs/hr
Machine Size(LxWxH) 102x95x150mm
Weight:                    400kg
Automatic Grade     Semi-automatic
Color & Page:         Six colors
Warranty:               One year
Application
Bottle Caps, Balls (Golf & Tennis)
Electrical items – MCB, Bulbs, CFL, Switches
Stationary items – Pens, Paper Weight, Staplers, Punching Machine, Logo on Diaries

Gifts and Novelties – Key Chains, Lighters, Bottles

Feature

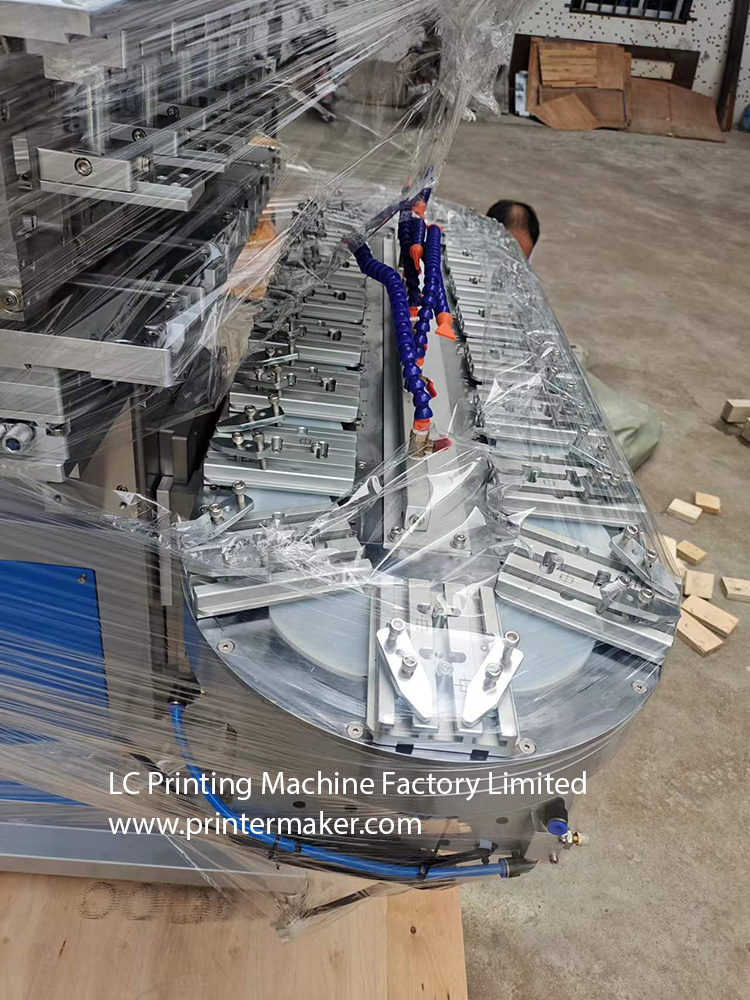

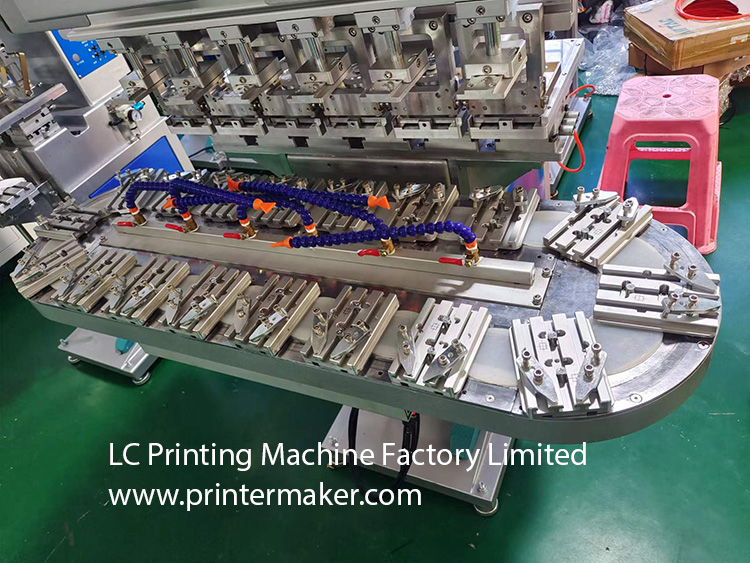

EP6C-150T Six Colors Pad Print Machine with Conveyor, conveying products by rotary type turntable. The products can be overprinted with 6 colors. Running a circle can finish one time overprint. Comparing with shuttle pad printer, it come to a high steps. It can print bigger products with 6 color with fast. It's suitable for printing logo on the surface of electronic products, plastic shell, hardware, stationery etc.

Function

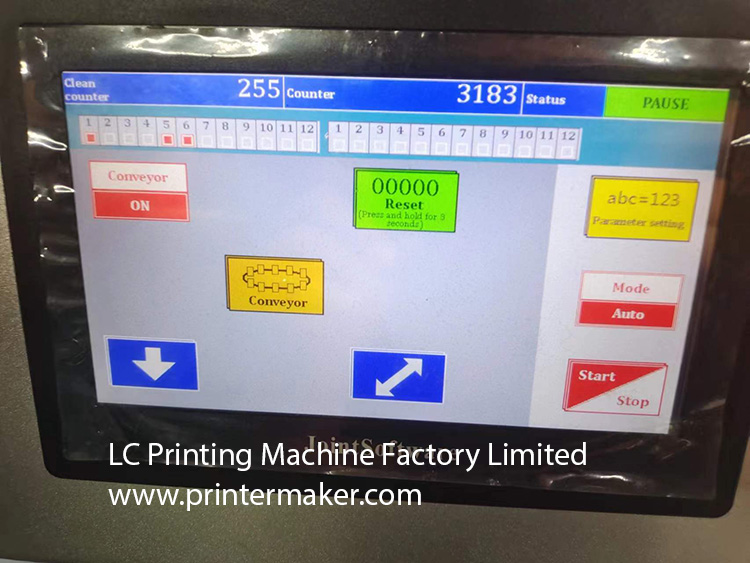

1. With microcomputer-controller, semi-automatic, utility function, and the operating procedures are flexible and reliable.
2. With aluminum alloy structure frame and metal coating surface, the machine is easy to move but steady
3. With function of leveling ink by sliding automatically on front /back, avoiding printing ink partial solidification
4. Adjustable inking pressure and printing speed meets different printing requirements

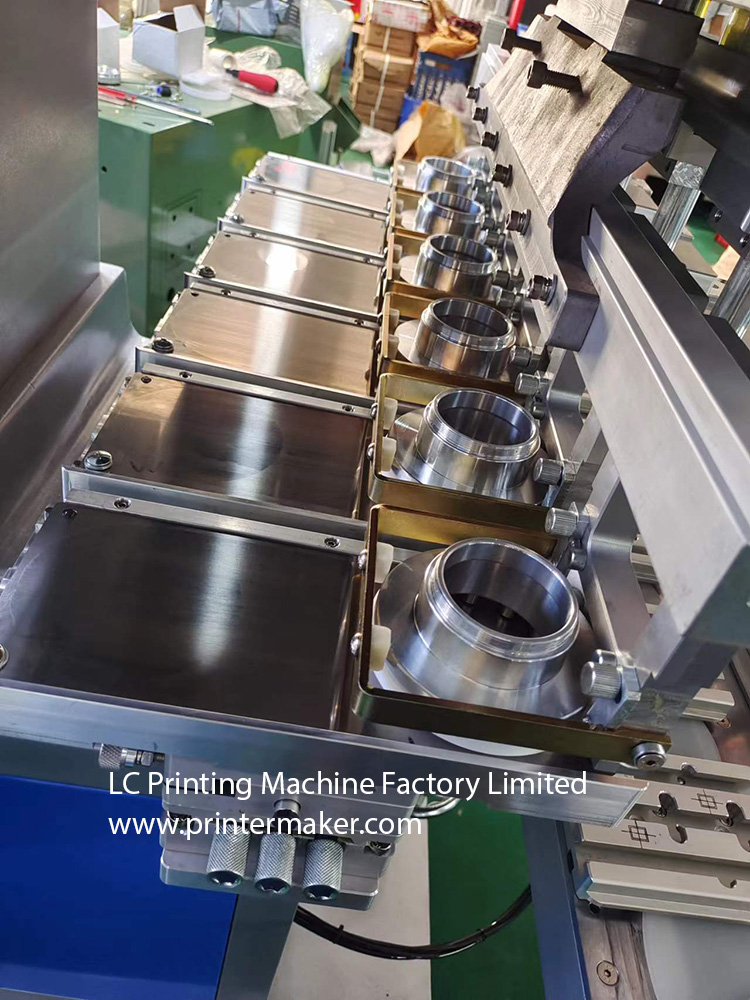

5. Use the oil cup to inking , pro-environment and easy to disassembly & assembly , avoid wasting ink.
6. 360° adjustable rubber pad angle and ±5° adjustable worktable angle ensure repeat precision to be less 0.05mm
7. Worktable, plastic head and ink tray can be adjusted X. Y. Z direction
Accessories
1. Seal Cup with Metal Ring x 1 piece
2. Thin Plate x 1 piece
3. English Manual x 1 piece

4. Tooling Box x 1 set


Six Colors Pad Printing Machine with Conveyor
