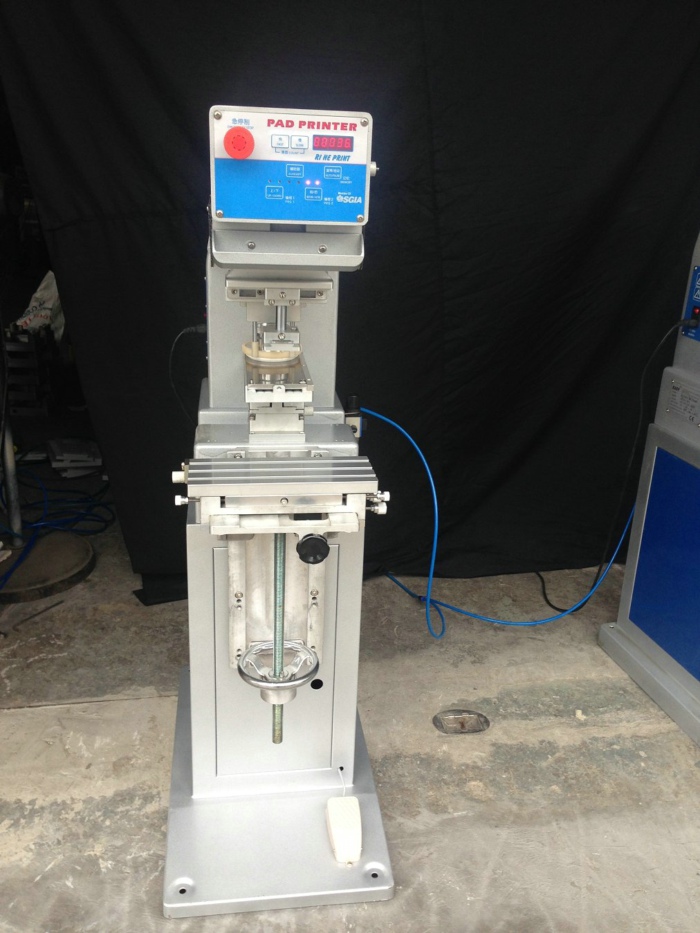

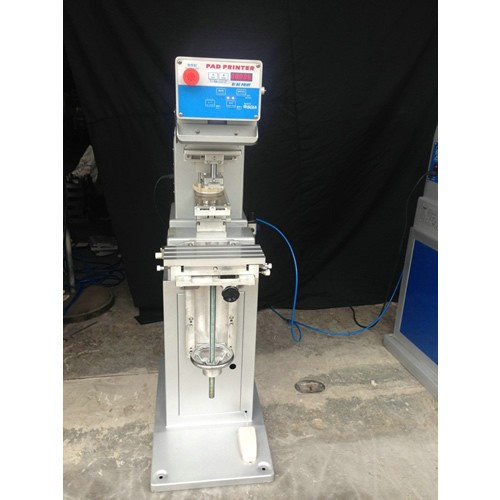

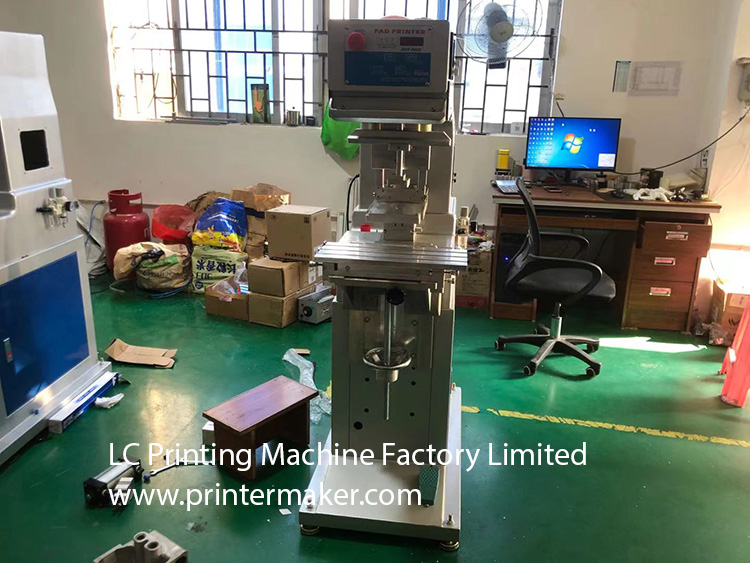

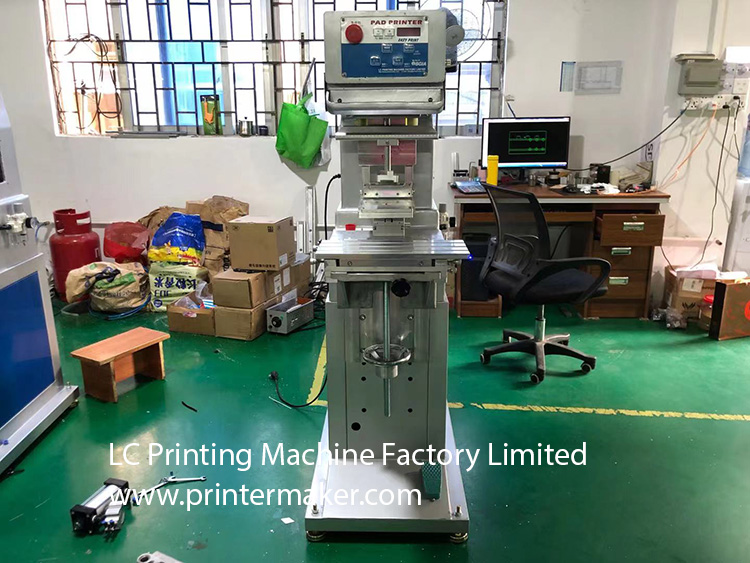

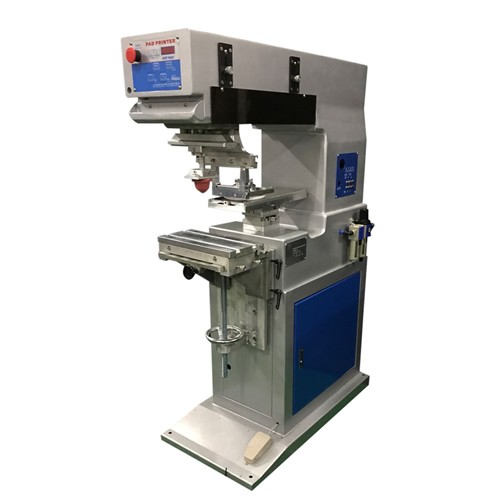

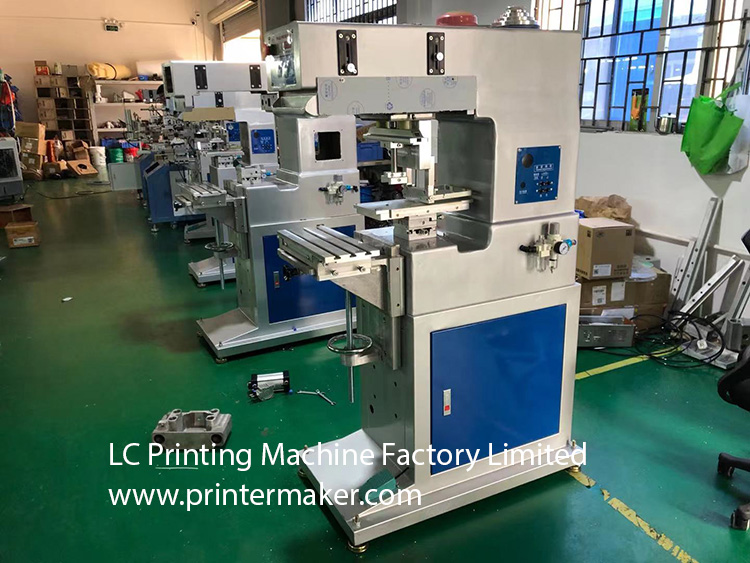

Economy 1 Color Ink Cup Pad Printing Machine

Product name:Economy 1 Color Ink Cup Pad Printing Machine

Model Number: EP1-150T

Description:
Economy 1 Color Ink Cup Pad Printing Machine
EP1-150T Ink cup one colour pad printer can ensures environmental, safe, it is comply with CE Starderand, ease operateing, to consume ink that frugal. Help to reduce any solvents evaporating from the ink too quickly and also helps to keep the ink at a constant temperature.
THIS ITEM Pad printer to fit pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package products, bos, , hosehold, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.
1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. ink cup is turnable and adjustable in vertical and horizontal direction.

8. With super long slide stroke to print large size workpiece.

1. Model No:EP1-150T
2. Operation: Pneumatic
3. Printing Colors: 1
4. Max. Printing area: 80*135mm
5. Plate area: 100*250 mm

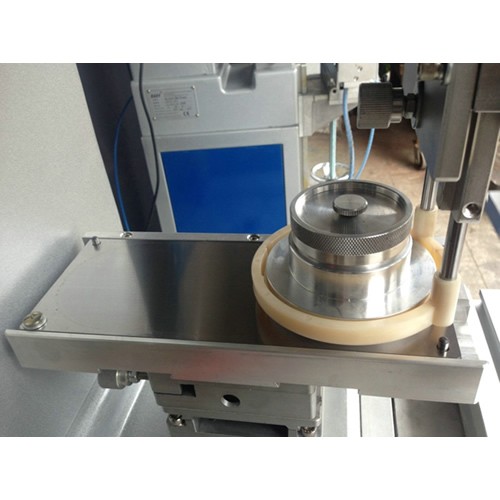

6. Sealed ink cup diameter: 60 or 90 mm
7. Max printing speed: 1800PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 75× 42× 135cm
11. Machine weight: 95kg
12. Packing size:81*51*150cm
13. Goss Weight:135KG
Single Color Ink Cup Pad printer  (120mm ink cup diameter)

1. Model No:EP1-250T
2. Operation: Pneumatic
3. Printing Colors: 1
4. Max. Printing area: 120*100mm
5. Plate area: 100*250 mm
6. Sealed ink cup diameter: 120 mm*110mm
7. Max printing speed: 1800PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 75× 42× 135cm
11. Machine weight: 135kg
12. Packing size:87*56*153cm
13. Goss Weight:165KG

1. Mode: EP1-300T
2. Operation: Pneumatic
3. Printing Colors: 1
4. Max. Printing area: 250*135mm
5. Plate area: 150*300 mm

6. Sealed ink cup diameter:135 mm
7. Max printing speed: 1400PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Pad Print stoke: 90mm
11: Front and Back stroke: 150mm
12: Max. product height: 300mm
13. Machine size: 90×83× 155cm
14. Machine weight: 160kg
15. Packing size:101*100*160cm
16. Goss Weight:185KG

1. Mode: EP1-360T
2. Operation: Pneumatic
3. Printing Colors: 1
4. Max. Printing area: 250*135mm
5. Plate area: 160*360 mm
6. Sealed ink cup diameter:150 mm
7. Max printing speed: 1400PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Pad Print stoke: 90mm
11: Front and Back stroke: 150mm
12: Max. product height: 300mm
13. Machine size: 90×83× 155cm
14. Machine weight: 170kg
15. Packing size:101*100*160cm
16. Goss Weight:195KG

Machine fitting:

1. One pcs steel plate

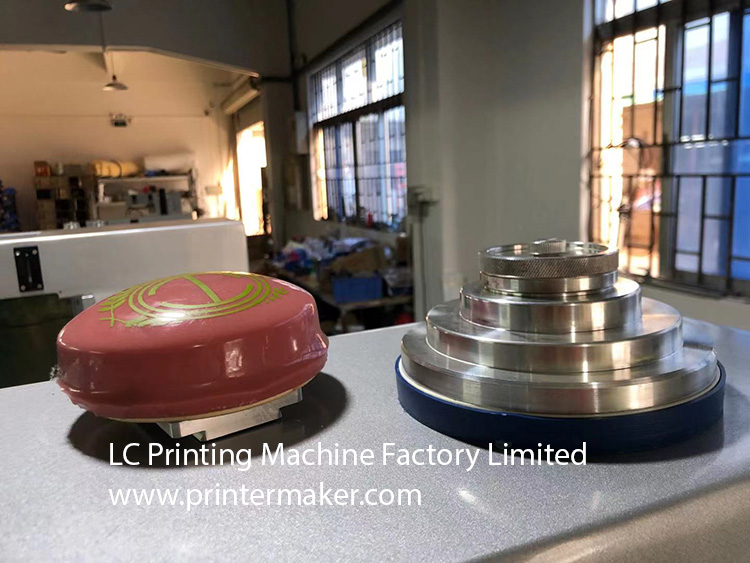

2. One pcs rubber pad
3. Work box
4. English operating instruction
