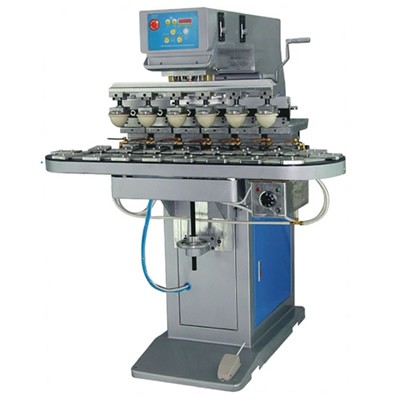

Six Color Ink Cup Pad Printing Machine with Conveyor

  • Model Number: M6-250C/18T
  • Product price: US$:negotiated
  • Category: Ink Cup Pad Printing Machine
  • Views: 5554
  • Product Description:Six Color Ink Cup Pad Printing Machine with Conveyor
  • PRODUCT DETAIL
  • Video

Product name:Six Color Ink Cup Pad Printing Machine with Conveyor

Model Number: M6-250C/18T

Six Color Ink cup Pad Printing Machine with Conveyor
Function
1.Controlled by microprocessor,easy operation,running stably and accurately.
2.4-digit auto counter built-in.
3.Cast aluminum machine frame,low weight and high intensity,turnable machine head.
4.Separate adjustment of the pad up/down stroke speed.
5.ink scraper is auto balance keeping in printing.
6.With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7.ink cup is turnable and adjustable in vertical and horizontal direction.
8.Super long slide stroke to print large size workpiece.
9.Speed of every single pneumatic organ is adjustable

1. Model NO:M6-250C/18T
2. printing Colors:6
3. Plate area:100*250mm
4. Sealed ink cup:¢90 mm
5. printing area:80*135
6. Conveying Stations jigs:18
7. Max printing speed:1500PCS/H
8. Power Supply:220V/ 50HZ 110V/60HZ
9. Air pressure:4-6pa
10. Machine Size:145×145×160cm
11. Net Weight: 285KG
12. Packing List: 150*150*175cm
13. Gross Weight: 400KG

Free Fiting
1.6 pcs rubber pad
2.6 pcs steel pad plate
Price Terms --FOB or CFR
Payment Terms --T/T or L/C
Packing-- Wooden case
Lead Time ---5 days after confirm deposit
Standards Certificate--- CE
Cubic Meter ---1.82
Main Parts SMC MADE BY JAPAN
Price Terms︰ FCA GUANGZHOU
Payment Terms︰ T/T WESTUNION
Packing︰ WOODEN CASE
Lead Time︰ 5 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Cubic Meter ︰ 3.3
Machines Fittings ︰ INK CUPS ,STEEL PLATES, SILICONE PADS,
Main Parts︰ CYLINDER MADE BY SMC
Application area︰ TOYS, PENS
Six Color Ink Cup Pad Printing Machine with ConveyorSix Color Ink Cup Pad Printing Machine with ConveyorSix Color Ink Cup Pad Printing Machine with Conveyor
