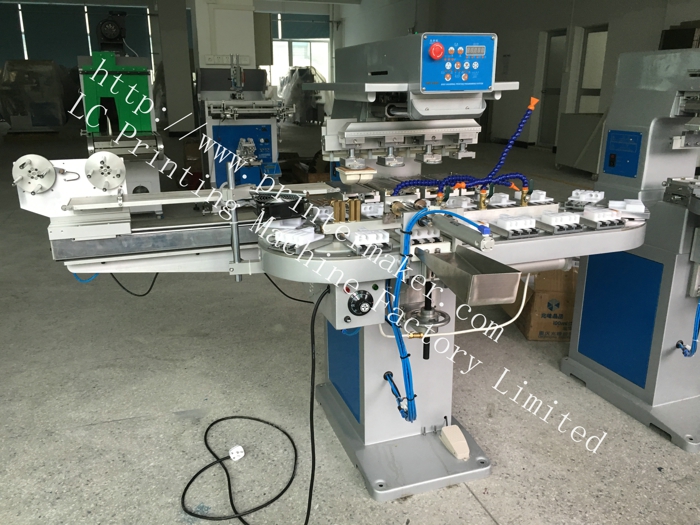

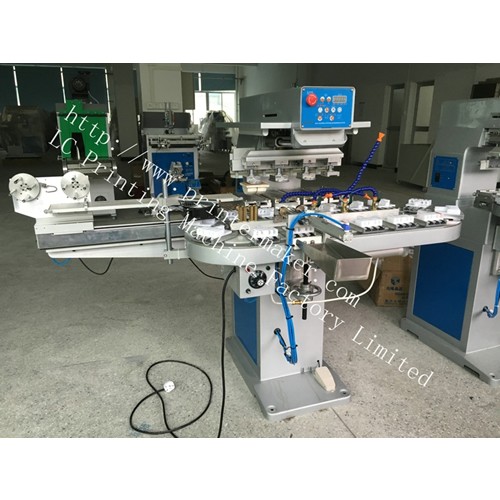

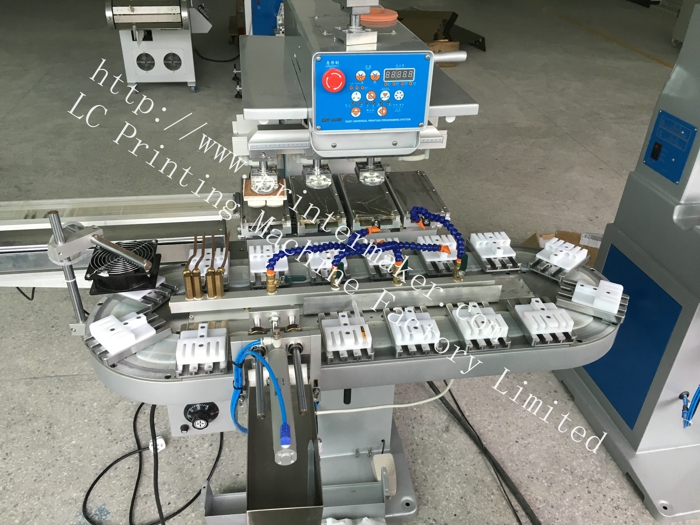

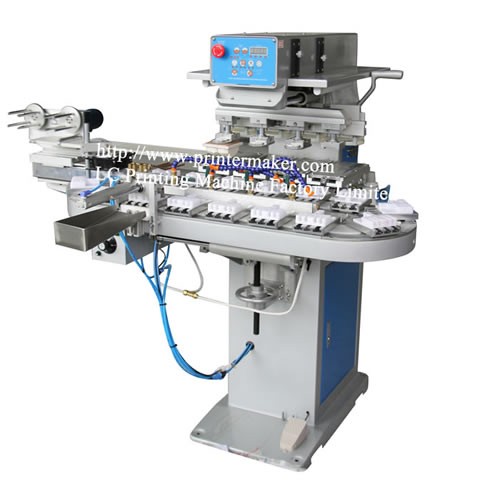

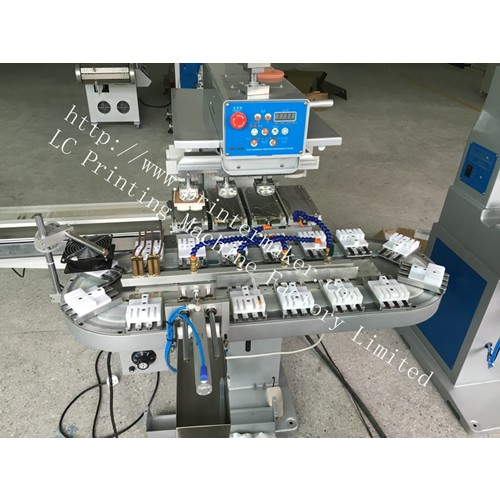

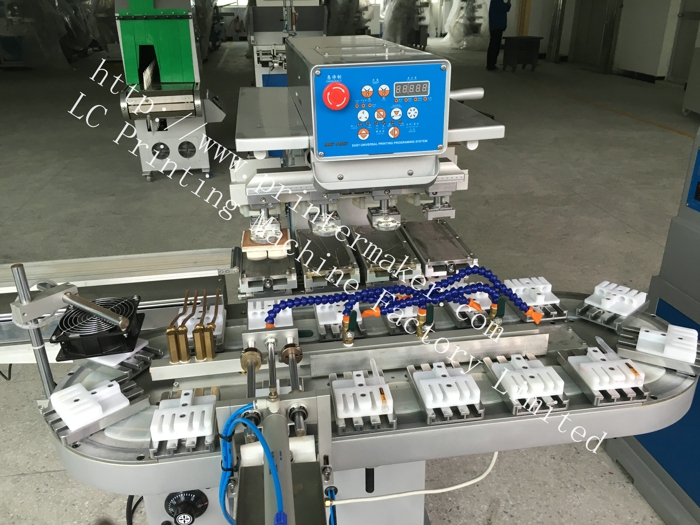

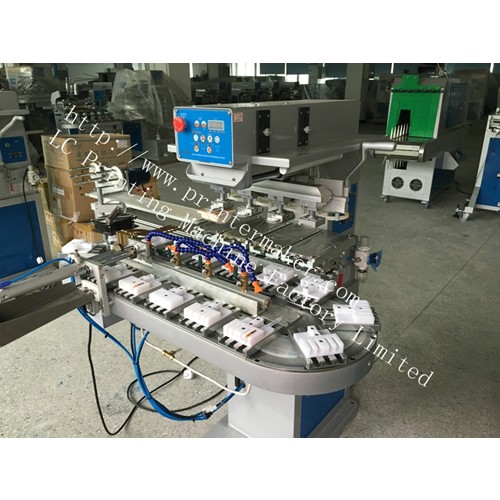

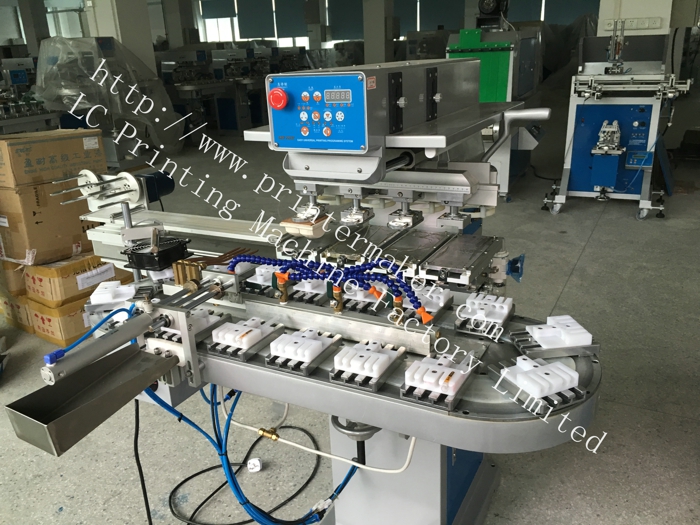

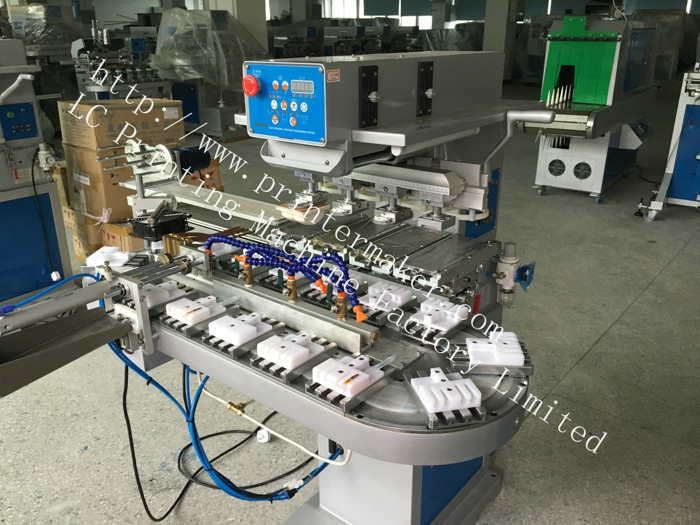

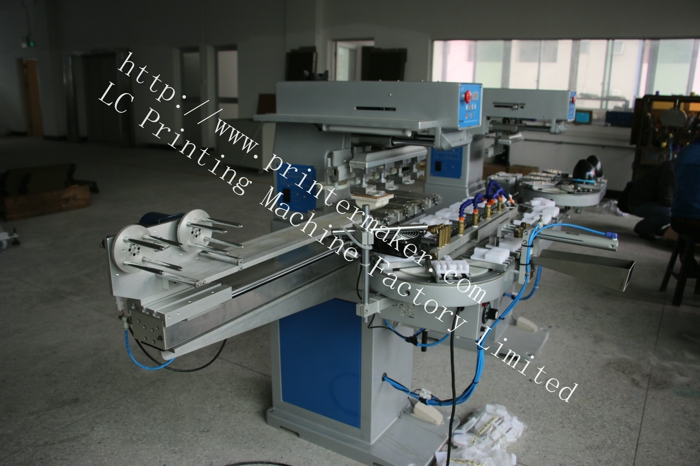

4 Colors Ink Cup Pad Printing Machine with Auto Clean Ruber Pad System

Product name:4 Colors Ink Cup Pad Printing Machine with Auto Clean Ruber Pad System

Model Number: S4-250TAC

4 Colors Ink Cup Pad Printing Machine with Auto Clean Ruber Pad System
Specifications :
1. Model NO:S4-250T
2. Operation: Pneumatic
3. Printing Colors: 4
4. Plate area: 100*250mm
5. Sealed Ink cup: 90 mm
6. Printing area: 80*135mm
7. Conveying Stations jigs: 1
8. Printing speed: 900PCS/H
9. Power Supply: 220V/ 50HZ 110V/60HZ
10. Air pressure:4-6Ba
11. Machine Size:70*75*138cm (with lifted handle)*
12. Net Weight :140KG
13. Packing Size:83*83*150cm........
14. Gross Weight:185KG
Features:

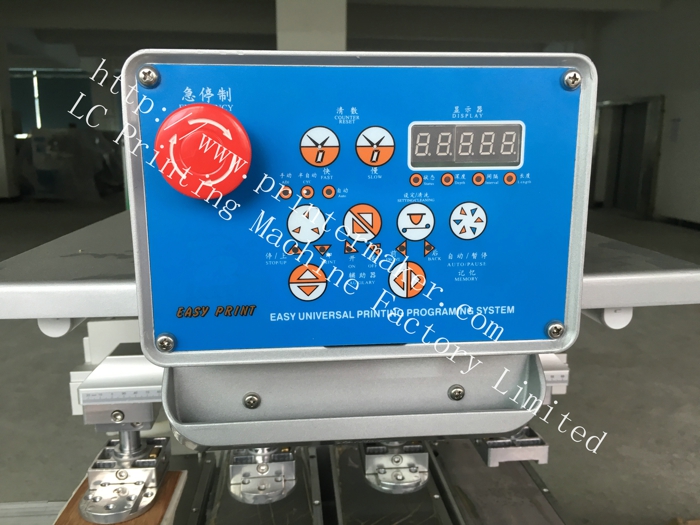

1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent ink from drying.

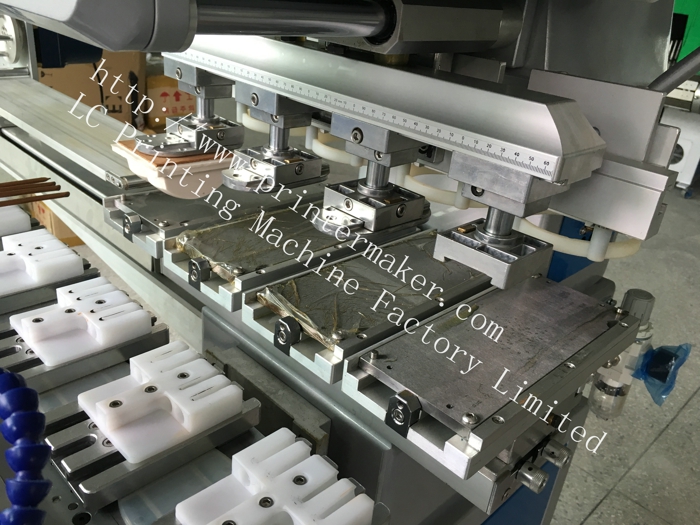

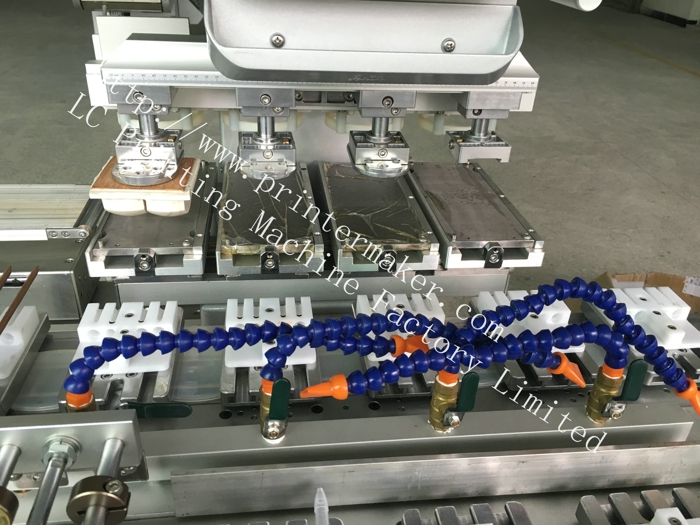

7. ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.
10: Japan SMC & Germany Festo Cylinders and all phnumatic Parts for assuring machine's best working stability, humanlize adjustment, longest lift span.
Free Fitting:
1. Four pcs steel plate
2. Four pcs rubber pad
3. English operating instruction
Price Terms ---FOB or CFR
Payment Terms--- T/T or LC
Packing ---Wooden Case
Lead Time ---5 days after confirm PO
Standards Certificate ---CE
Cubic Meter--- 1.5
Main Parts SMC CYLINDER (MADE BY JAPAN )
Description:
Four color pad printer ( tampo printing machine ) with close ink cup ensures that is
environmental, safe, it is comply with CE Starderand, ease operateing, to consume ink that
frugal. Help to reduce any solvents evaporating from the ink too quickly and also helps to
keep the ink at a constant temperature.
It is to fit pad printing plastic products, same as toyes, gift products, pen, PE products,
golf ball package products, bos, , hosehold, stationery, pen, ball, electron products,
mobile phone, bottle. Metals products, furniture fittings
