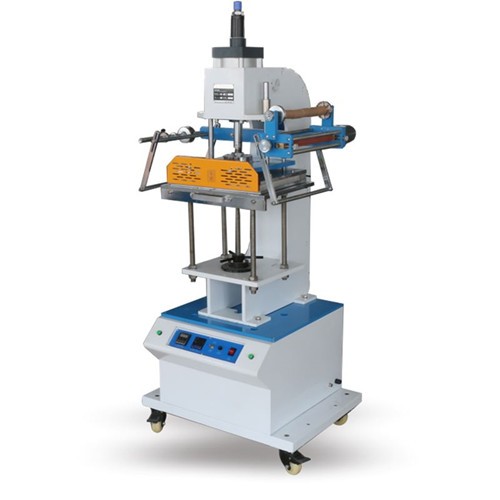

Semi-Automatic Hot Stamping Machine

Large Item Hot Stamping Machine with adjustable height

The machine is suitable for printing foil logos on auto parts, air conditioner shelves, cooker shelves, etc, large sized plastic objects.The pressure of the equipment is 800kg, the maximum adjustment height reaches 250mm, the balance of the worktable and the heating plate can be adjusted separately, the bronzing paper can follow the operation of the product or not operate in the fixed position two ways, suitable for different products hot stamping process, the equipment can be installed automatic entry and exit worktable device to make the equipment more safe.

Model：H-819
Power：2500W
Voltage：220V 50HZ
Temperature：MAX350℃
Speed：10-30pcs/min
Workable area:330x460mm
Heating area:300x400mm
Hot Stamping Centre size:190mm
Max Product Hight:0-250mm
Net Weight:274KG
Gross Weight:302KG
Machine Size:650*750*2030mm
Packinsg Size:710*810*2200mm

Features:

1. The processing height is adjustable that can fit for more height products.

2. Digital meter displays accurate time down to 0.01second.

3. It is equipped with hydraulic device to supply with enough pressure.
