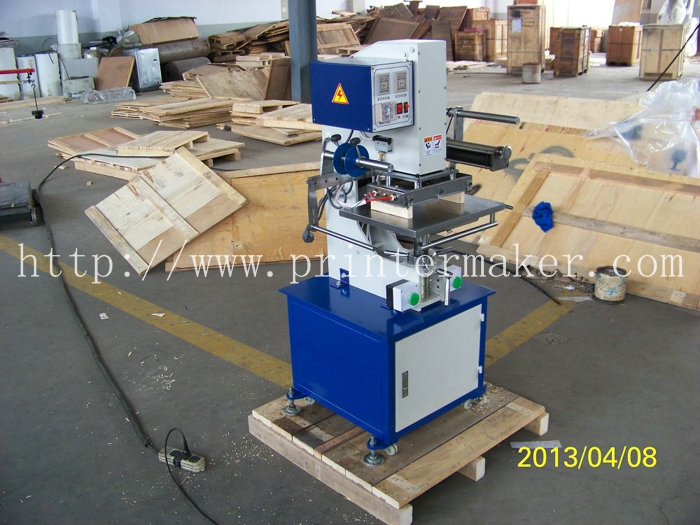

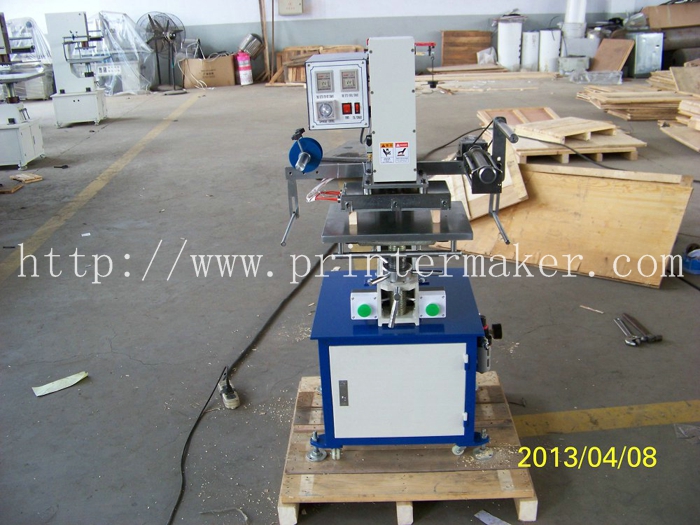

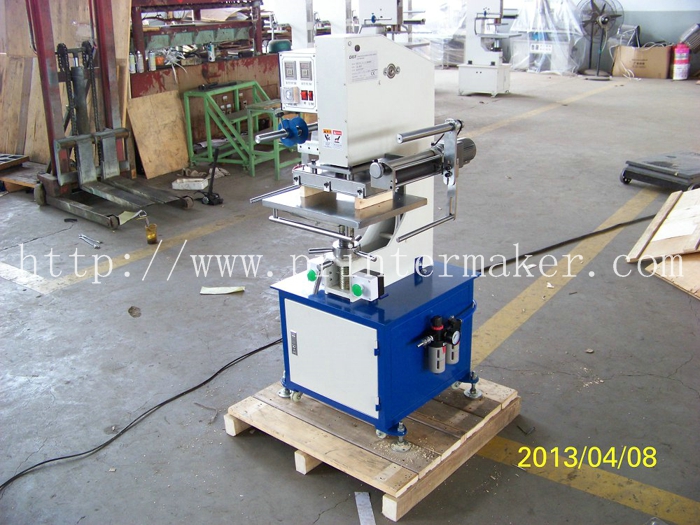

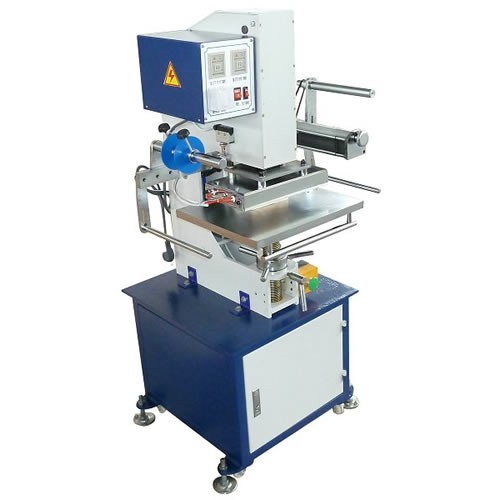

Pneumatic Flat Hot Stamping Machine

Product name:Pneumatic Flat Hot Stamping Machine

Model Number: HS-HP156

Description:
Pneumatic Flat Hot Stamping Machine
Specifications︰
HS-HP156
1. Hot plate area:156× 300 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000－3000 Kg
4. Up and down distance:45mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
8. Packing Size: 800*800*1550MM
9. Gross Weight: 250kg.
HS-HP190
1. Hot plate area:190 × 270 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000－3000 Kg
4. Up and down distance:45mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
HS-HP250
1. Hot plate area:250 × 300 mm
2. Working table area:320 ×400mm
3. Max printing pressure:5000 Kg
4. Up and down distance:45-80mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
8. Packing size: 80*80*155CM
9: Net weight: 300kg ; Gross weight: 350kg
HS-HP210
1. Hot plate area:210 × 290 mm
2. Working table area:320 ×400mm
3. Max printing pressure: 5000 Kg
4. Up and down distance:45mm -80mm
5. Heat wattage:3000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
8. Packing size: 80*80*155CM
9: Net weight: 300kg ; Gross weight: 350kg
Advantages︰
1.Vertical Pressure design ensures big pression;
2.Capable of adjusting the stamping pressure, the temperature and the speed;
3.Worktable slight adjustment ensure precision stamping;
4.The height of the stamping head adjustable ;
5.Automatic foil feeding and collecting.
6.Photecell installed to finsih heat transfer process.
Machine Fittings︰
1. Silicon Rubber Edition 1 Pic
2. High temperature paper 1 inch
3. Stamping foil 1 roller
4. English operation instruction one Pic
5. Tool box 1 pic.

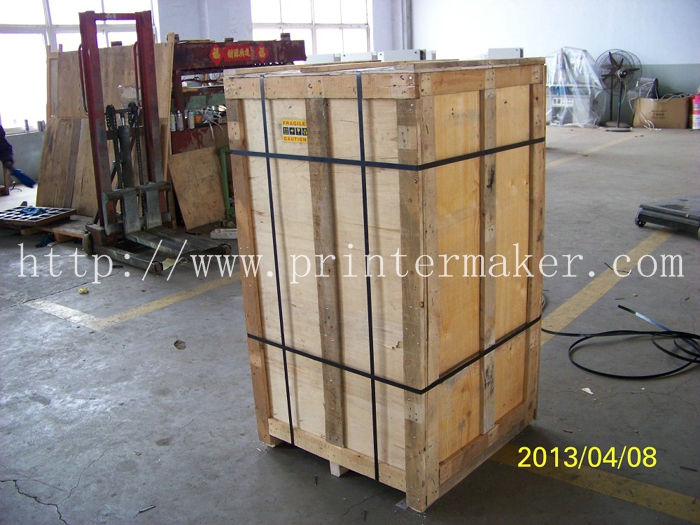

Package List︰
1. Package dimension:81×80×147CM*
2. Gross weight: 236kg
