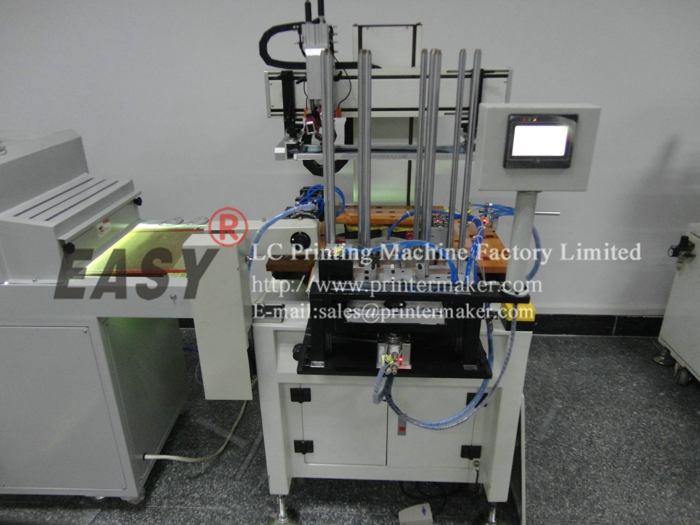

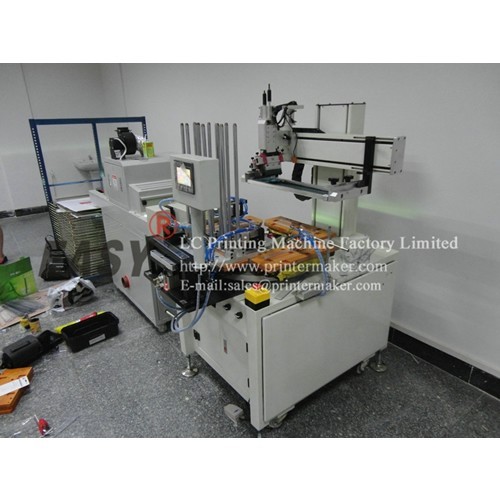

Ruler High Speed Automatic Screen Printing Machine (With UV curing system)

Product name:Ruler High Speed Automatic Screen Printing Machine (With UV curing system)

Model Number: HSP-2030

Description:

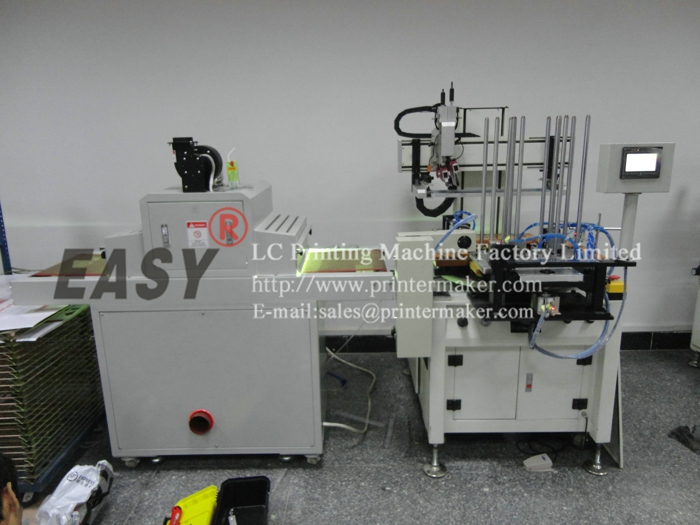

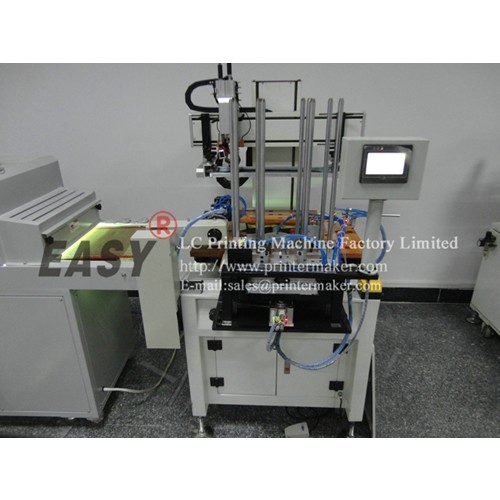

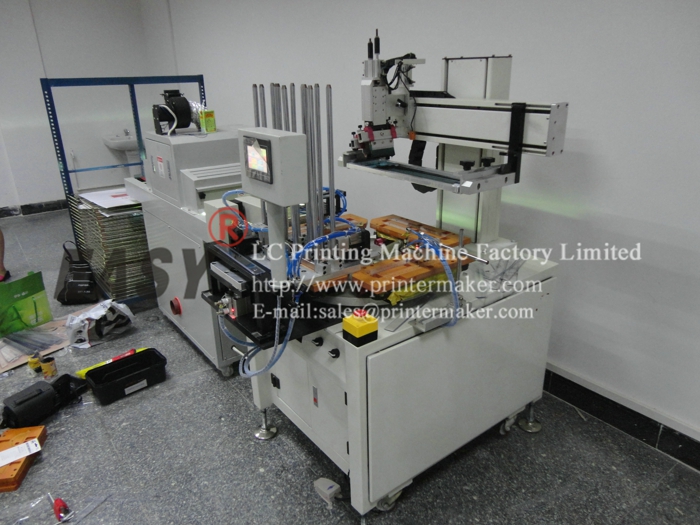

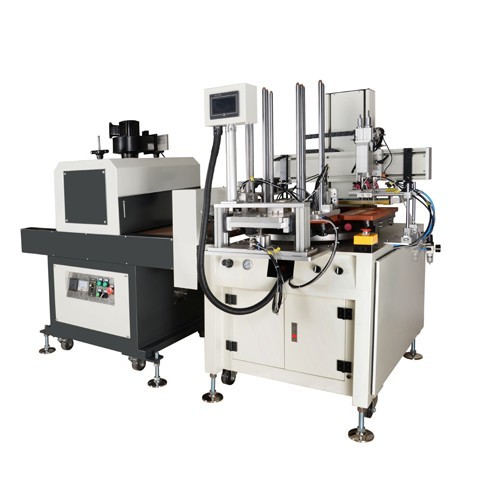

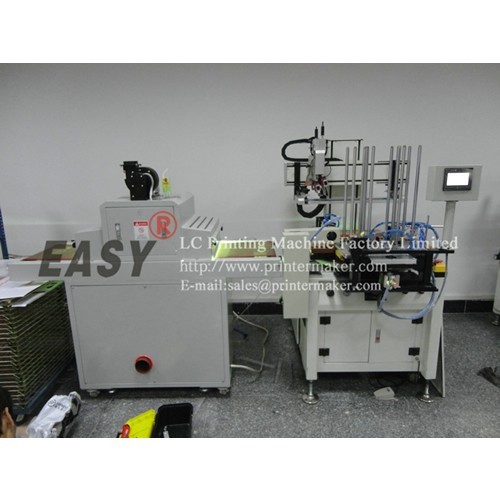

Ruler High Speed Automatic Screen Printing Machine with UV curing system
1.Printing Color:Single Color
2.Max printing Size:200*300mm
3.Max print speed:3000PCS/Hr
4.Rotarytable Workstation:4 PCS
5.Total Power rate: 220V/50/60HZ, 5KW
6. UV lamp power rate: 3KW; 380V,3 phrases;Conveyr size at 500mm width*2500 length;
7.Machine Dimension: Screen Printer:1400x1200x1680mm
UV Machine Size 2500x500x1600mm
8.Packing Size:
1400*1200*1700MM(Screen Printing Machine)  Gross Weight:350KG

2570*720*1640MM  (UV Curing Machine)        Gross Weight:200KG

Machinery info:

The machine is special designed for printing stationery ruler with high speed and automatic. Building
up printing and conveying system by high precision servo motor and cam divider to finish printing
automatically, reduce labor, improving efficiency. The printing speed can be up to 2000pcs/hr,

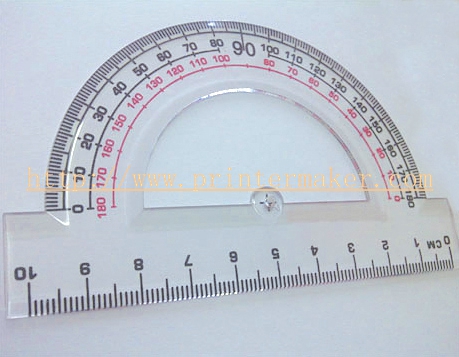

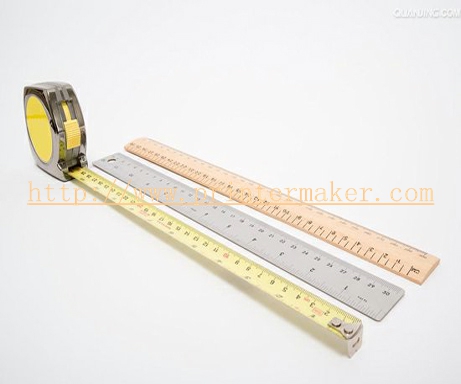

suitable for printing rulers within 30cm.
Technical Parameter:
1. Fully automatic, no need person to operate.
2. Locating automatically to keep printing precision.
3. No product without printing system, keep printing stable.
4. High and strong vacuum system, keep printing precision.
5. PRIMARC UV system from England, drying quickly.
6. Mitsubishi PLC (Japan) with WEINVIEW (Taiwan) touching screen control system. Digital control
system, can set parameter randomly, operate easily with big function.

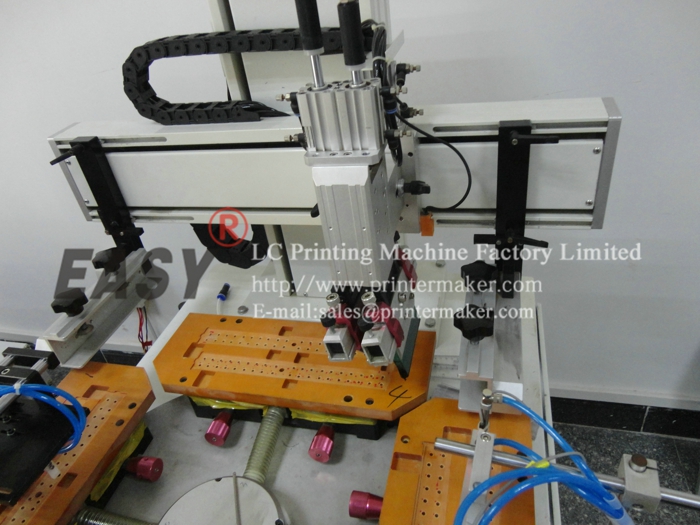

7. The four angle of screen frame holder can be adjusted, keep the balance between screen frame and
worktable, also make sure the layer of printing ink is even.
8. Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and
flood bar is controlled by precision guide, keeping the vertical precision, working smoothly.
9. With emergency switch to keep safe and stable.

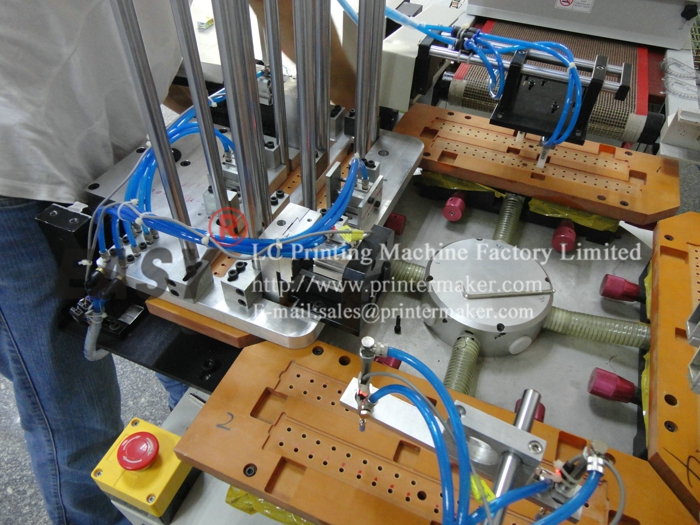

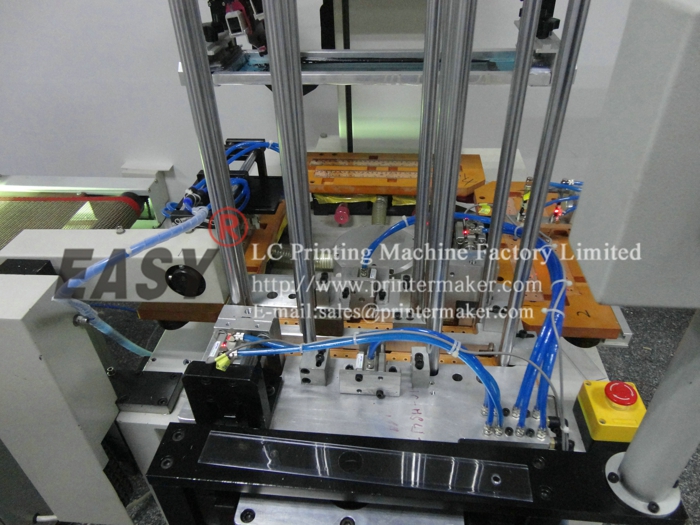

10. Locating several workstations by Taiwan precision rotary locating with stable, fast, improving  efficiency.
