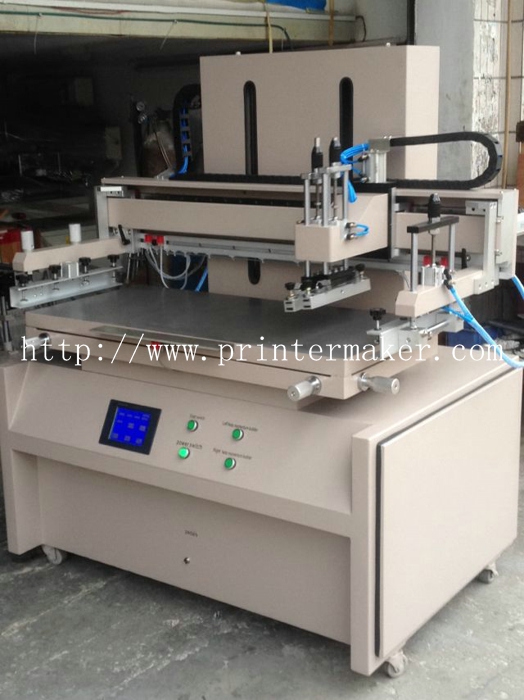

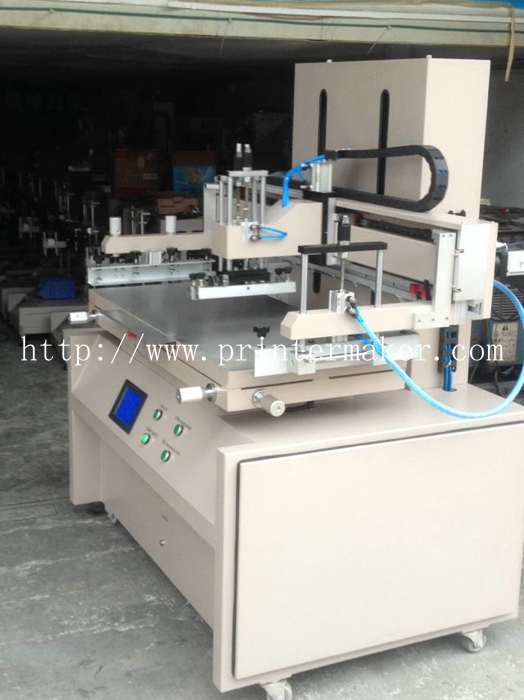

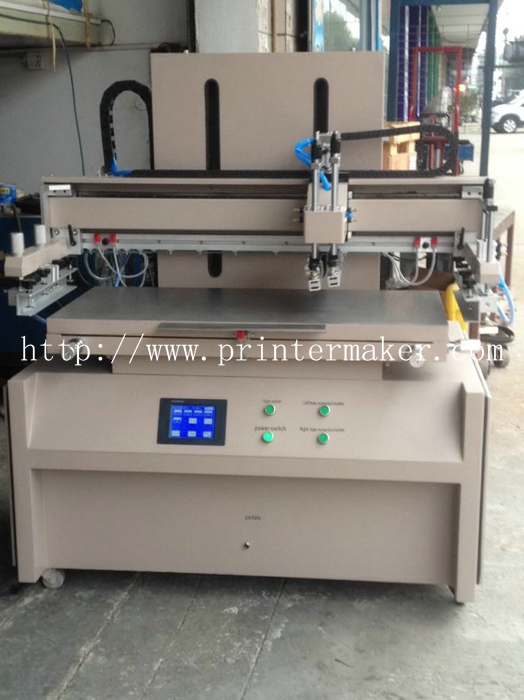

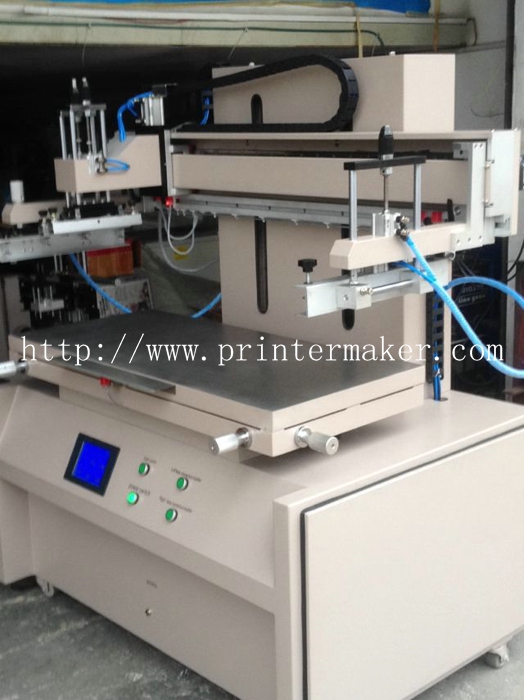

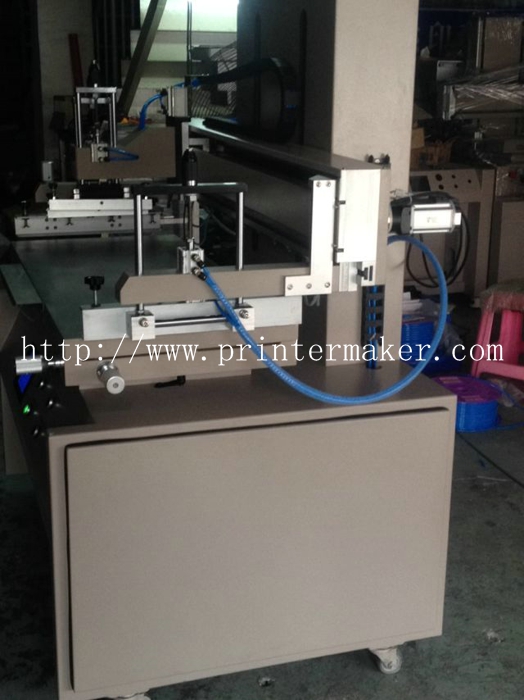

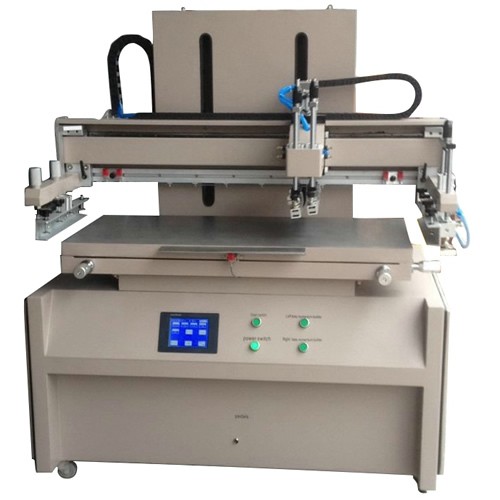

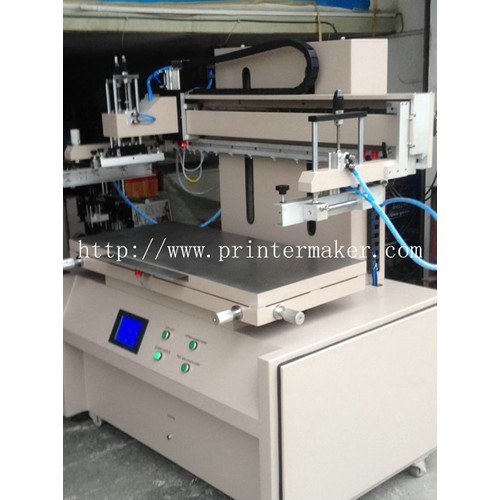

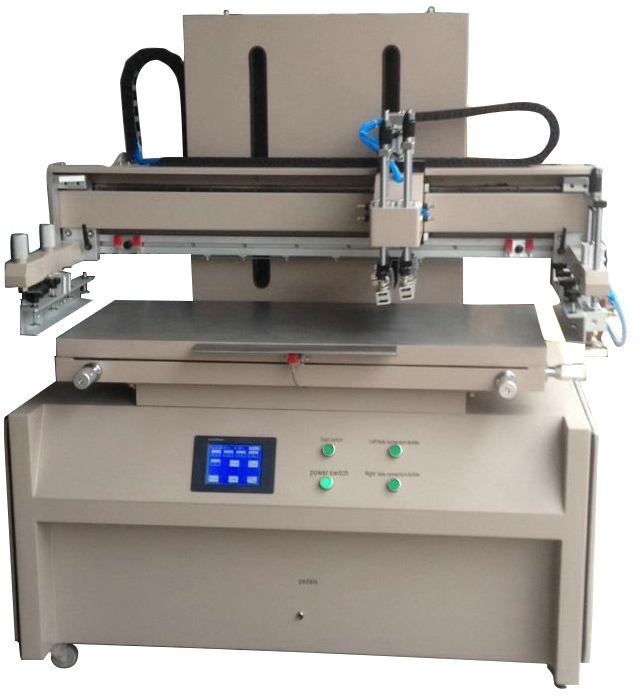

Plane Screen Printer with Servo Motor and PLC Control

Product name:Plane Screen Printer with Servo Motor and PLC Control

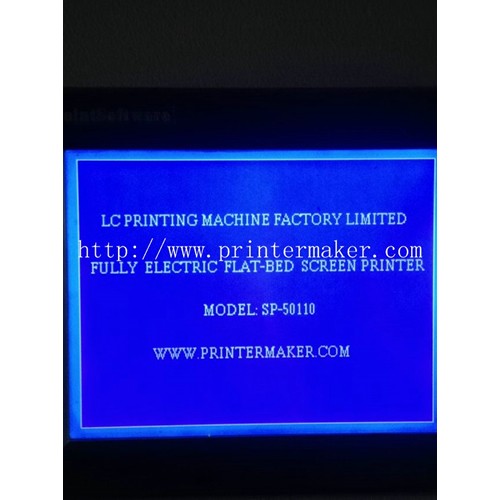

Model Number: SP-50110/50140

Description:
Plane Screen Printer with Servo Motor and PLC Control
1: Working table size at 500*1100mm
2: Maximum printing size at 400*1000mm.
3: Max. Product Thickness: 2-10（cm）
4: Working Capacity: 800pcs/h
6: Power Supply: 380V,50HZ,3 Phrases
7: Air compressor: 0.6-0.8Mpa

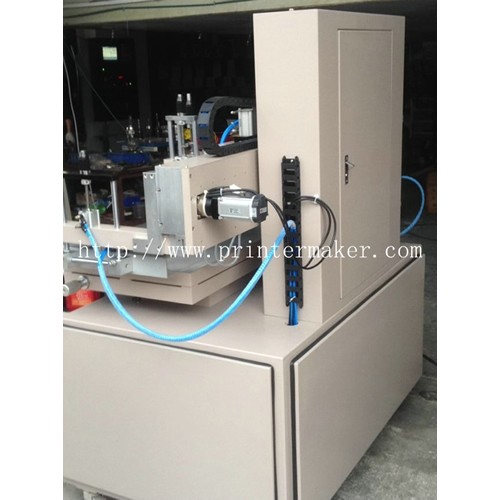

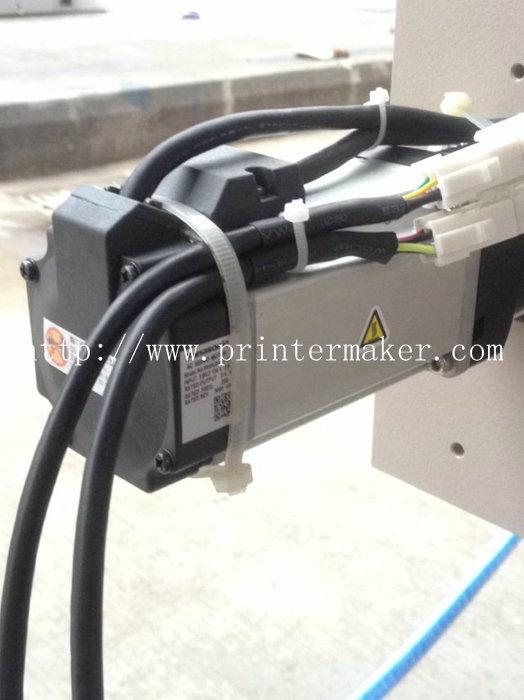

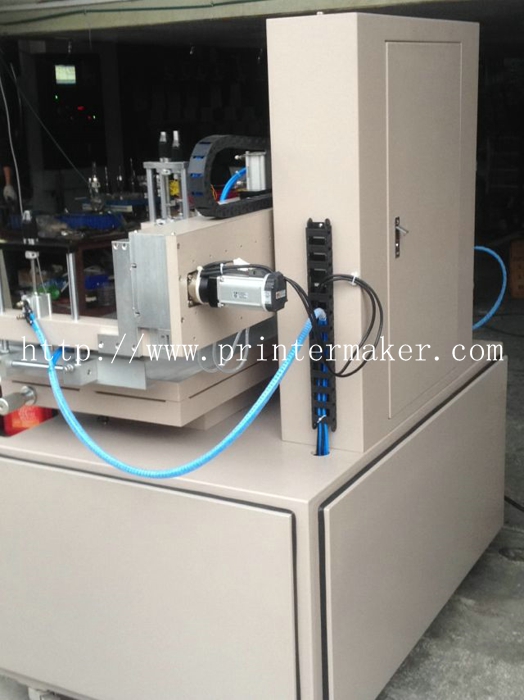

8: Up and down, left and right printing stroke are fully eletrical driven for assuring the machines most working stablity.
9. Machine dimension：1580×1050×1620mm
10. Packing size:170*130*182CM
Model:SP-50140
1: Working table size at 500*1400mm
2: Maximum printing size at 400*1350mm.
3: Max. Product Thickness: 2-10（cm）
4: Working Capacity: 800pcs/h
6: Power Supply: 380V,50HZ,3 Phrases
7: Air compressor: 0.6-0.8Mpa
8: Up and down, left and right printing stroke are fully electrically driven for assuring the machines most working stability.
9. Machine dimension：1780×1050×1620mm

10. Packing size:190*130*182CM
