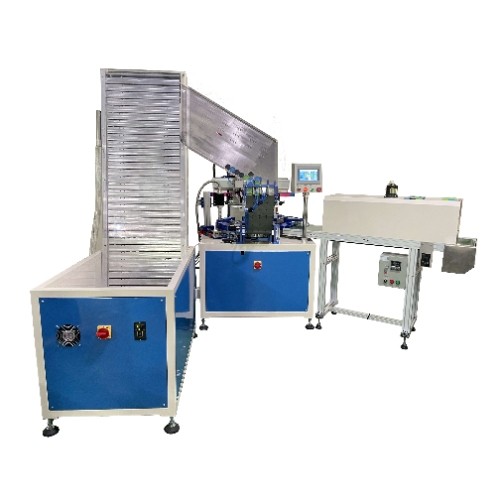

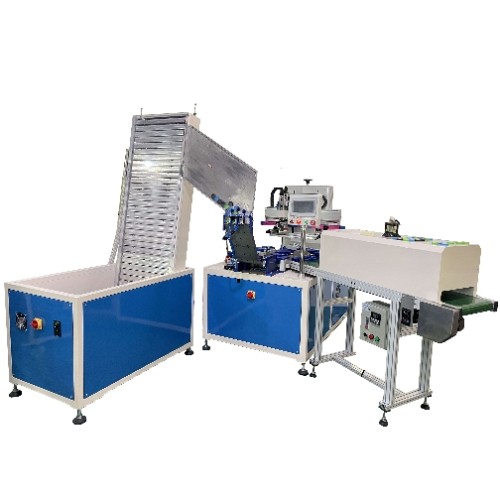

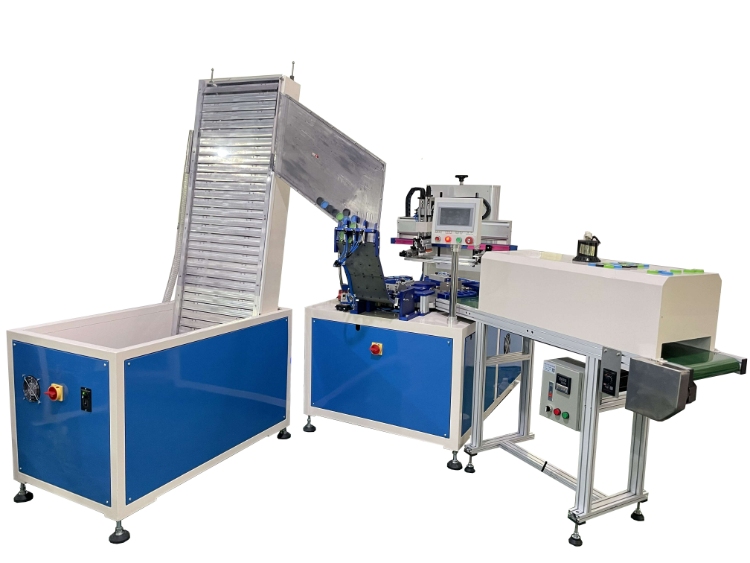

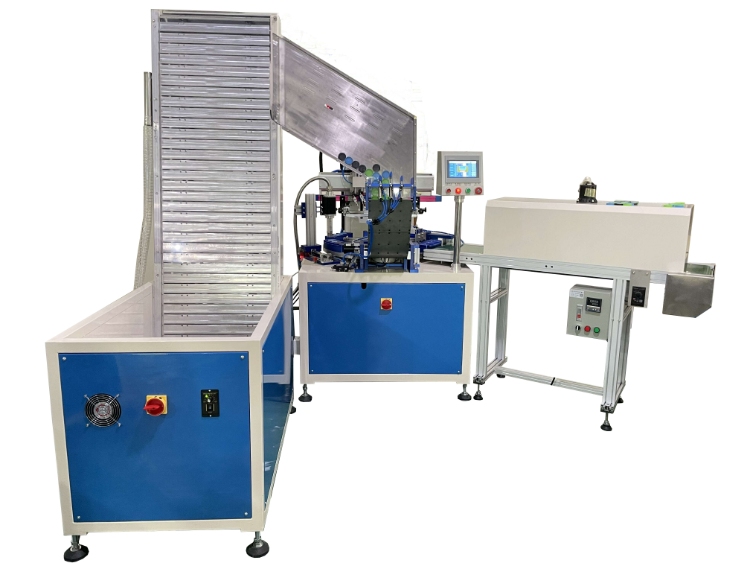

Rotary Flat Automatic Screen Printing Machine

Product name:Rotary Flat Automatic Screen Printing Machine

( 6 Stations, included the plastma treatment,1 for 4 caps mould jig and IR heating tunnel)

Parameter
1.Maximum printing area：200mm*300mm
2.Maximum Silkscreen size：400mm*600mm
3. Feeding Driver：ordinary motor
4. Guide rails：
5. Cam splitter：China Shang Yin
6. Print head drive：Airtec cylinder
7.Surface treatment：Plasma treatment
8. Touchscreen：Kunlun connectivity
9.Control System：Mitsubishi
10.Production capacity：3200-3500PCS/hour
11.Working pressure Mpa：0.4-06Mpa
12.Machine Net/Gross weight：900KG/1200KG
13.Treatment Corona：220V,single Phrase,50/60HZ
14. Machine Dimension：2700mm*1700mm*2200mm
15. Polywooden case packing size:
Feeding system: 188*185*178cm
Machine Size: 226*143*98cm

Features:

1: Touch screen control
2: Up and down by SMC & Airtec phnematic cylinder

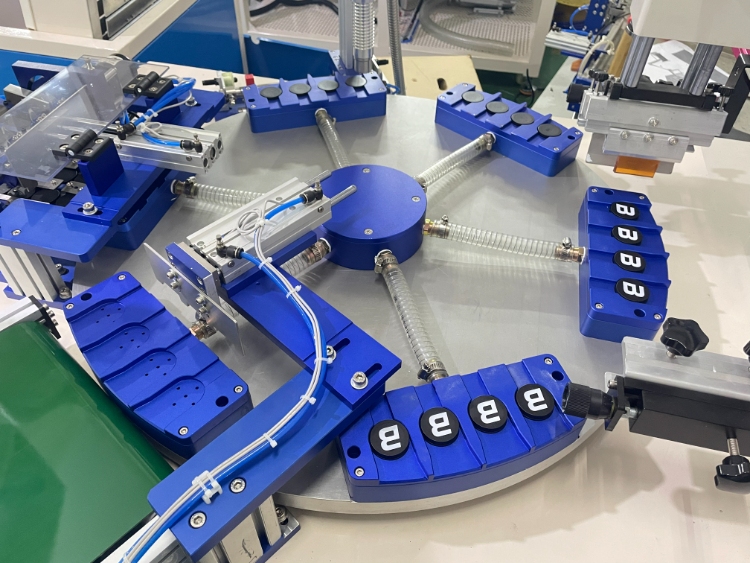

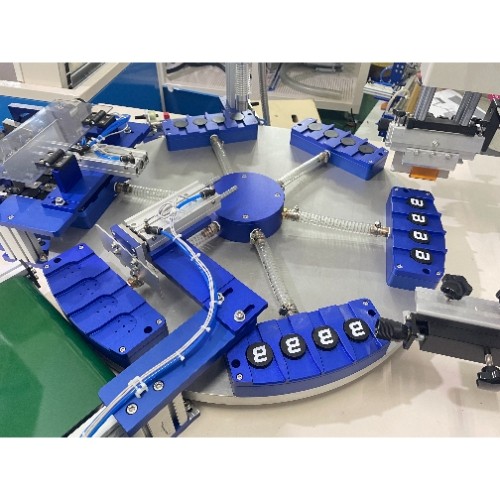

3:  One circle time print 4pcs of caps
4: Splitter rotary working table
5: Automatic feeding system
6: Advanced plasma treratment system as pre-treatment
7: IR heating tunnel

Description:

This machine is fitting on the the large size of bottle caps automatically silkscreen printing machines on the top.
