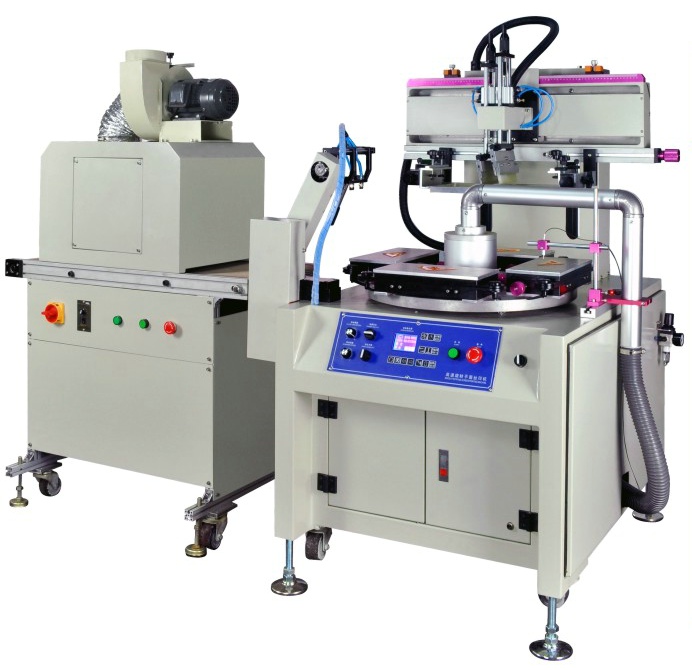

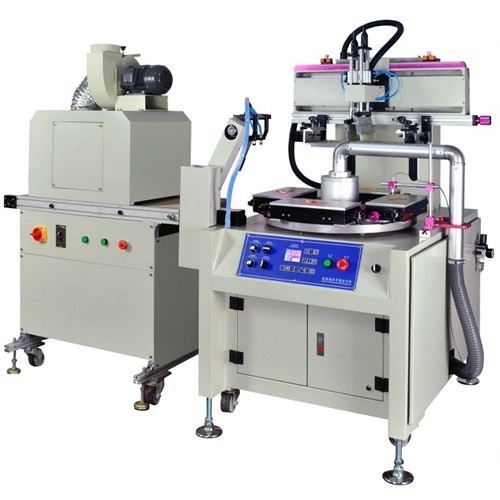

Straight Ruler Hight Speed Screen Printing Machine with Two Workstations

Product name:Straight Ruler Hight Speed Screen Printing Machine with Two Workstations

Model Number: SP-2030V2

Description:
Straight Ruler Hight Speed Screen Printing Machine with Two Workstations
Printing Color:Single Color
Max printing Size:200*300mm
Max print speed:2200PCS/Hr
Rotarytable Workstation:2 PCS
Power:110/220V 750W
Place of orignal:China
Model:SP-2030V2
Brand:EASY
packing:Plywooden Case
MOQ:1set
Payment terms:TT/LC
Delivery terms:By Sea or By Air
Delivery date:Stock and hand
Function introduction:

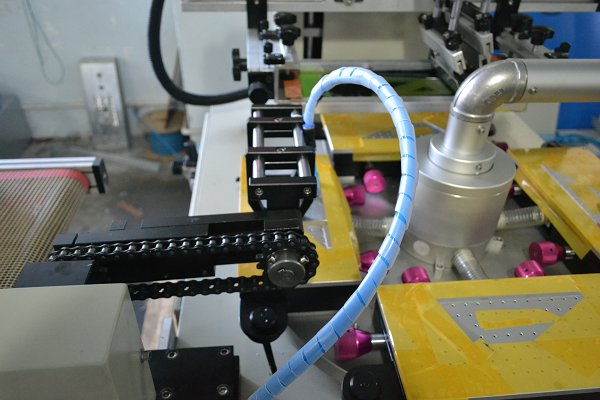

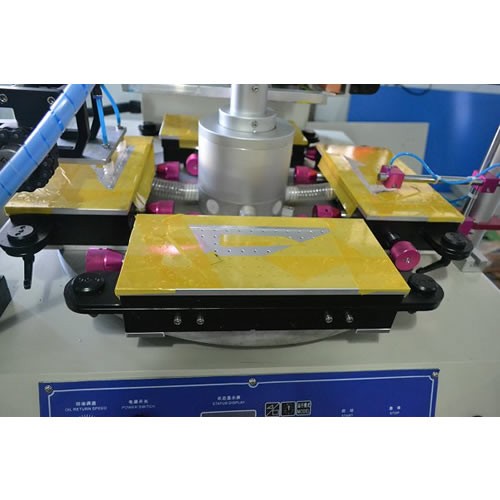

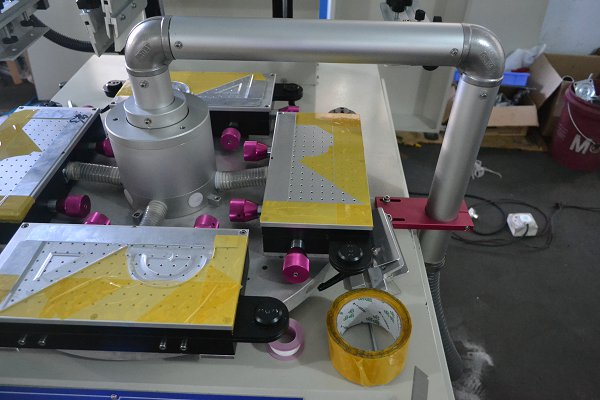

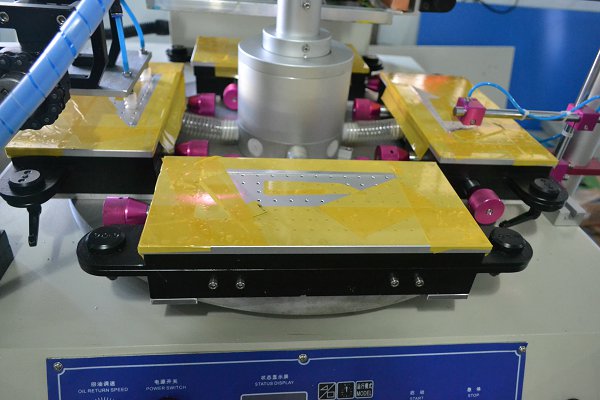

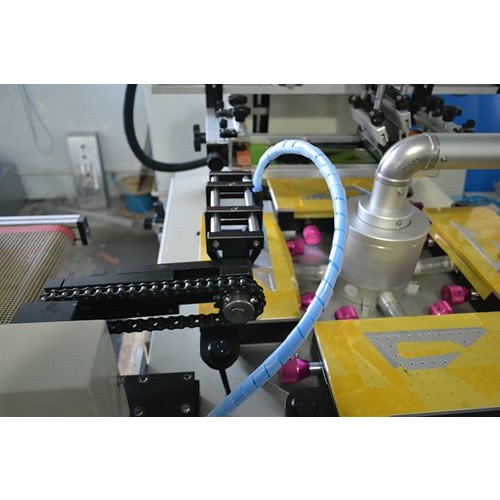

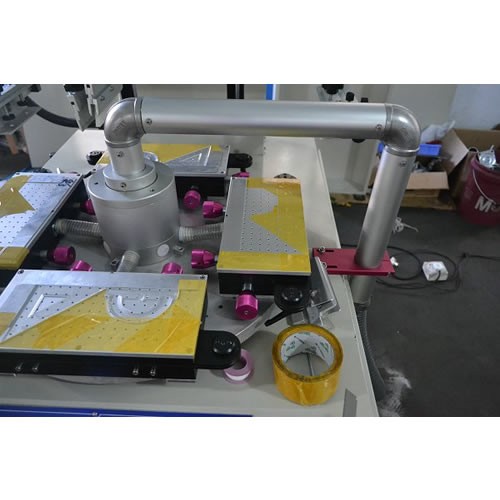

1.High speed cam divider rotary worktable
2.Using Taiwan LSK guide rail with self direction, making sure high precision
3.The X and Y direction of the worktable can be adjusted, the precision can be up to 0.01mm
4.Big vacuum system

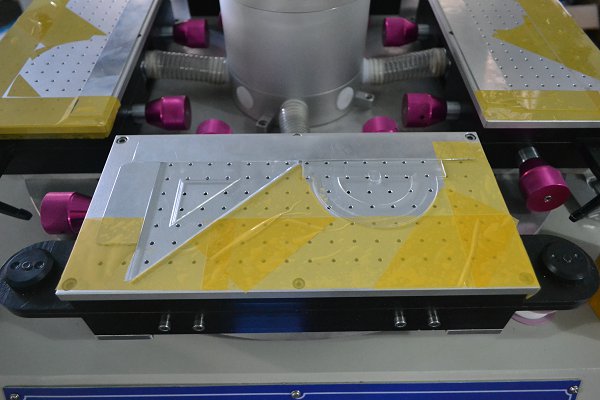

5.No need to make jigs for kinds of stationery rulers, change quickly
6.Speed: 2200pcs/hr
7.With the function of no printing when no work pieces, reduce the trouble of cleaning screen frame
8.Auto-baiting by manipulator with vacuum pad
9.Power: 110/220V 50-60M/HZ

10.It's suitable for printing set squares, straight rulers,protractors with 350mm or below and other flat products.
