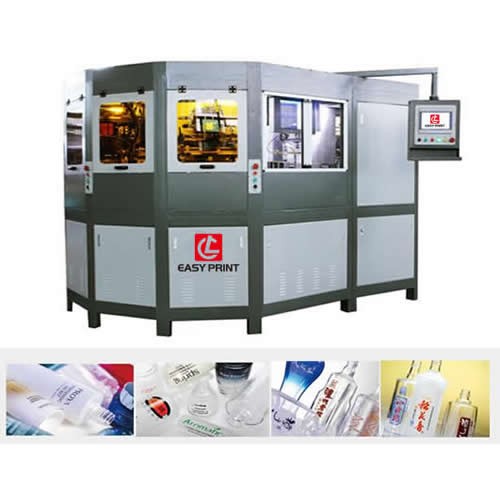

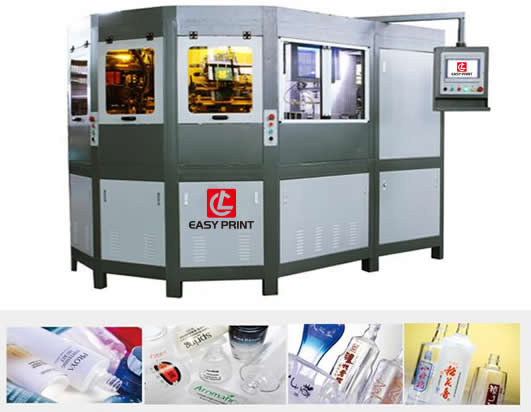

Full Servo 3 Color Automatic Screen Printing machine for Glass Bottle

Product name:Full Servo 3 Color Automatic Screen Printing machine for Glass Bottle

Model Number: S-R103LED

Description:
Full Servo 3 Color Automatic Screen Printing machine for Glass Bottle
Technical Parameter
Model  No.:       S-R103LED
Printing Speed: 2000-2500pcs/hour
Print Size:          Round/Oval/Flat/Square Shape bottle max printing size 30-120mm height 30-300mm
±0.15mm accuracy of the printing
Air Pressure:      0.6-0.8Mpa
Power:               20KW 380V (LED curing)
Machine Dimension:2750*2500*2050mm
Automatic Grade:     Full-automatic
Warranty:                 Two years
Usage: Cylindrical, conical shape,rectangle, flat ,glass and Plastic bottles and container etc
Feature and function:
Full Servo 3 Colors Automatic Screen Printing machine for on Glass/plastic Bottleis in build with servo drive system, frame treatment/ Image Positioning/LED curing System.it is implementate of multi-color overprint, precision of range is + / - 0.15 mm and it is fit for printing multi sides on the surface of cylindrical,round, conial,oval,square, Rectangular, Diamond Phombus shape glass and plastic bottle's silk screen printing. The servo motor control is ideal for multi colors printing on glass bottles with high precision printing.
Curing system for LED curing technology. Power consumption is only one over ten of the normal UV lamp!
Accessories
Screen frame with mesh x 3 pieces
Squeegee x 3 pieces
Tooling box x 1 piece
Tooling set x 1 piece
English manual x 1 piece
