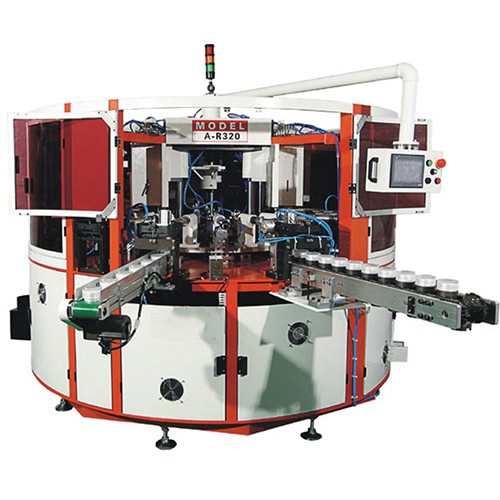

1 to 6 Color Automatic Soft Tube Rotary Table UV Screen Printing Machine

Product name:1 to 6 Color Automatic Soft Tube Rotary Table UV Screen Printing Machine

Model Number: A-R320

A-R320 is a fully automatic UV cosmetic tube, small glass container, plastic jar and air/oil filter screen printing machine that offers increased productivity and unrivalled value for the money.The A-R320 is driven by a SANKYO rotary positioning drive system and features a SITI main drive motor with a barrel cam.
The UV screen printing inks are automatically cured with high powered UV lamps positioned after each printing station.After loading of the flexible or rigid tubes there is a pre-flame treating station and de-ionizing / cleaning station (optional) to ensure quality printing results with fewer defects.
The A-R320 system is equipped with intelligent UV curing units which are outfitted with high intensity mercury UV bulbs.
Main Specifications
Print product size: dia10-60, L30-250mm
Max. print area: (10-80mm) x (20-200mm)
Max. printing speed: 60 pcs/min
Registration tolerance: +/- 0.2 (except product tolerance)
Screen Drive: Servo motor driven
Print Station Drive: Servo motor driven
Flame treating system: 1 unit
Print head: 3 units
Stations: 20 stations
UV system: 3 unit Fusion UV system
UV lamp power: 1.8 KW/UNIT
Deionizing device: 1 unit CIMCOR Brand
Motor: ITALY SITI
Control system: OMRON PLC & Touch Screen
Pneumatic parts: Japan SMC
Electrical supply: 380V/480V 3phase 50Hz/60Hz
Air requirement: 6-8bar
Power consumption: 15 KW
Machine dimension (LxWxH): 5000 x 2800 x 2350 mm  (including electric   cabinet)
Crated size(LxWxH): 2300 x 2300 x 2350 mm
Weight: 3500 KG

Crated weight: 3800 KG

The A-R320 is a fully automatic UV cosmetic tube, small glass container, plastic jar and air/oil filter screen printing machine that offers increased productivity and unrivalled value for the money.The HY-R320 is driven by a SANKYO rotary positioning drive system and features a SITI main drive motor with a barrel cam.
