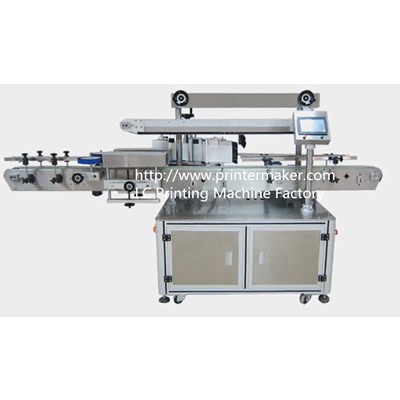

Automatic Labeling Machine for Bottles Side Wall

Product name:Automatic Labeling Machine for Bottles Side Wall

Model Number: ALM-71100

Automatic Labeling Machine for Bottles Side Wall
Features
1.powerful, a machine can achieve four kinds of products-sided and double-sided labeling (round bottle, flat bottle, square bottle, shaped bottle);
2.uses synchronous bilateral rigid plastic chain guide, automatically guarantee a bottle of neutral, the workers put into bottles and bottles of low demand docking lines, greatly reducing the difficulty docking assembly line worker jobs or be stand-alone production, can also be connected to production line;
3.Configuring spring-capping mechanism to ensure smooth product handling and high bottle itself effectively eliminate errors;
4.configure automatic bottle institutions, guided bottle automatically before separate spacing, ensure follow guide bottles, transport and labeling of stability;
5.configure two repeat standard bodies, for the first time to ensure labeling accuracy, the second extrusion coating standard, effectively eliminate bubbles and guarantee label at the head and tail snapping;
6.intelligent control, automatic photoelectric tracking, with no object no labeling, no label auto-correction and auto-detection function labels, tags and drain to avoid wasting stickers;
7.equipment is mainly made of stainless steel and high-alloy, in line with GMP production, the overall structure of a solid, elegant appearance.

Specification
1. label length (mm): 20mm ~ 200mm
2.Applicable Label width (backing paper width / mm): 20mm ~ 160mm
3.Applicable Products Dimensions
Length : 20mm ~ 250mm
Width : 30mm ~ 90mm
Height: 60mm ~ 280mm
4.Max Outside diameter of label roll: φ280mm
5.Inside diameter of label roll: φ76mm
6.Labeling accuracy : ± 1.0mm
7.The standard speed:  5 ~ 19m/min
8.Labeling speed (pcs / min): 30 ~ 160pcs/min
9. Conveyor speed (m / min): 16m/min
10.Weight (kg): about 330kg
11.Frequency (HZ): 50HZ
12.Voltage (V): 220V
13.Power (W): 1100W
14.Device dimensions : 3000mm × 1450mm × 1650mm
15.Packing Size:320*141*168CM

16.Gross Weight:650KG
