Automatic Screen Printing Machine for Cosmetic Plastic Tube

Product name:Automatic Screen Printing Machine for Cosmetic Plastic Tube

Model Number: STUV-01

Description:
Automatic Screen Printing Machine for Cosmetic Plastic Tube
This machine is special for 1 color printing of soft tube, bottle cap and which is similar with the special plastics container. The Max printing speed is 4000pcs/ hour. This machine combine with: advanced PLC、touch operation screen and display control system、fiber digital servo system (the second printing),automatic feeding and unloading conveyer system、flame treatment system   high/low speed mechanical sync transport system, automatic alignment function, and “not work piece not printing” sensor, diagonal mechanical printing fix system.
Feature:
1.the machine is controlled by micro-computer which is stability and reliability, with a clear bright blue screen so that the machine is operated easily and maintained convenient.
2.international famous pneumatic units such as brands of Festo and so on which are selected for the machine, the speed can be adjusted independently.
3.the machine is designed for round objects, it applies to plastic soft bottle, plastic bottle, cosmetic etc.
4.the machine is convenient to select movable printing head for round printing Item.
Specification
Max printing speed:4000-6500  pcs/hour
Printing area:236mm x 170mm (Φ75mm)
Size of printing object:10mm < diameter < Φ75mm 20mm < height < 200mm
Power supply:380V 50 MHz
Main machine size:1500mm x 1180 mm x 1900 mm
Machine cover area:2600mm x 3600mm x 2000mm
Machine weigh:1000 Kg

Power consumption:4.5 KW

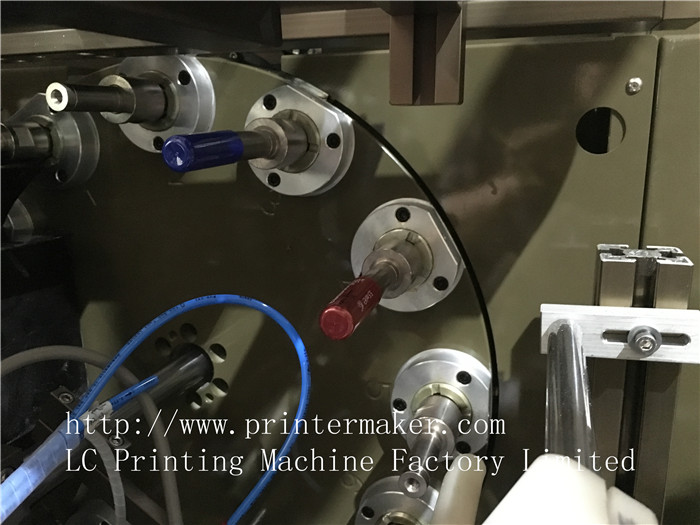

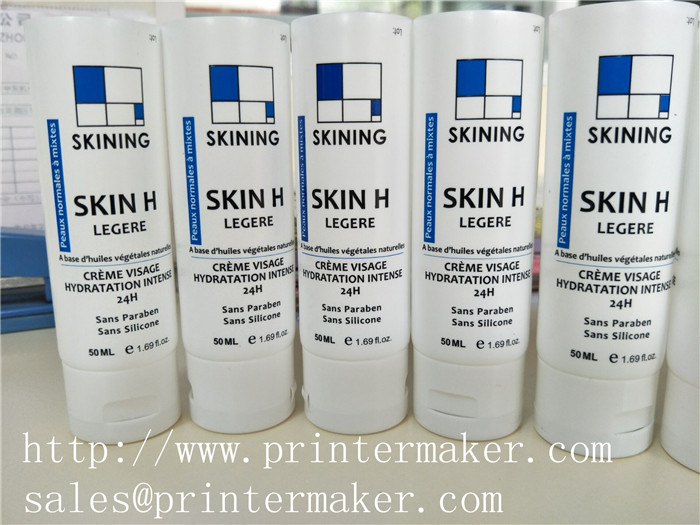

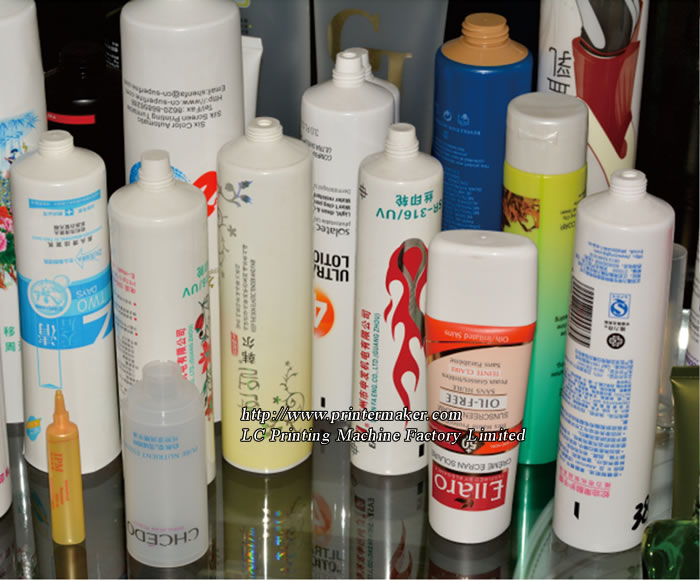

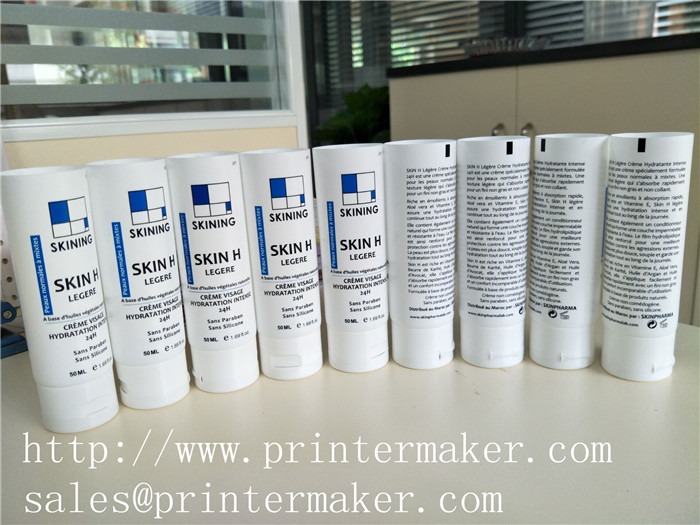

Printing Samples

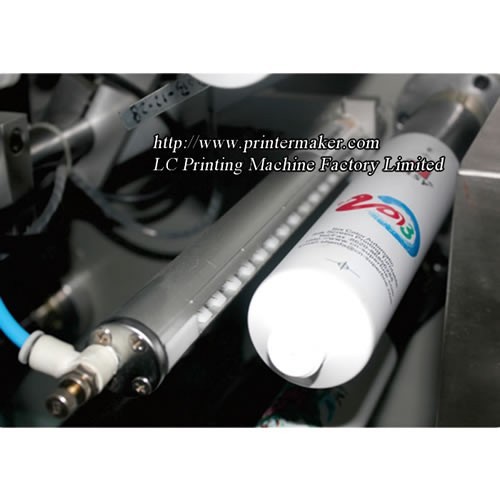

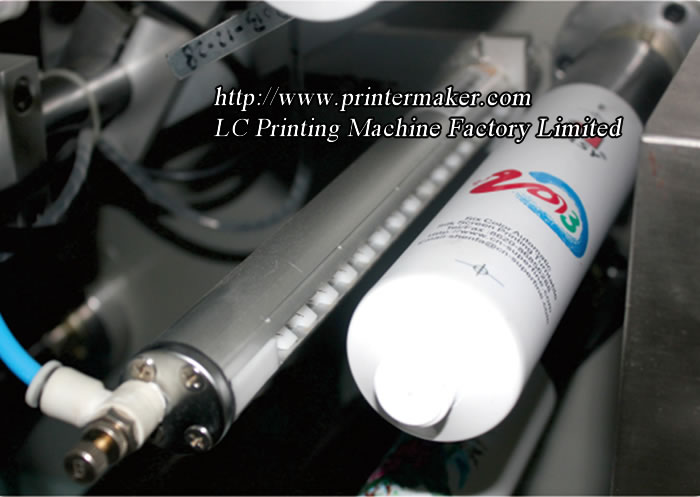

Anti-static System

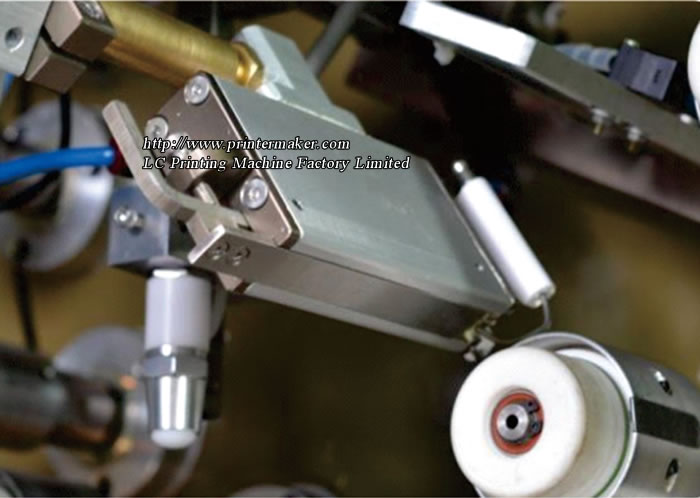

Flame Treatment System

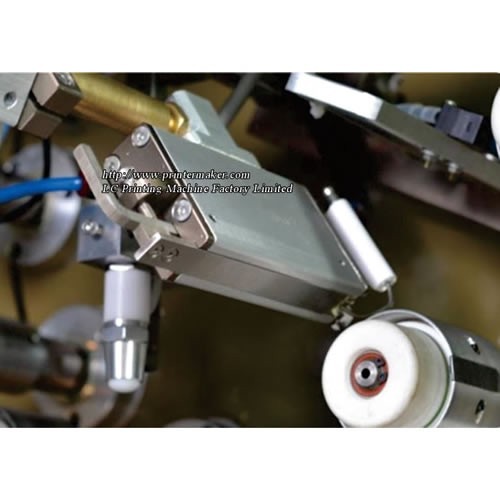

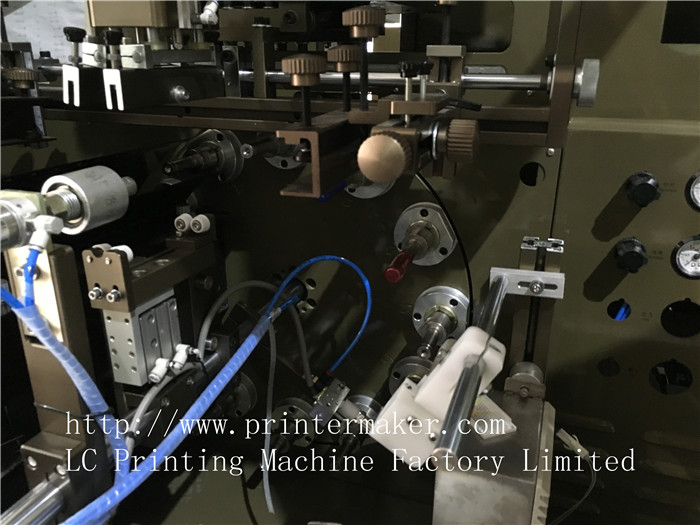

Mechanical Registration

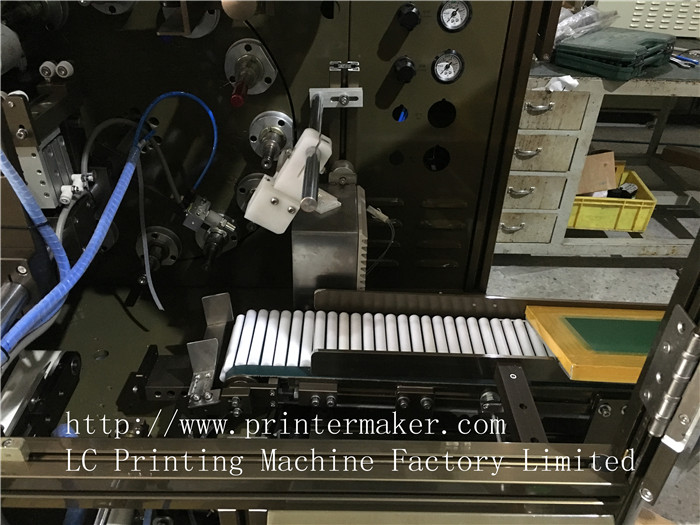

90 Rotating Loading And Unloading

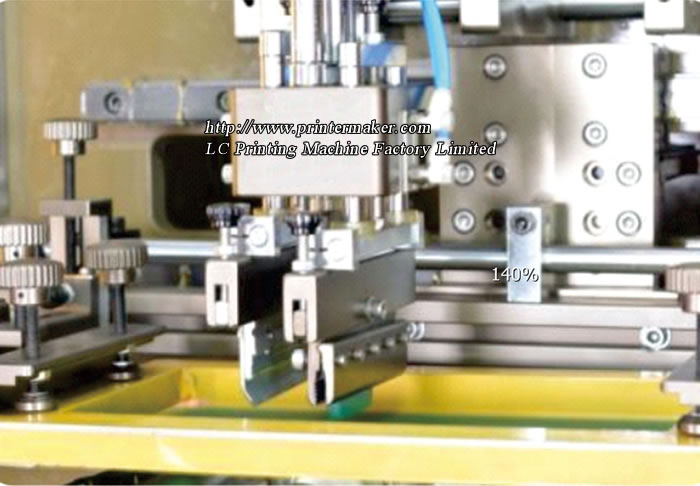

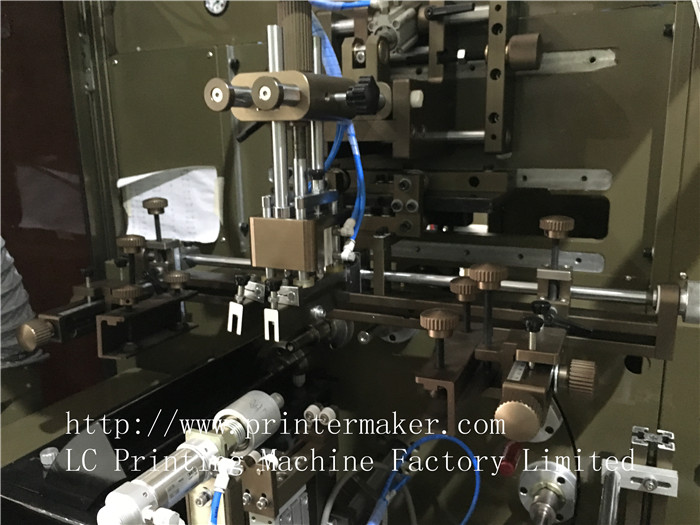

Screen Printing System

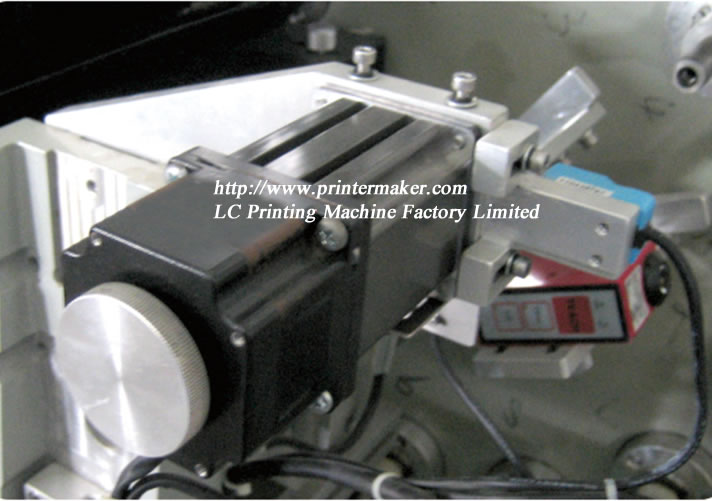

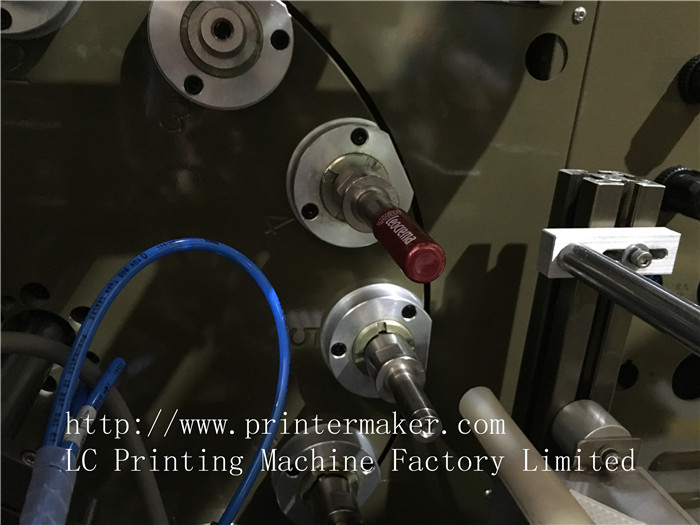

Servo Registration System
