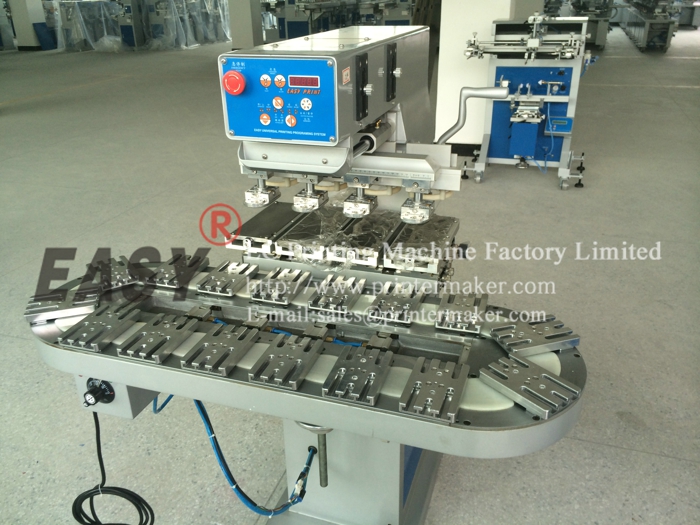

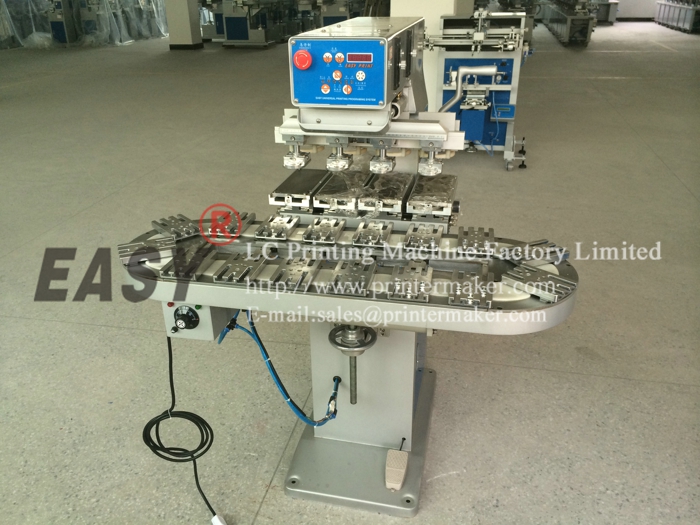

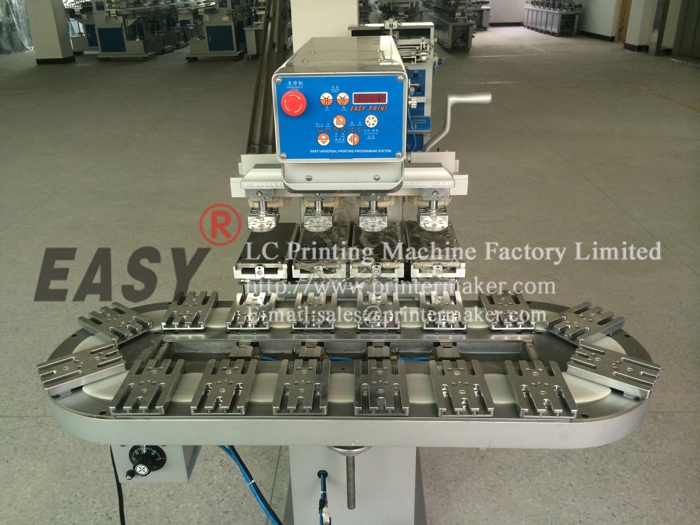

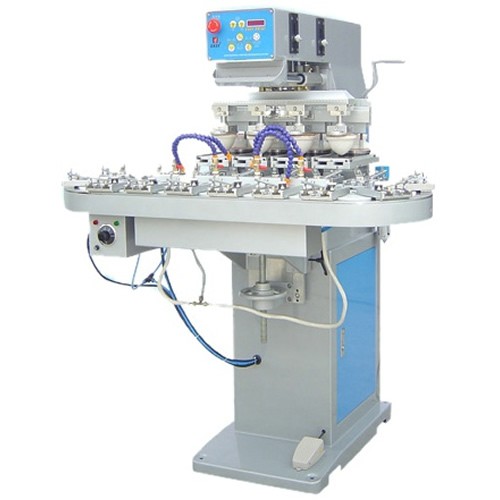

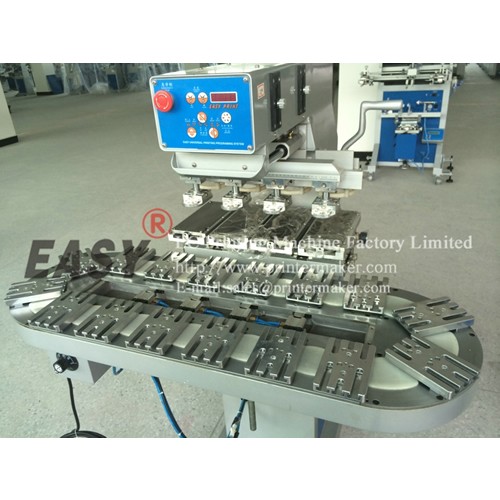

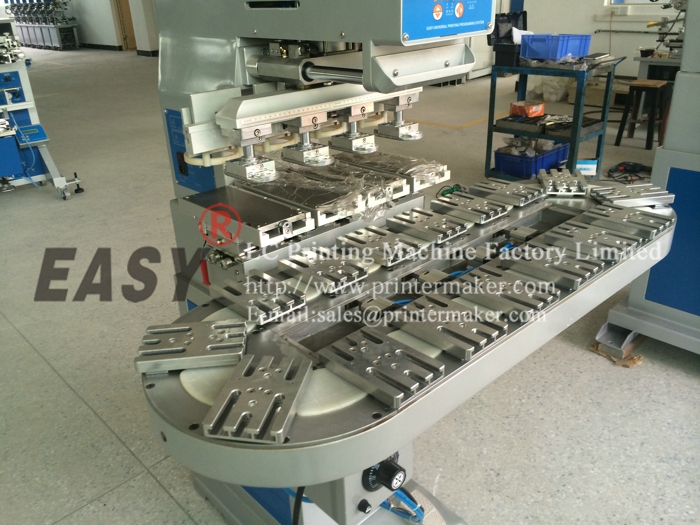

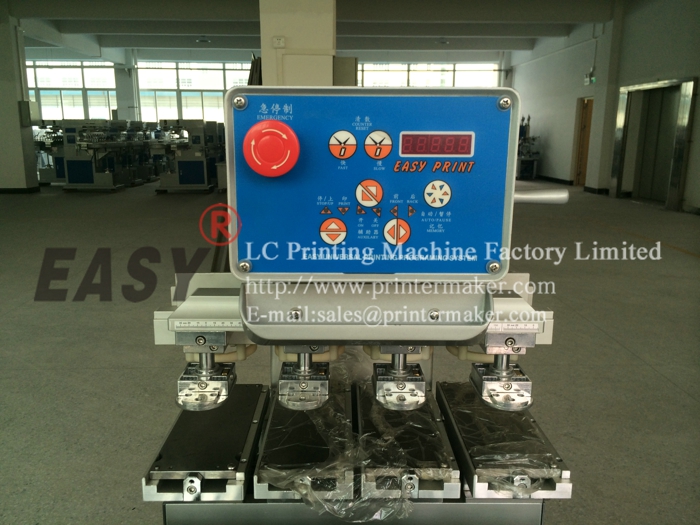

4 Color Pad Printer with Conveyor

Product name:4 Color Pad Printer with Conveyor

Model Number: S4-250C/16T

4 Color Pad Printer with Conveyor ensures that is environmental, safe, it is comply with CE Starderand, ease operateing, to consume ink that frugal. Help to reduce any solvents evaporating from the ink too quickly and also helps to keep the ink at a constant temperature.
It is to fit pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package products, bos, , hosehold, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.
4-Colour Conveyor & sealed cup Pad Printer
1. Four color printing with conveyer;
2. Microprocessor control with numerical display leads to easy operation;
3. Automatic 5-digit counter installed;
4. Coin aluminium structure frame, the machine is light and sturdy;
5. The speed and the vertical stroke of the pad can be adjusted independently;
6. With sealed cup to protect operating envirment;
7. The extra function "twice inking, once printing" is designed for thicker ink film;
8. For different requirements, the working speed can be adjusted;
9. 4-color, 3-color, 2-color, 1-color printing available,
10. The four ink cup can be independently adjusted for color registration;
12. With air jet for fast drying;

S4-250C/16T
1. Max. Plate size: 100*250mm
2. Max. Worktable area: 90x125mm
3. Sealed cup diameter: 90mm
4. Max Printing area: 80*120mm
5. Max. Printing speed: 1800PCS/h
6. Printable colours: 4
7. Air consumption: 154Litre/min(6bar)
8. Machine Size:95x110x138cm
9. Machine Weight: 240Kg
10.Packing Size:123*103*151cm
11.Gross Weight:320KG

Free Fitting:
1. Four PCS steel plate
2. Four PCS rubber pad
4. English operating instruction

Price Terms︰ FOB GUAGNZHOU
Payment Terms︰ T/T OR LC
Packing︰ Wooden case
Lead Time︰ 5 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Cubic Meter ︰ 2.5
Machines Fittings ︰ SILICONE PADS ,STEEL PLATE
Main Parts︰ CYLINDER MADE BY JAPAN
Application area︰ TOYS, PLASTIC ,ELECTRON PRODUCTS.
