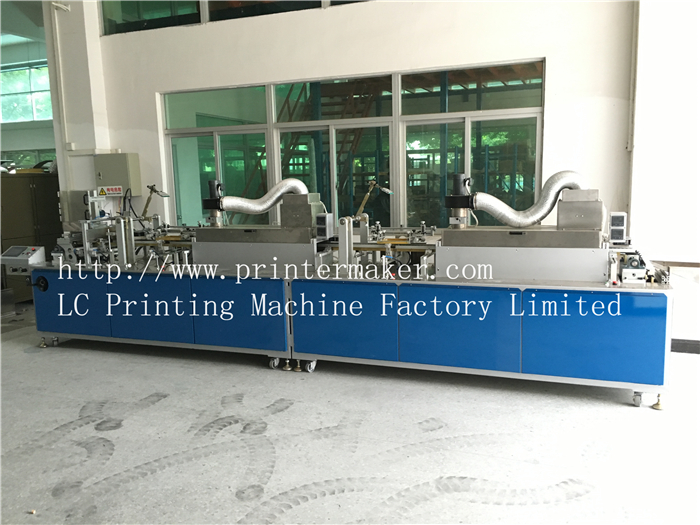

1 Color 2 Stations Automatic Pen Screen Printing Machine (With PLC Control)

Product name:1 Color 2 Stations Automatic Pen Screen Printing Machine (With PLC Control)

Model Number: APS150-2CIR

Description:
1 Color 2 Stations Automatic pen screen printing machine (With PLC Control)
This machine with the good printing quality, fast speed, easy to adjust, It it use for the printing of round type plastic or metal pens, small round tubes, medical syringes, chopstick, cosmetics lipstick tube, and so on.
The auto printing system combine with the Automatic feeding & unloading system, Screen printing, IR curing, with the non-class speed adjust,it is widely used in the pen printing factory and cosmetics manufacture.
Function:
1. Automatic feeding and unloading system, can be printing the object double at the same time.
2. Running smoothly with less noisy, can be adjust the printing distance & speed as you wish.
3. Control by Inverters for steady moving, ensure for good affect printing.
4. Adopt IR system, it can finish the printing and drying at the same time,
Specifications:
1. Printing Color:          1 Color
2: Product OD ranges: OD 7-OD16MM
Product length:         60-220MM
3: Power rate:             10KW
4: Power supply:         220V, 50HZ, single phrase
5: Machine dimension: 6400*890*1600MM
6: IR heating rate:        1100mm,
IR power rate:         4KW*2
7: Printing speed:        40-60pcs per minutes,
2400-3600pcs/hour
8: Packing size:           590*97*185CM

9. Gross Weight:        1000KG

Printing Samples:

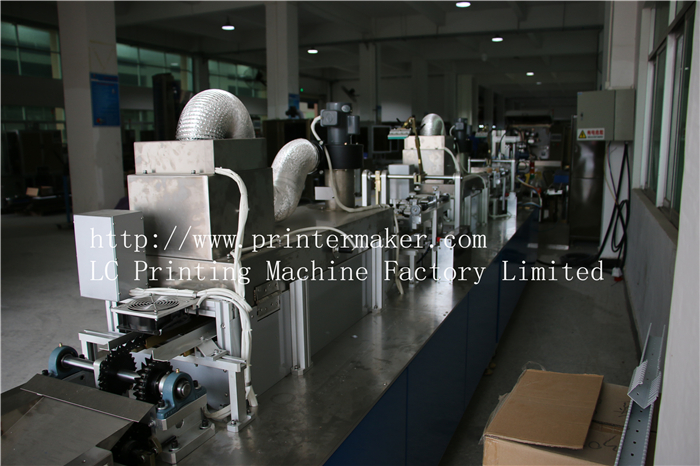

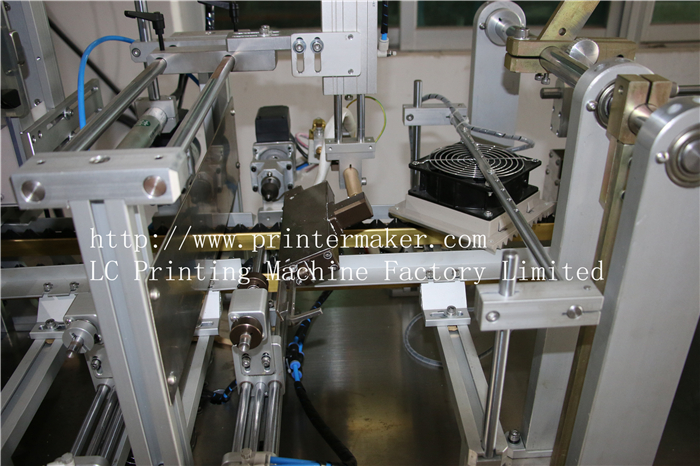

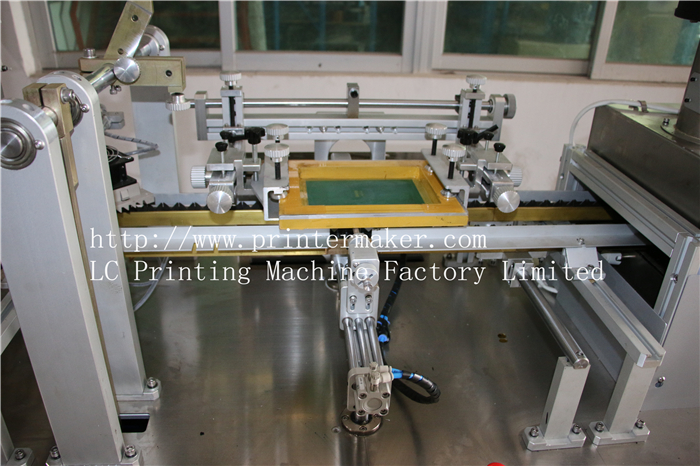

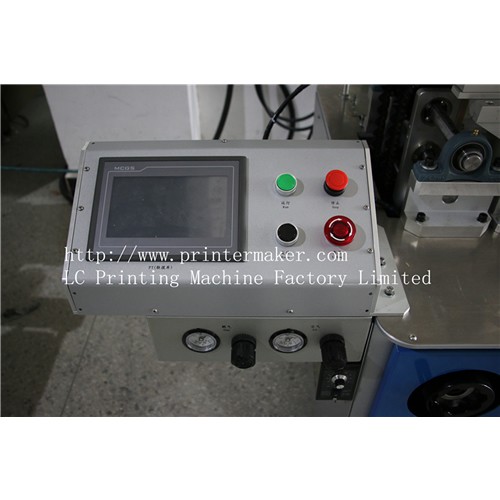

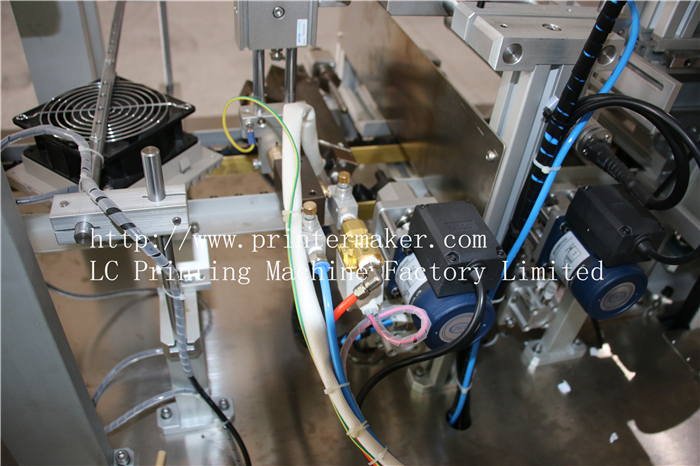

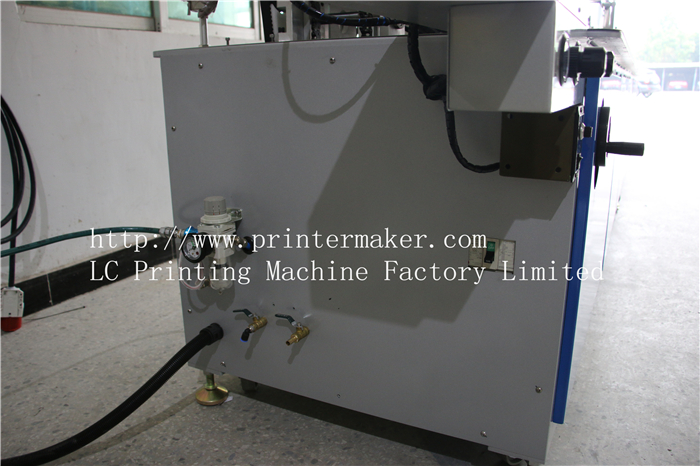

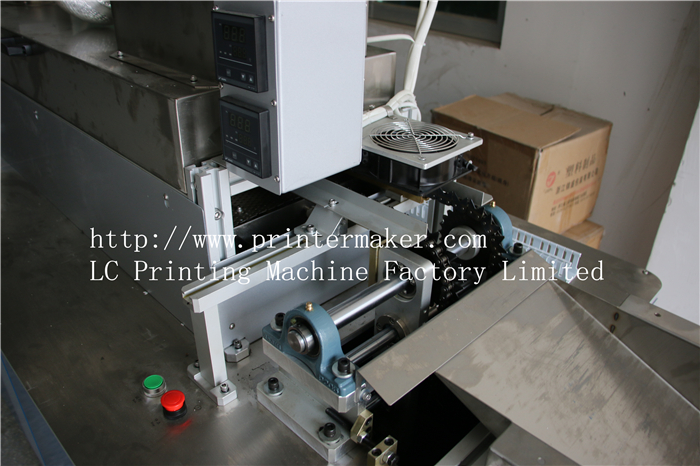

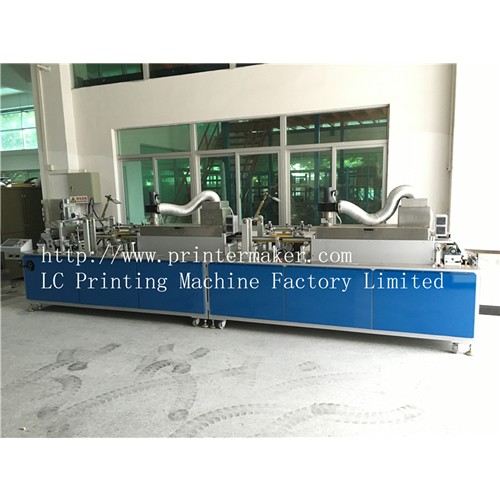

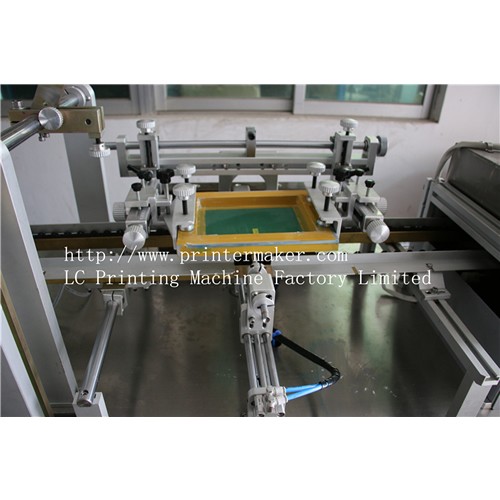

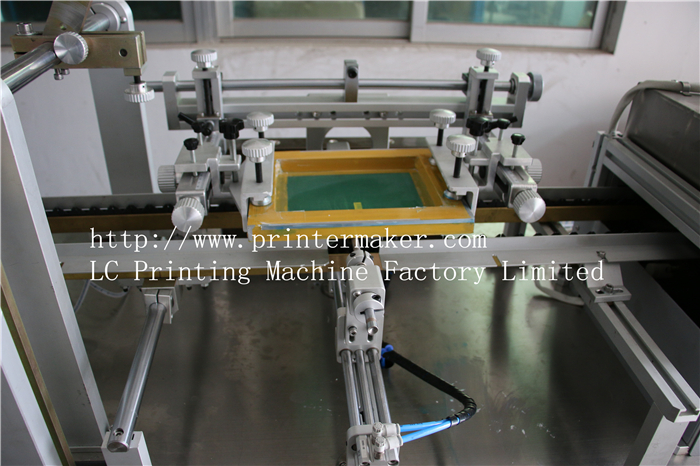

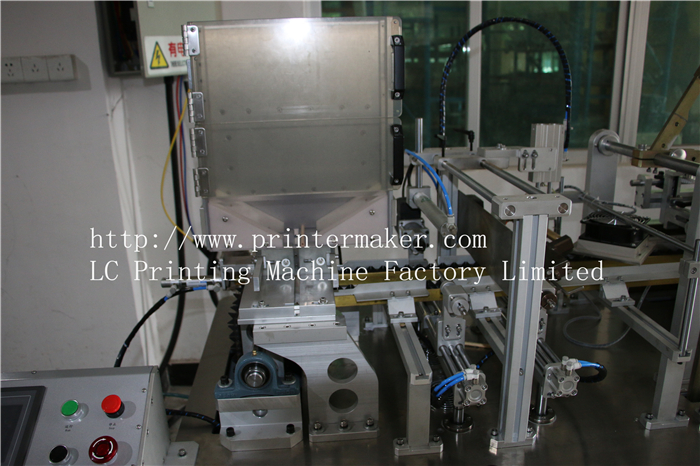

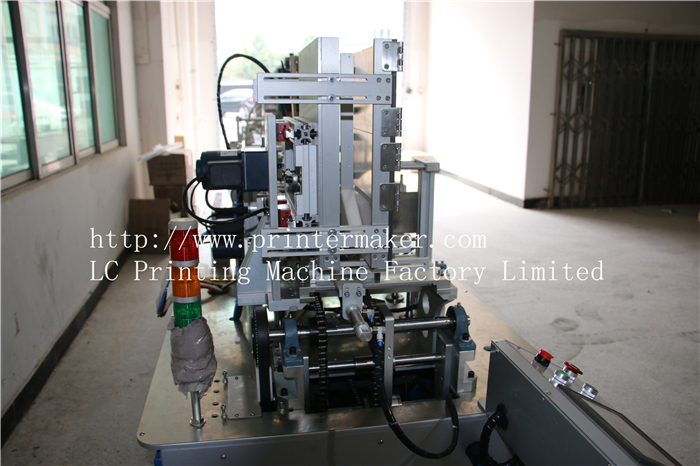

Product Detail:
