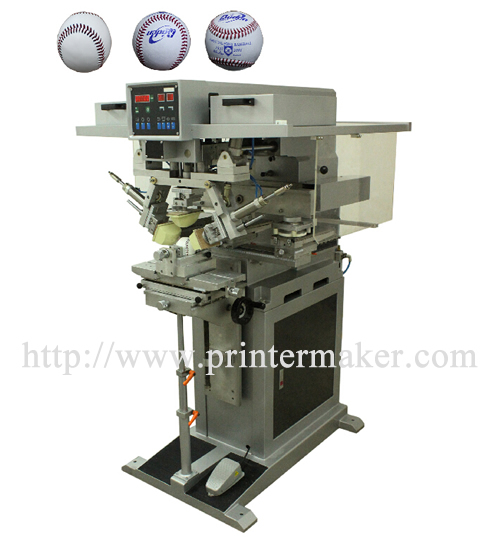

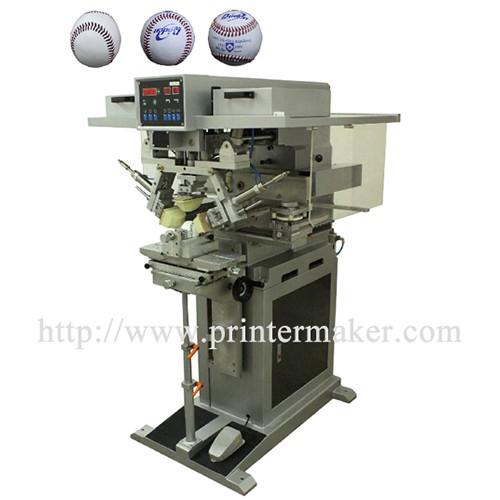

Softball Ink Cup Pad Printing Machine

  • Model Number: AP-260100
  • Product price: US$:negotiated
  • Category: Automatic Pad Printing Machine
  • Views: 4691
  • Product Description:Softball Ink Cup Pad Printing Machine
  • PRODUCT DETAIL

Product name:Softball Ink Cup Pad Printing Machine

Model Number: AP-260100

Softball Ink Cup Pad Printer
Description
Standard Steel Plate Size:260*100mm
Ink Cup Diameter:Φ90mm
Max. Printing Diameter: Φ80mm
Max. Pad Downward Stroke: 80mm
Max. Pad Carriage Stroke: 248mm
Printing Pad Rotation: degree 360°
Worktable Adjustable Angle: degree  5°
Printing Pad Pressure (6bar hr): N 2954
Compressed Air Pressure: bar 5-7
Compressed Air Consumption: L/cycle  2.38
Power Supply: Single Phase:AC 220V±10%
Power Consumption: W 60
Noise Level: dB ≦76
Machine Dimension: L*W*H 99*83*165cm
Machine weight: 220 KG
Normal Air Consumption is defined as transferring 6 bar of compressed air into normal condition at sea level and 20 degree Celsius under normal atmospheric pressure.

Please specify at order when machine requires to work under 110V supply.
