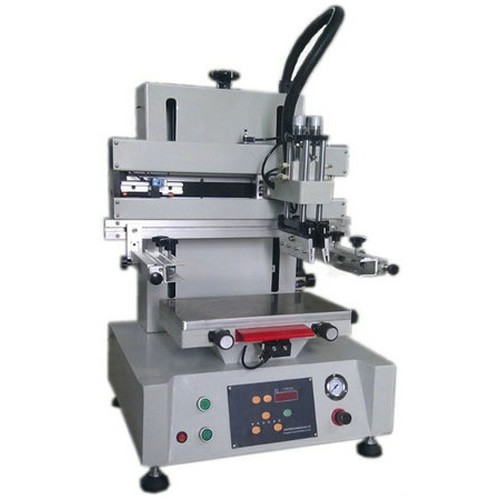

New Desktop Vacuum Screen Printing Machine

Product name:New Desktop Vacuum Screen Printing Machine

Model Number: MSP-2030NV

New Desktop Vacuum Screen Printing Machine
Specification
1.Mode:MSP-2030NV
2.Print area:200x300mm
3.Max height of printing products: 100mm
4.transeversa stroke: 300MM
5.vertical stroke: 160MM
5.Maximum screen frame size: 50*30cm
6.worktable size: 220x400mm
7.Printing speed:1200pcs/hour
8.power:110V/200V; 50/60Hz 50W
9.Machine Size:93x74x87CM
10.Packing size: 70*60*108CM(L*W*H)
11.Net Weight:120KG
12.Gross Weight: 140KG
13.Volume weight:180KG

Details：
This samll vacuum screen printing machine is modified on the basic of  MSP-2030V mini screen printer , it have two flat choce-one is use the T-solt falt and the other is use the vaccum falt.This machine vacuum working table is electroplated to be rust-proof, and it has the features of quick speed,steady performance ,high precision,which can compose the production line in the small workshop or in samll space.The machine especially fit for use in the vc ,paper ,all kinds of wood,name card,eye glass,silica gel key-press screen print and so on.

Features
1.SCM IC coordinate light touching panel to complile action programming
2.Adopt stainless steel cabinet to protect machine body , and its vacuum working table is electroplated to be rust-proof.
3.Auto 4-digit counter built-in, counting printing quantity
4.Airframe adopts coin alloy,and metal coating surface
5.distyle vertical constructure, high precision, steady operation
6.the transeversa stroke can be adjusted, spacing by Taiwan electronic switch
7.the angle of scraper and ink covering blades can be adjusted randomly
8.installing scraper constant pressure equipment to make sure pressure is steady when printing
8.you can regulate work-table back and forth or right and left, and then fastening it
10.you can regulate screen frame back and forth, right and left or level orientatio
11.vacuum stainless steel worktable, it can absorb kinds of film products
12.installing CEC oil buffer on up and down, left and righ to avoid printing shock
13.The machine is running fastly, steably and lower noise.
14.Action model option: fully automatic | semi-automatic | manual
15.Start-up method:panel | foot switches
16.scraper pressure controller:by pressure regulating Valve
17.vertical driving style: pneumatic
