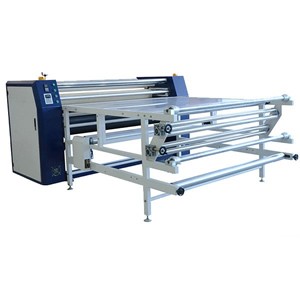

Multifunctional Large Format Oil Heating Rotary Transfer Machine

  • Model Number: MLF-1700
  • Product price: US$:negotiated
  • Category:
  • Views: 2936
  • Product Description:
  • PRODUCT DETAIL

Product name:Multifunctional Large Format Oil Heating Rotary Transfer Machine

Model Number: MLF-1700

Model No.: MLF-1700
Size: 260*130*165cm
Features:
1. Short pre-heat time and heating is more even.
2. Operating efficiency is 2-3 times higher than that of last generation
3. Low noise and stable speed.
4. No cooling machine is needed and the blanket can be separated from the oil tank.
5. Tension of the blanket can be adjusted more easily.
6. Convenient operation with power-failure protection function.

Descriptions:
- MLF is suitable for thermal & low temperature transferring;
- Stable temperature output with duplex oil tank and precise mechanical structure;
- Adjustable air pressure control system for perfect transferring;
- Roll-to-roll system makes printed materials in parallel without deflection;
- Blanket can be separated from oil tank manually when power failure;
- MTP is applied for Garment sheets / Fabric rolls / Flags / Socks / Blanket / Curtain etc..


Multifunctional Large Format Oil Heating Rotary Transfer Machine

Application Flag,cloth,curtain,blanket,bedding,cushion,etc

Moel No.

MLF-1700 MLF-2500 MLF-3200
Printing Widt 1.7m(67") 2.5m(98")
3.2m(126")
Heating Media
Oil
Voltage
3phase,220V or 380V
3phase, 380V or 480V
Heating Power
18KW
30KW
36KW
Number of Heating Elements
12
Diameter of Drum
420mm
Transfer Speed
up to 3m/min
Max Temperature
260C
Transfer Width
1650mm
2450mm
3150mm
Blanket Width
1730mm
2530mm
3300mm
Process Path
Feeding in through top drum
Function of Roll to Roll
Y
Function of Sheet to Sheet
Y
Number of Feeding Rollers
3
Number of Collecting Rollers
2
Workable Included
Y
Air Pressure Included
Y
Machine Dimension
247*98*132cm
329*105*140cm
401*105*140cm
Workable Size
186*192*100cm
266*192*100cm
336*192*100cm
Packing Size
260*130*165cm
360*140*170cm
430*140*170cm
Net Weight
1380kgs
1700kgs
2100kgs
Gross Weight
1450kgs
1900kgs
2300kgs
























Multifunctional Large Format Oil Heating Rotary Transfer Machine

Multifunctional Large Format Oil Heating Rotary Transfer Machine
