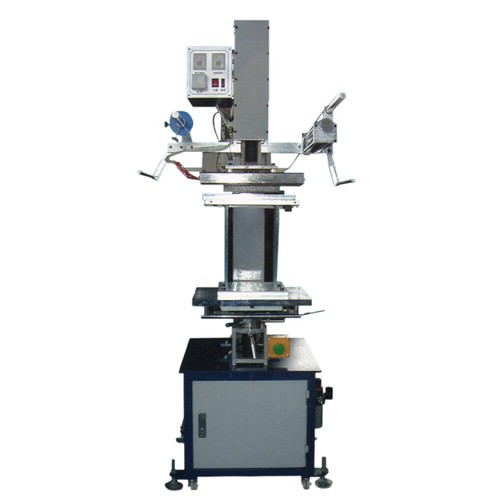

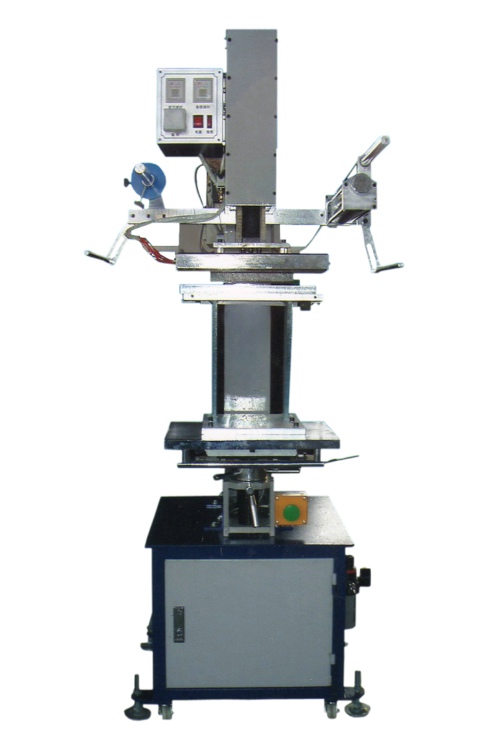

Hot Foil Stamping Machine for Crate

Product name:Hot Foil Stamping Machine for Crate

Model Number: H-Crate-240

Description:
Hot Foil Stamping Machine for Crate
Application:
This machine is designed for foil stamping on the medium and
small size crate’s foil printing and embossing, it is fitting for
the plastic beverage crate’s foil printing and heat transferring.
Advantage:
1: Electric control for easy operation
2: Working table lift is adjustable and fitting for different substrate height.
3: Foil stamping pressure, temperature, speed is adjustable
4: Automatic foil release and collecting with micro adjustment
Parameter:
1: Power supply: 220V, 50HZ
2: Heat plate size: 210*297mm
3: working table size: 400*320mm
4: maximum pressure size: 4000kg
5: Up&down stroke: 40MM
6: Power rate: 800W
7: Foil Winding: driven by electrical
8: Temperature ranges: 0-300 degree
9: Gross Weight: 140kg

10: Outer size: 700*600*1500mm
