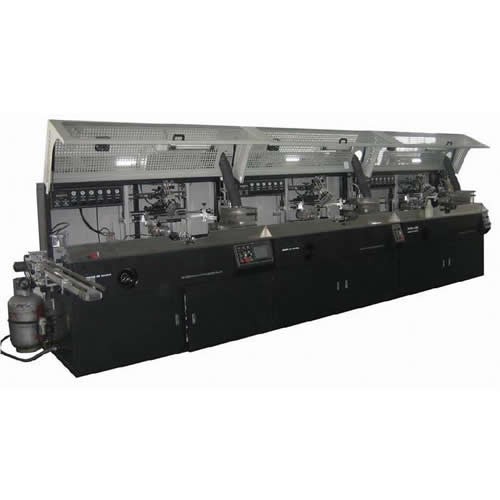

Fully Automatic 3 Color Screen Printing Machine for Plastic Bottles

  • Model Number: S-103
  • Product price: US$:negotiated
  • Category: Custom Solutions
  • Views: 4360
  • Product Description:Fully Automatic 3 Color Screen Printing Machine for Plastic Bottles
  • PRODUCT DETAIL

Product name:Fully Automatic 3 Color Screen Printing Machine for Plastic Bottles

Model Number: S-103

Description:

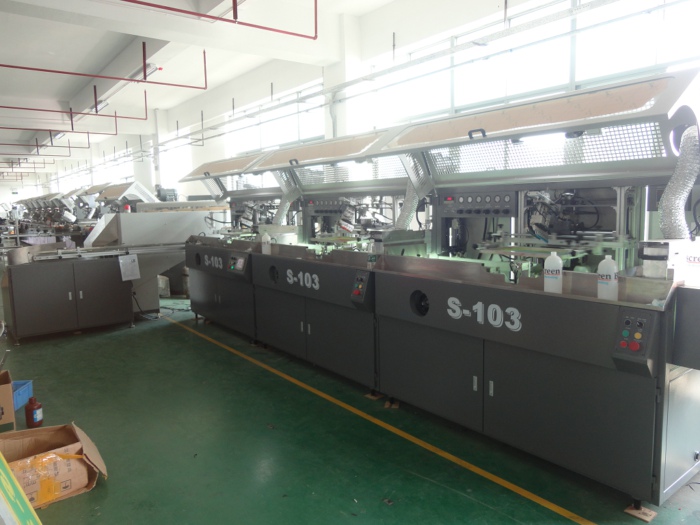

Fully Automatic 3 Color Screen Printing Machine for Plastic Bottles Fully Automatic Screen Printing Machine

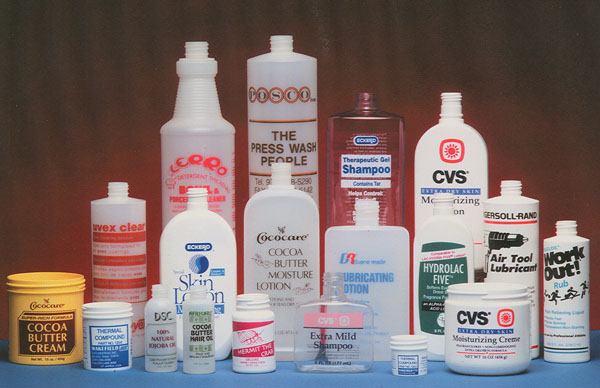

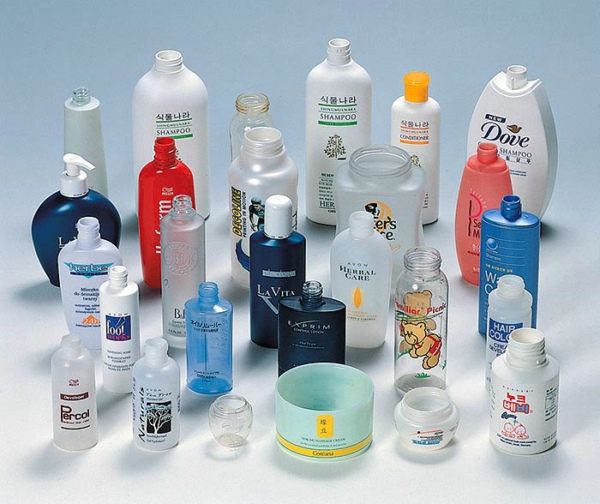

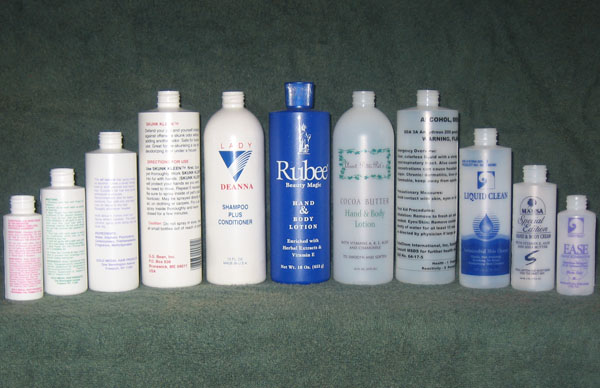

S-103 This auto printing press system is specially used for printing different patterns on the objects with round shape or oval shape. As it is made up of several individual units to form a printing chain, it can be used for the purpose of one-color printing. The materials to be printed can be plastic, glass, ceramics, metal, etc .
Specifications︰
1. Round Bottle:  4000PCS/HR
2. Oval  Bottle: 5000PCS/HR
3. Round Bottle Printing Diameter:20mm-100mm .Length:25-300mm
Oval Bottle Width :25-120mm.  Length:25-300mm
4. Compress air:5 Bar
5. Liqiud gas: 1.5Bar
6. Machine Size:5700mm*1200mm*1600mm
8. Unload Conveyor: 1700mm*500mm*700mm
9. Mainly power:380VAC/3-PHASE/50HZ/15KW
10.Gross Weight: 3050KG
Advantages︰
1.Full automatically printing suitable to print on various shades of cylindrical, elliptical and falt workpieces;
2.Coupled with auto workpiece feeding and loading system;
3.Flame treatment device adopted for re-treatment on PE or PP workpieces to get ultimate ink adhesion;
4.The function of workpiece placing in advance is built-in aiming on cylindrical or elliptical printing;
5.Electric sensor creates "no workpiece no printing" that leads to intelllgent monitor and smart control;
6.High quality UV curing system adopted to ensure fast ink drying and color registration;
7.High printing speed that up to 4000pcs/hr will bring you with high productivity;
8.Conveniently and easily fixture adjustment and change that save your valuable time;

9.Multi-sets of this machine can achieve 2-color, 3-color and even 4-color auto printing system..

Fully Automatic 3 Color Screen Printing Machine for Plastic Bottles

Fully Automatic 3 Color Screen Printing Machine for Plastic Bottles

Fully Automatic 3 Color Screen Printing Machine for Plastic Bottles
