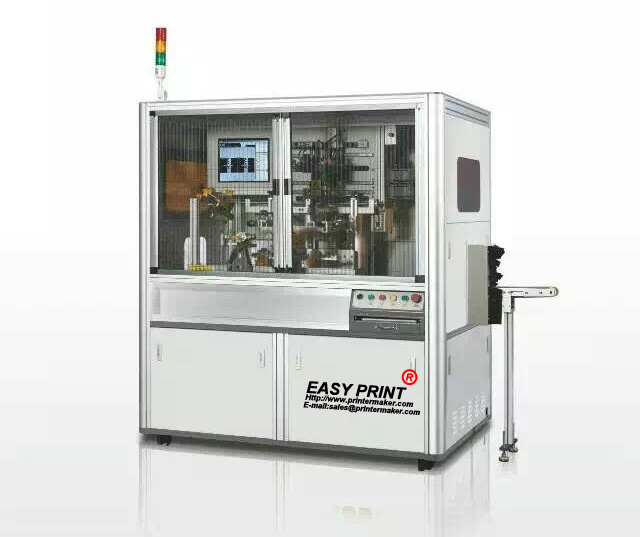

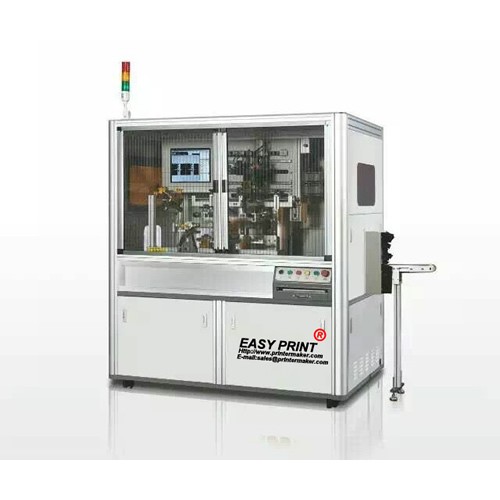

Full Servo Automatic Screen Printer on Two Sides Oval Nail Polish Bottles

Product name:Full Servo Automatic Screen Printer on Two Sides Oval Nail Polish Bottles

Model Number: AS-109

Description:
Full Servo Automatic Screen Printer on Two Sides Oval Nail Polish Bottles

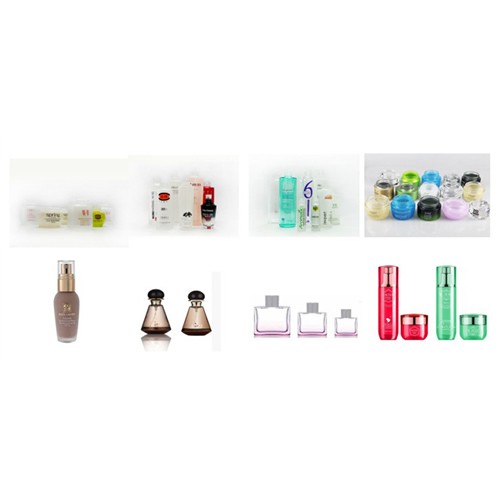

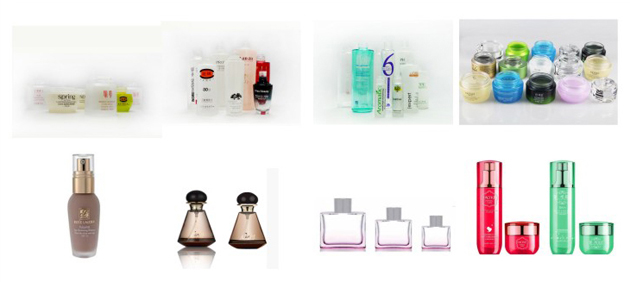

Full Servo Automatic Screen Printer on Two Sides Oval Nail Polish Bottles  is fit for printing multi sides on the surface of cylindrical,round, conial,oval,square, Rectangular, Diamond Phombus shape glass and plastic bottle's silk screen printing. This single color auto UV screen printer is special for cosmetic glass bottles printing,plastic cosmetic bottle's silk screen printing.The servo motor control is ideal for multi colors printing on glass bottles with high precision printing.
Parameters:
1:Max. Print Size:
For Round/Oval bottle: φ25-φ100mm length:25-180mm 
For Square or Irregular Shape: Lengh*Width:20mm-100mm; height: 30-180mm
2:Speed:
Round bottle:2400pcs/h.
Square bottle(one side):3000pcs/h.
Square bottle(multi sides):1500-2500pcs/h.
Oval bottle:2600pcs/min oval bottle(full round):1500-2000pcs/h
3.Air Pressure: 0.6-0.8Mpa
4.Power: 380V 3phase 50Hz 10Kw (220-240V,3P,60HZ optional)
5.Machine Dimension:1600*1100*1800mm
Features:
1: Adopted with Advanced Full Servo system PLC control system
2: High precision printing,for ova,square and Diamond Phombus bottle can be printed with full sides printing on one side.
3: UV ink drying system
4: It is module design, one module is
with one color printing, multi module can print multi-color.

5: The mechanical driven structure for assuring perfect working stability, easy exchange of different bottles tooling for assuring easy adjustment and simple operation.
