Cylindrical Screen Printer

Product name:Cylindrical Screen Printer

Model Number: 250AB

Cylindrical Screen Printer
Specifications:
1:Max. printing size:φ70x180mm  
2:Speed:2160PCS/H
3:Machine size(L x W x H):96x72x132cm 
4:Net Weight:135kg 
5:Air Pressure(bar); 5 
6:Power: 220V/50Hz,110V/60HZ 50w
7. Max printing speed: 1800Pc/Hr；
8:Packing size:950*850*1350mm /91*76*140mm
9.Gross Weight:220KG(Volume Weight)
Advantages:
1. Controlled by microprocessor easy operation running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame,low weight and high intensity,adjust convenient.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Pneumatic part of the installation of the JAPAN SMC Parts, Separate adjustment speed.
Application Scope:
250/AB Mini Computer screen printing machine which is suitable for precise printing substrates in Cylindrical, Conical and Oval forms which with smooth curve surface and made of various materials such as metal, plastic, ceramic, glass, wood etc.. Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, pots, oil-filter shell,plastic packing, glass bottles, stainless steel cups, Koozies, stadium cups, shot glasses etc.

Printing Sample:

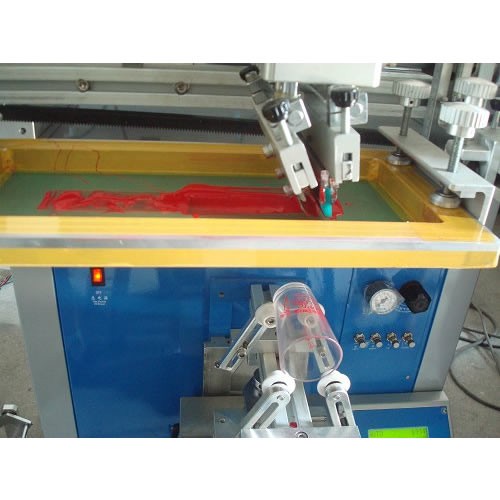

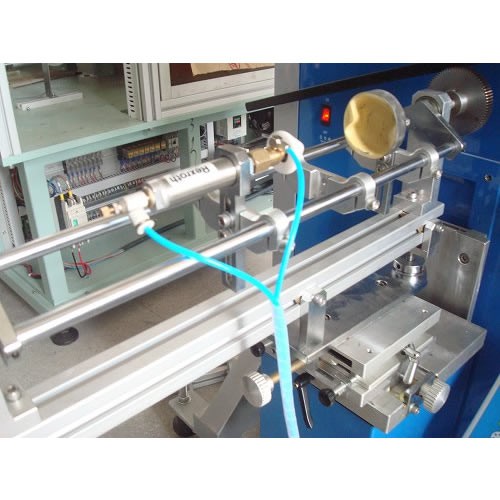

Product Detail:

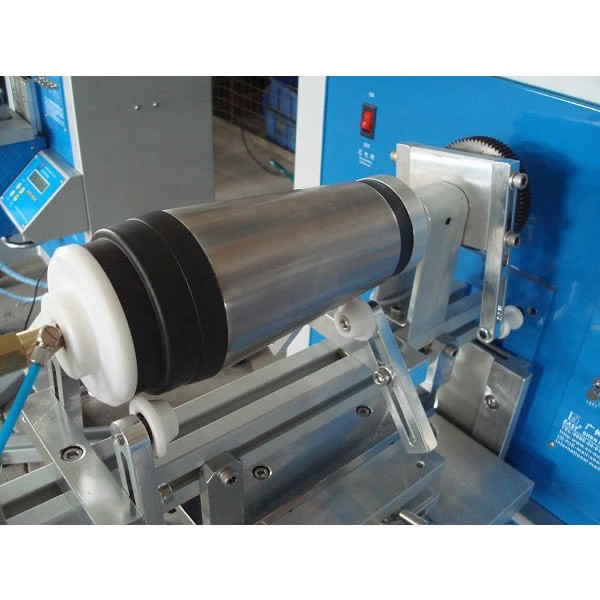

Fixture Tools:

Screen Printing Machine Working Room:
