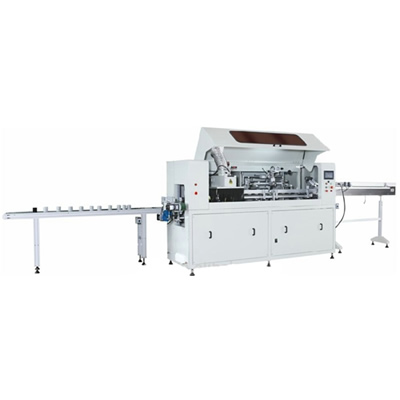

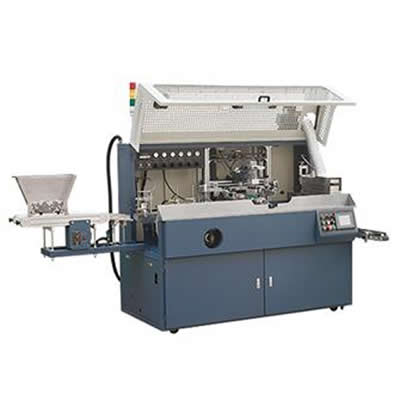

Wine Caps Automatic Screen Printing Machine

Product name:Wine Caps Automatic Screen Printing Machine

Model Number: SCUV-12

Description:
Cosmetic Jar Automatic Screen Printing Machine
Model:STUV-02
Printing Size: Φ（25-50）×（25-70）
Printing Speed:60PCS/min
Pressure:5-7Bar
Net Weight:1120KG
Machine Size:234*185*180CM
Voltage:AC380V 50/60HZ 5KW
Features:
1. This machine could adopt by the screen printing scheme for single color products in cream bottle industry, bottle cover industry, soft-tube industry and so on. This machine is featured with intellectual functions, such as automatic loading, pre-printing treatment, UV curing and so on.
2. The original accessories are introduced by the world famous bland, such as Schneider, Rexroth from the Europe, and SMC, Mitsubishi, Omron from Japan. The machine frame and the key spare parts are all manufactured by the CNC in the factory.
3. This machine is controlled by the man-machine dialogue (PLC, touching screen) with easier fixture changing and the automatic up-and-down printing head.
4. This machine is also characterized with no product no printing, printing quantity counting, abnormal alarming.

5. This machine has more characteristics, such as automatic loading and offloading with mechanical arm, servo with right-and-left position, stepping with forward-and-backward position, pre-printing treatment. What’s more, the client could customize the automatic loading, material management system (bottle cover) and other customized requirements.

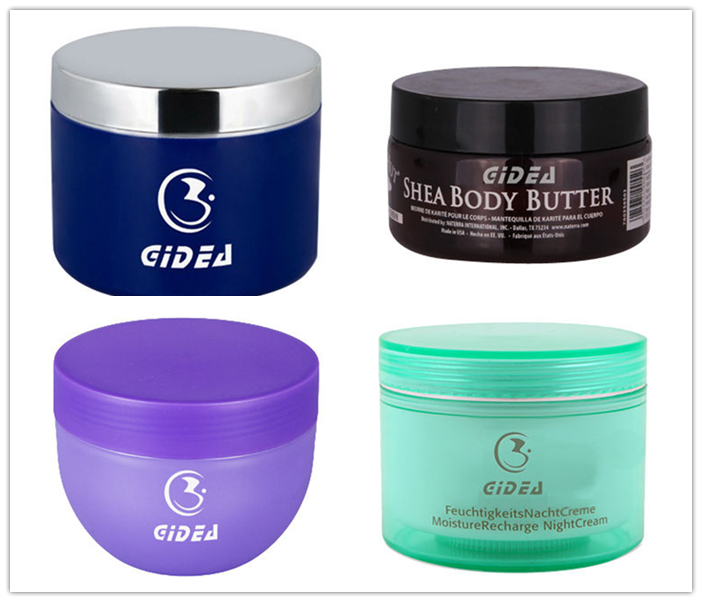

Printing Samples

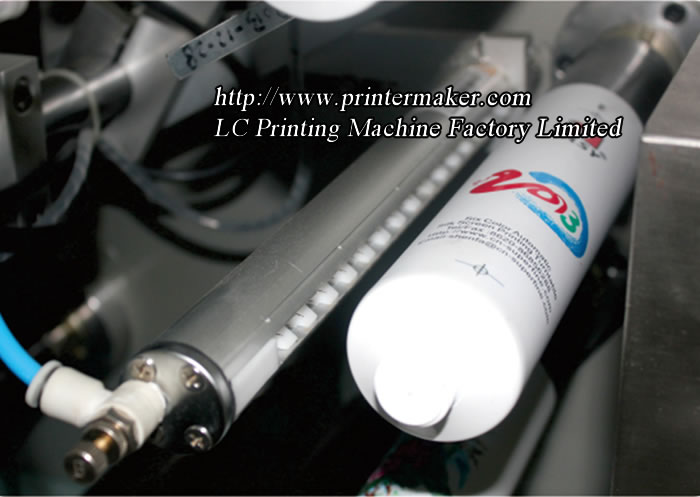

Anti-static System

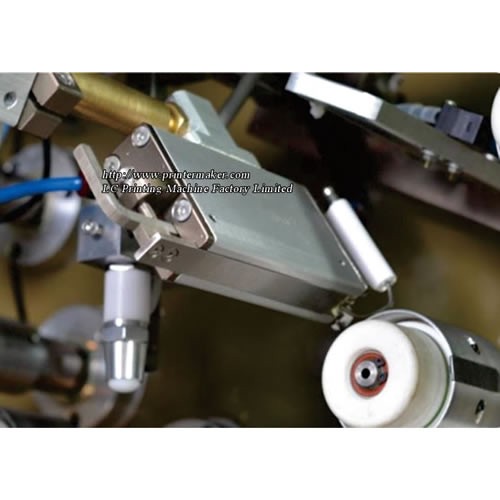

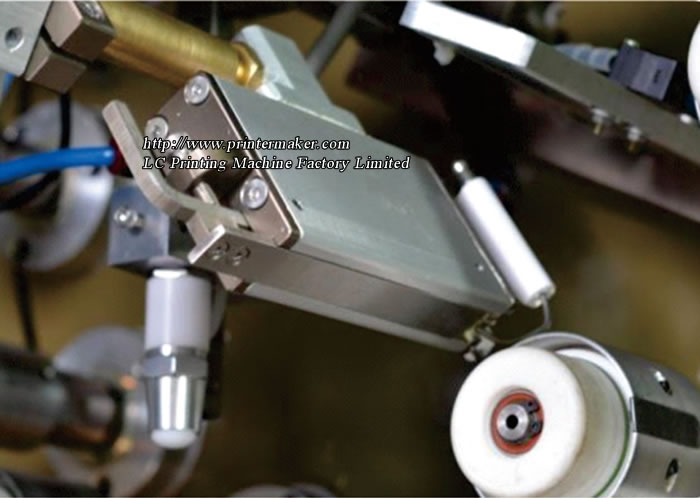

Flame Treatment System

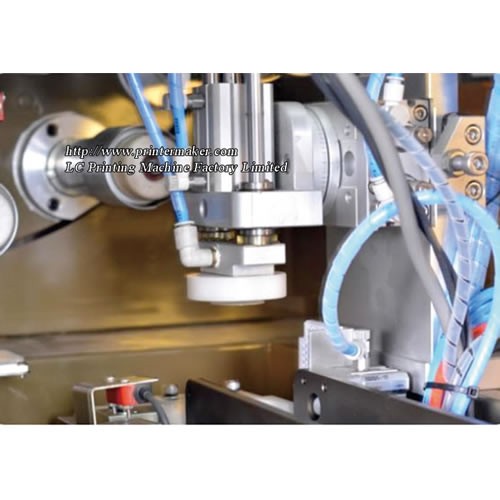

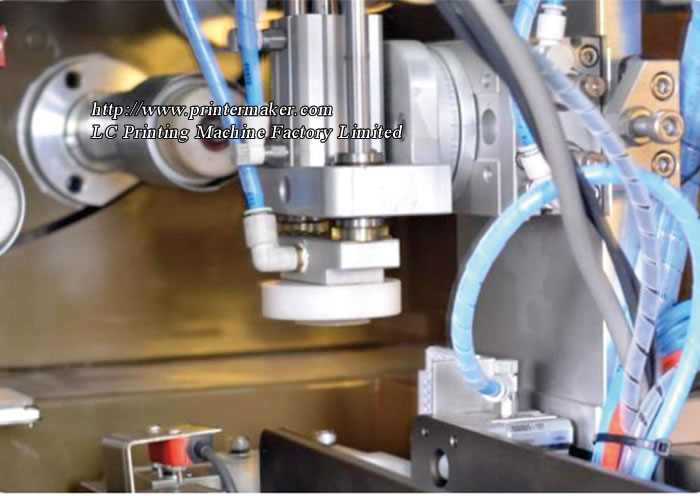

Mechanical Registration

90 Rotating Loading And Unloading

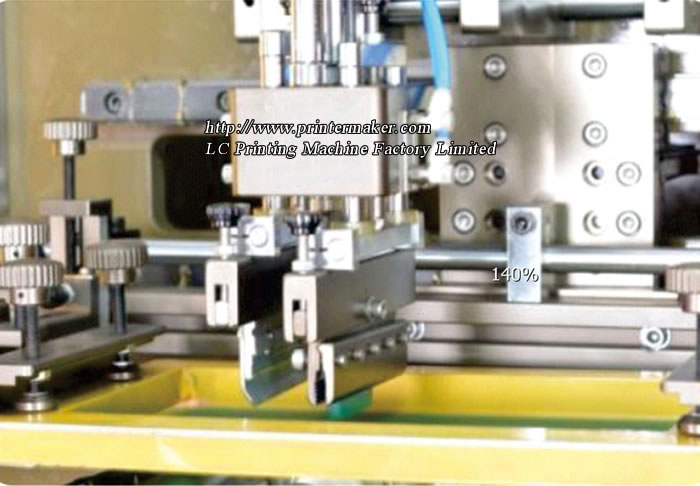

Screen Printing System

Servo Registration System
