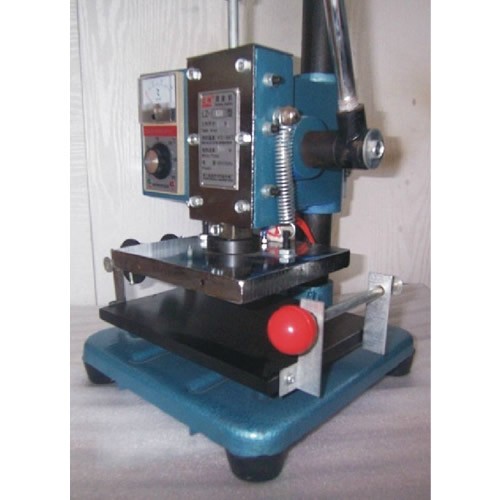

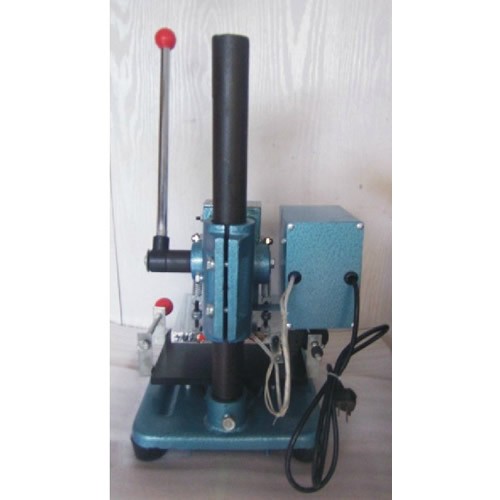

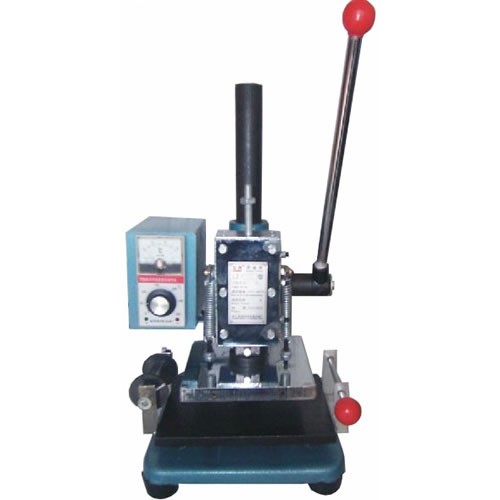

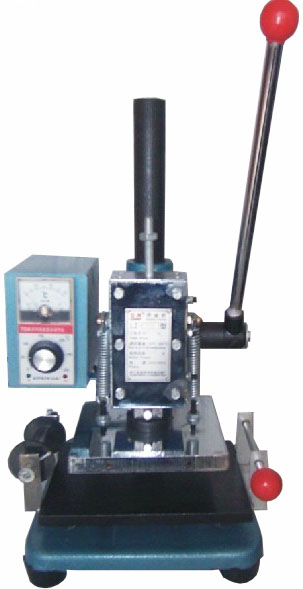

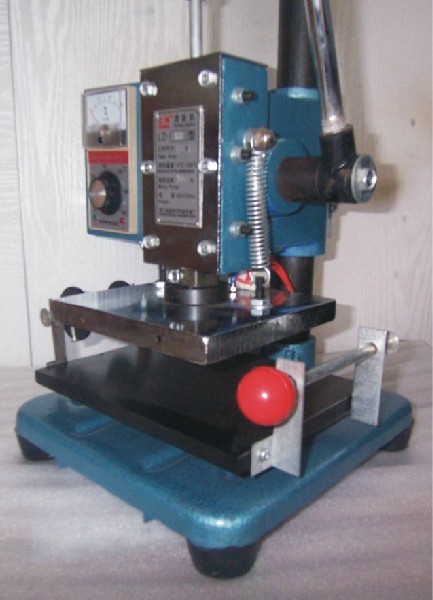

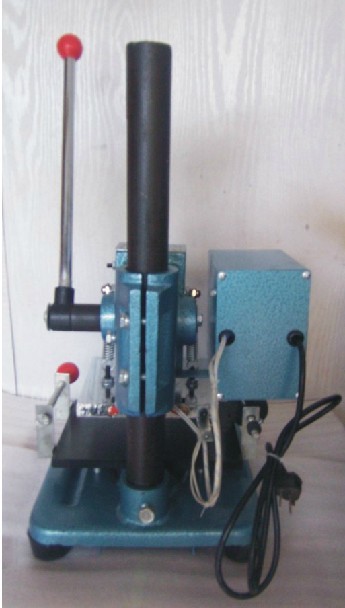

China Manual Plane Hot Stamping Machine

Product name:China Manual Plane Hot Stamping Machine

Model Number: EASY-H170

Description:
China Manual Plane Hot Stamping Machine
Product description
Manual operating hot foil stamping machine are suitable for small area stamping of various materials and have the advantages of dual pressing mechanism ,as pens ,plastic toys , name card ID card etc. And quick heating making the stamped patters clear with third dimension.
Characteristics
1. Manual stamping, auto foil feeding, without compressed air, leads to easy operation.
2. Stamping temperature adjustable range from temperature 60Cto 300C.
3. The height of the stamping head adjustable accordingly
Parameter
1. Name: EASY-H170 Manual Plane Hot Stamping Machine
2. Model:EASY-H170
3. Product shape:Plane
4. Impression area: 160×150mm((6.29"x5.9")
5. Power:220V/110V, 50/60Hz
6. Electrothermal Power::500W
7. Operation:manual(60C-300C)
8. Stamping speed: 400 PCS/H
9. Machine Outline Dimensions:280×280×620mm
10.Machine Weight:28KG
Application
In theory, manual,pneumatic and hydraulic hot stamping machine have the same Principle,that is to say the object will be hot stamped by the same way of heat tranfer by the machine. One difference is there have 2 types: manual and automatic;Another is the different size of the stamping pattern.Manual was fit for the object with low requirement effect and small stamping area.To the contrary, the first-class effection and large stamping area will be done by both pneumatic and hydraulic.What is more,they are fit for stamping the object with high quality.In a word, hot stamping machine can transfer the color from stamping foil to the object by heat press in a high temperature.
Price Terms : FOB Guangzhou
Payment Terms : Western Union ,T/T or L/C
Packing : Wooden case
Lead Time : Within 3 days
Standards Certificate : ISO9001-2000,CE
Machine Fittings:
1.One set of tool
2.One Manual in English
Ship Date
1.By sea
within 30 days after receive remittance
2.By air
within 6 days after receive remittance
Warranty

1.Machine can be changed for free within 3 monthes,freight collect.
