Aluminium Screen Printing Frames

  • Model Number: SFS
  • Product price: US$:negotiated
  • Category: Screen Printing Consumables
  • Views: 8473
  • Product Description:Aluminium Screen Printing Frames
  • PRODUCT DETAIL
  • Video

Product name:Aluminium Screen Printing Frames

Model Number: SFS

Description:

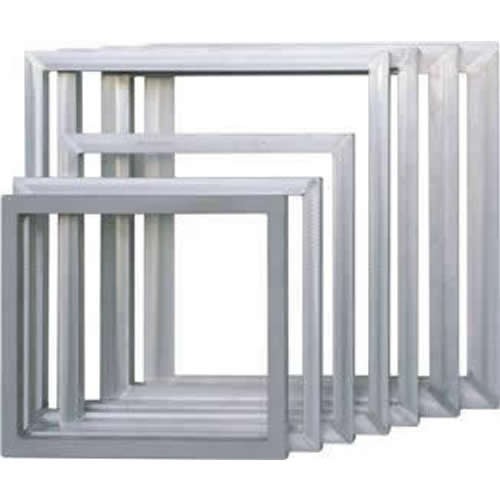

Aluminium Screen Printing Frames
Specifications
The aluminium screen printing frame is improtant part in making screen process
Application
1:Aluminum screen printing frame, this T series aluminum frames can fulfill customers' needs and are welded for great mesh adhesion. All corners are completely sealed to prevent ink from leaking. One side is specially prepared to make fabric adhesion fast and easy. Optional corner reinforcement is available for any frame size. Larger aluminum extrusions help eliminate frame distortion. Surfaces are anodized for maximum strength and durability.
2:Aluminum bars are designed for international customers basically. Especially for textile screen printing industry of North American and West Europe markets. And all frames are welded by MILLER Welding Machine of the U.S.A. It's the best choice for use on automatic textile screen printing machine or manual carousel.
Size:
Frame profile          screen frame Size
1:25 x 25 x 1.0mm             300 x 400mm
2:25 x 25 x 1.3mm             400 x 500mm
3:30 x 30 x 1.0mm             400 x 450mm
4:30 x 30 x 1.3mm             500 x 650mm
5:25 x 40 x 1.0mm             400 x 450mm
6:25 x 40 x 1.1/1.2mm       450 x 500mm
7:25x 40 x 1.4mm              600 x 800mm
8:25 x 40 x 1.5/1.8mm        600 x 1000mm
9:22/28x 45 x 1.25              600 x 800mm
10:25/29 x 50 x 1.3mm       800 x 1000mm
11:35/40 x 70 x 1.8mm       1000 x 1200mm
12:30/35 x 70 x 1.8mm       1000 x 1200mm
13:40 x 80                         3200 x 2150
14: 45 x 100                      3200 x 2150

Accept customer's special size of screen frame request
