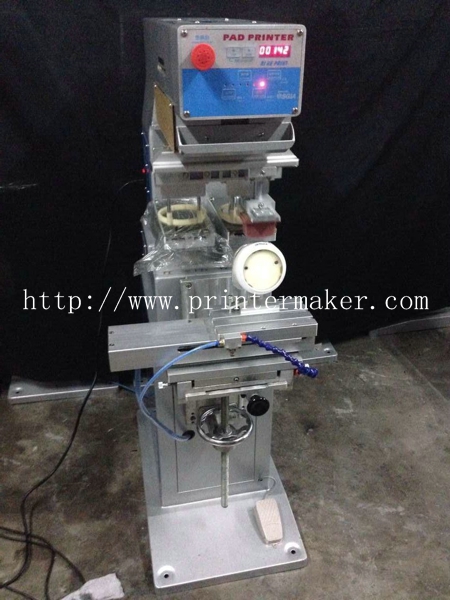

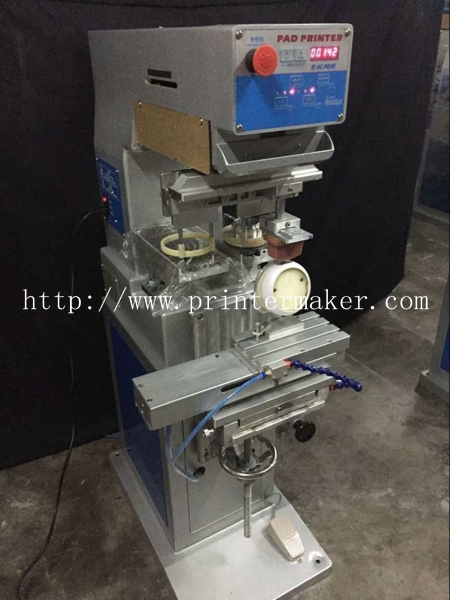

2 Colors Ink Cup Tampo Printer with Shuttle Table

Product name:2 Colors Ink Cup Tampo Printer with Shuttle Table

Model Number: EP2S-150T

Description:

Price:2500USD

Economy 2 Color Ink Cup Tampo Printing Machine with Shuttle Working Table
EP2S-150T Ink cup Two Color Pad Printer can ensures environmental, safe, it is comply with CE Starderand, ease operateing, to consume ink that frugal. Help to reduce any solvents evaporating from the ink too quickly and also helps to keep the ink at a constant temperature.
THIS ITEM PAD Printer to fit pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package products, bos, , hosehold, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.

1. Controlled by microprocessor, easy operation, running stably and accurately.

2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the inkfrom drying.

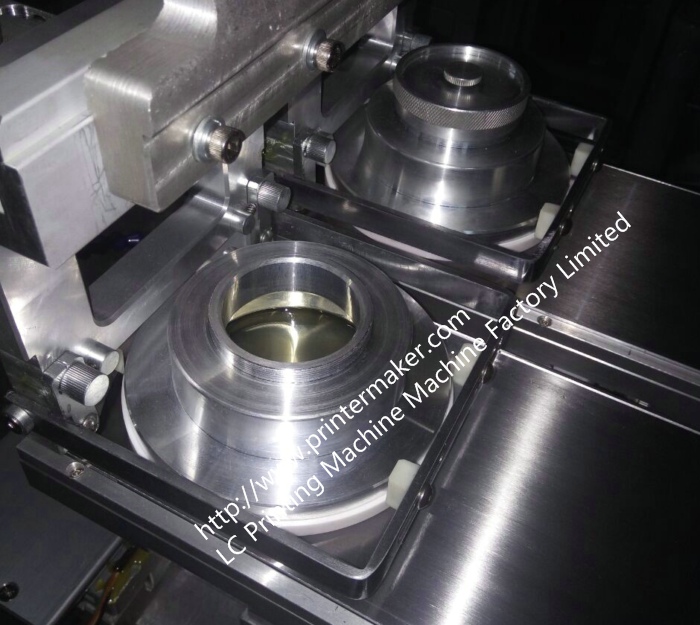

7. ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.

1. Model No:EP2S-150T(Table Shuttle)
2. Operation: Pneumatic
3. Printing Colors: 2
4. Max. Printing area: 80*135mm
5. Plate area: 100*250 mm
6. Sealed ink cup diameter: 60 or 90 mm
7. Max printing speed: 1400PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 80×53× 135cm
11. Machine weight: 110kg

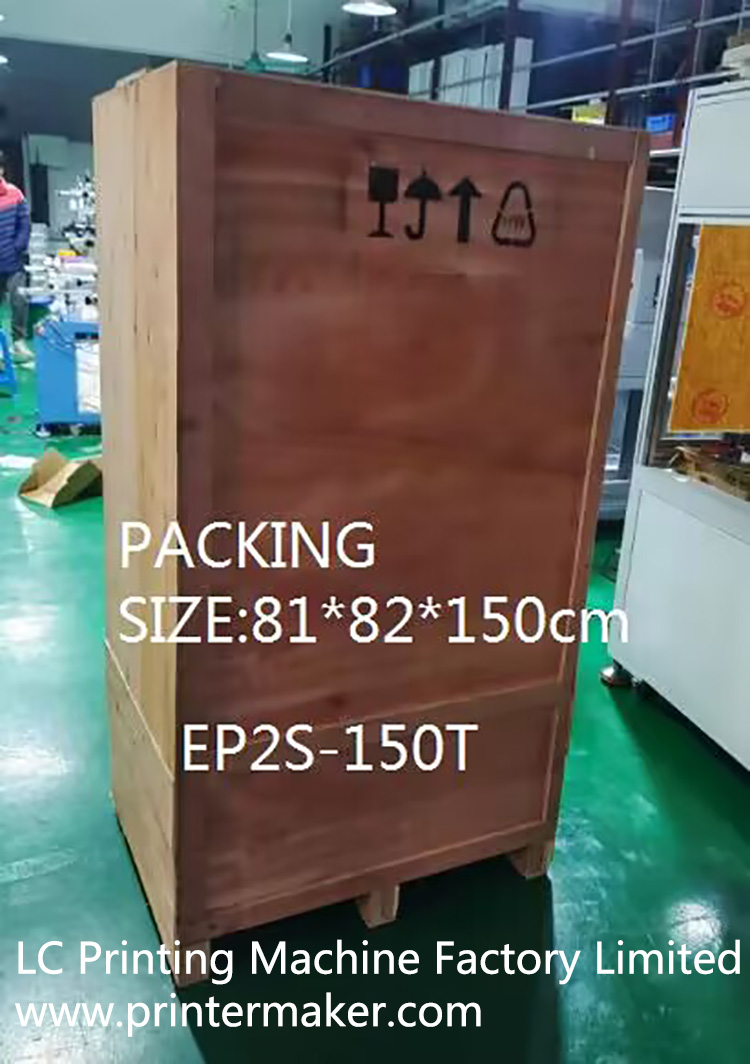

12. Packing size:81*82*150cm
13. Goss Weight:150KG

1. Model No:EP2S-150T(Rubber Pad Shuttle)

2. Operation: Pneumatic
3. Printing Colors: 2
4. Max. Printing area: 80*135mm
5. Plate area: 100*250 mm
6. Sealed ink cup diameter: 60 or 90 mm
7. Max printing speed: 1400PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 80×53× 135cm
11. Machine weight: 110kg
12. Packing size:81*82*150cm
13. Goss Weight:150KG

Large Printing Size Ink Cup Pad Printing Machine
Specifications:
1. Model No:EP2S-150TL
2. Printing Colors: 2
3. Plate area: 150*300mm
4. Max Printing area: 120*130mm Ink Cup Diameter: 130mm/140mm
5. Max printing speed: 1400PCS/H

6. Printing Wattage: 220V/ 50Hz 110V/60Hz
7. Air pressure: 0.4-0.6Mpa
8. Machine size: 100*70*150cm
9. Packing Size:110*80*165cm
9. Packing Size:100*60*160cm
Machine fitting:
1. Two pcs steel plate
2. Two pcs rubber pad

3. Work box

4. English operating instruction
